Economy Wireless Ethernet Bridge Built in 15dBi Antenna with Double RJ45 port

  • Economy Wireless Ethernet Bridge Built in 15dBi Antenna with Double RJ45 port
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST5812H
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation OFDM Working Frequency 5.125-5.850GHz
Standard IEEE 802.a/n RF Power Max 23dbm (500mW), Adjustable By Software
Antenna Gain Dual Polarization 15dBi Net Weight 292g
Gross Weight 723g Dimensions 9*6.4*24.7cm
High Light

wireless lan bridge

,

point to point wireless bridge
Leave a Message
Product Description

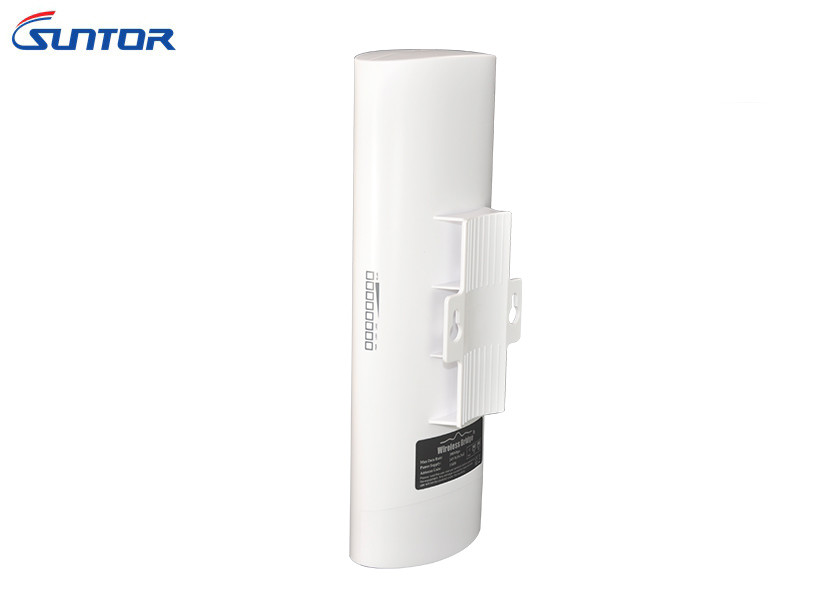

Economy Wireless Ethernet Bridge Built in 15dBi Antenna with Double RJ45 Port



ST5812H follows 802.11an protocol and operates in 5GHz band It has wireless routing and bridge functionality to provide high-performance wireless relay links for WLAN base stations with higher transmission rates and farther distances. Supporting for various network functions makes ST5812H suitable for a variety of application scenarios.



Easy installation and brief configuration interface makes ST5812H can quickly deploy and begin services. CPE series products are positioned to solve the WLAN weak coverage area or edge area of the terminal access problems Meanwhile to maximize the coverage of the WLAN base station. ST5812H has 500mW transmit power and 15dBi high gain built-in antenna, which makes the terminal transmit power can cover large coverage.



Features

  • Brief English operation interface

  • Built-in 15db 5Ghz dual-polarized antenna

  • Transmit Power up to 23dBm

  • Receiving sensitivity up to -100dBm to guarantee long range and high quality signal transmission.

  • Ethernet port support auxiliary backup use or independent use



Specification

Item

Description

Hardware Parameter



Interface

2*10/100M Ethernet port

1* Main Ethernet port

1*Sub Ethernet port

POE power supply

Indicator light

Power state light

4 grade signal strength light

LAN light

MODE light

Working frequency

5.125-5.850GHz

Core

AR9344

Standard

IEEE 802.a/n

RF power

Max 23dbm (500mw), Adjustable by software

Rate

Max 300Mbps

Modulation

802.n: 2x2MIMO

802.a: OFDM, 6Mbps-95dBm

801.n MCS0:-88dBm

MCS7: -73dBm

Antenna

Dual polarization 15dbi

Horizontal: 60 degree

Vertical: 15 degree

Reset

Support

RAM

64MB

FLASH

8MB

Size

9*6.4*24.7cm

Weight

0.29Kg

Packing size

36*14*7.5cm

Packing weight

0.72kg

Input voltage

Wide voltage input DC 11V-24V

Power

≤8W

Waterproof grade

IP66

Working temperature

-20℃～+65℃

Saving temperature

-40℃～+80℃

Working humidity

0～100%

Item

Description

Software Parameter

Working mode

Route mode: Clients instead of all terminal approve

Bridge mode: Individual approve for each clients

Network protocol

PPTP, L2TP, IPsec

PPPoE

DHCP Client/Server

NAPT, NTP

VLAN setting

Wireless function

Nearest station sense/ Channel scan

Prior AP setting (BSSID)

Auto channel select

Security policy

Encryption: -WEP,TKIP,AES

Wireless safety:

Open system, share ID key

WPA/WPA-PSK

WPA2/WPA2-PSK

802.1x(PEAP,TLS,TTLS)

WAPI

Approve function:

WEN account/ password

PPPoE

Route mode

Clients instead of all terminal approve

Bridge mode

Individual client approve

Multi-clients with individual potal approve

Network protection

firewall

Support network rate-limiting

MAC address visiting control

System service

Support virtual DMZ, port forwarding.

Support UPnP auto port map

Support VPN unvarnished transmission(PPTP, L2TP, IPSec)

WDS

Support

Configuration management

Based on WEB, CPE built-in WEB server

Remote software update(HTTP)

Support Telnet connect

Support syslog system record

Support SSH service

Fault diagnosis

Auto network state detection, Re-connect when cut off
