Outdoor Point To Point TDMA Wireless Lan Bridge 5 GHz , External Antenna Antenna Type

  • Outdoor Point To Point TDMA Wireless Lan Bridge 5 GHz , External Antenna Antenna Type
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation TDMA Frequency Range 5120~6060MHz
Transmit Power 25dBm Antenna Type External Antenna
Wireless Mode PTP And PTMP Transmission Range 30-50km (LOS)
High Light

wireless lan bridge

,

point to point wireless bridge
Leave a Message
Product Description

Outdoor 5 GHz Long range 50km Point to Point TDMA wireless Lan Bridge



Used to transmit wireless microwave remote wireless surveillance video / audio signal, image transmission, while transmission Each one or two channel audio signal, work,data rates 40Mbps. Transmission distance according to customer requirements up to 50km, with relay afraid of occlusion. ST5023TD long-distance microwave image transmission system,System can transmit high-resolution real-time video images, transmission distance popularity in the industry praise.



Main Features:

  • Anti-Interference for Rural Connectivity Platform.

  • Up to 40Mbps up 50km connection.

  • IP68 rated enclosure for dust and water protection.

  • Wireless TDMA transmission technology, broadband networks can be adjusted automatically according to the load conditions.

  • Best choice for multiple IP camera transmissions under PtP modeThe the Transmission distance up to 50KM.

  • Can be used in backbone network transmission.

  • This product of good choice among the engineering, the signal is very stable.



Parameters

Standards Compliance IEEE 802.11 silicon to non-standard; IEEE 802.3; IEEE 802.3u; IEEE802.3af
SDRAM 64M Byte
Flash 16M Byte
Radio Frequency Type Proprietary 5GHz based on 802.11a OFDM
Modulation 64QAM 3/4, 64QAM 2/3, 16QAM 3/4, 16QAM 1/2, QPSK 3/4, QPSK 1/2, BPSK 3/4, BPSK 1/2
Frequency Band 5120~6060MHz
Transmission Power 300mW ( Adjustable output power )
Types of chips Atheros AR5414(USA) CPU:Intel
Access Point Interfaces Auto sensing MDI/MDI-X Ethernet 10/100Base-TX: RJ-45
Sensitivity -92dBm @ 6Mbps; -72dBm @ 54Mbps, PER < 10%
Antenna Type N-type external high gain antenna
Security Systems AES 256-bit encryption
Wireless Setting

Operation Mode –Wireless PtP Bridge

Channel Bandwidth adjustable 5/10/20/40 MHz

Adjustable transmit power
Software/Firmware

Support Spanning Tree settings

Web-based configuration via popular browser (IE, Netscape, Google Chrome)

Windows tool for view and find device

Firmware upgrade and configuration backup/restore via Web

802.1Q VLAN pass-through

Real time local and remote link test tools RSSI (5 LEDs)

EventLog

Remote Log Server

SNMP v1/v2c

MIB support: MIB I, MIB II (RFC-1213) and Private MIB

Support Time settings

Hardware Watch dog
Operating Environment Operating Temperature: -30 ~ +70°C
Power DC 48 Volt ± 5%; 0.83A (Max.)AC adapter AC 100V ~ 240V
Network ManagementSystem OS Support Windows 2000/ XP/ Vista /Windows 7
Warranty One year limited

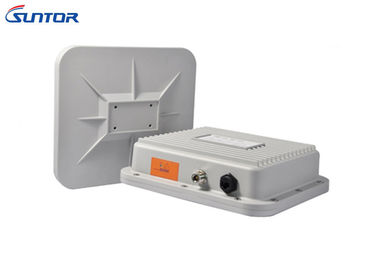

Outdoor Point To Point TDMA Wireless Lan Bridge 5 GHz , External Antenna Antenna Type 0
