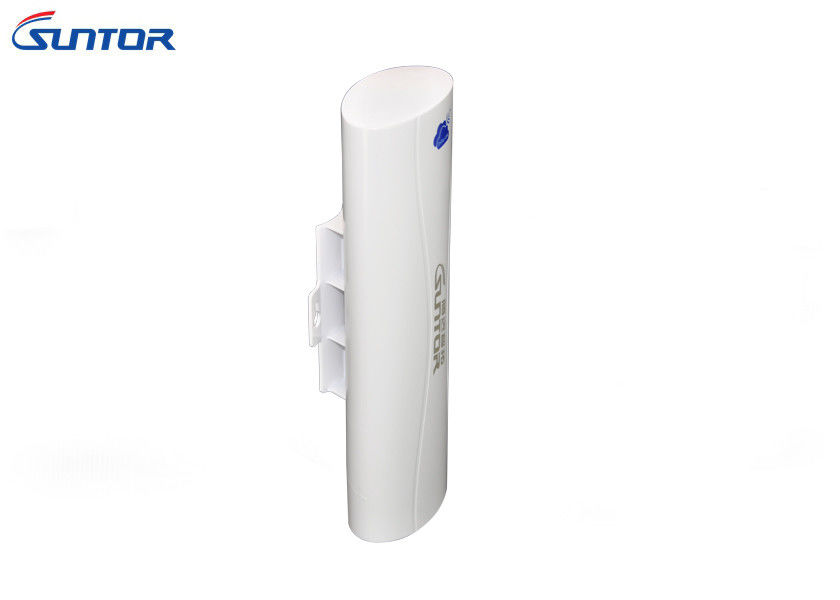

1km 5Ghz Wireless Ethernet Bridge CCTV Transmitter / Bridge / CPE / Links

  • 1km 5Ghz Wireless Ethernet Bridge CCTV Transmitter / Bridge / CPE / Links
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST5812H
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 5Ghz Antenna Built-in 15db 5Ghz Dual-polarized Antenna
Color White Interface 2*10/100M Ethernet Port
Chip AR9344 Standard IEEE 802.a/n
RF Power 23dbm (500mw) Rate 300Mbps
Weight 0.5kg/Piece
High Light

wireless lan bridge

,

point to point wireless bridge
Leave a Message
Product Description

1km 5Ghz Wirleess CCTV Transmitter/Bridge/CPE/Links



Data Sheet



User Manual



Features:



  • Built-in 15dBi directional dual-polarized antenna, support antenna signal calibration
  • High Transmission Power up to 23dBm and enhanced sensitivity performance
  • High Speed Data Rate Up to 300Mbps 2T2R, the transmission signal is strong and stable
  • Built-in Software Detects Surrounding Frequency Interference, use the best channel to transmit stable
  • Support PoE, Passive PoE24V
  • IP66 Weatherproof casing and grounding terminal



Technicals:



Chipset Atheros AR9344
DRAM DDR 64MByte
FLASH 8MByte
Ports 10/100Mbps WAN*1 LAN*1
Data Speed 11b: 11M,5.5M,2M,1Mbps
11g: 54M,48M,36M,24M,18M,12M,9M,6Mbps

11N:6.5M,13M,13.5M,19.5M,26M,27M,39M,40.5M,52M,

54M,58.5M,65M,81M,108M,121.5M,135M,150M,270M,300Mbps
Transmit Mode DSSS
Modulation Mode OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Standard IEEE802.11n,IEEE802.11g,IEEE802.11b,IEEE802.3u,IEEE802.3af
Support CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5
Frequency 2312~2732MHz
Power ≤3W
Power Adapter POE 24V 1A

RF Power

@25℃±2dB

 802.11b 18±2dBm
802.11g 6-24Mbps 17±2dBm
36-48Mbps 16±2dBm
54Mbps 15±2dBm
802.11n HT20 MCS7 14±2dBm
HT40 MCS7 14±2dBm
sensitivity IEEE 802.11b 11Mbps≤ -85dBm
IEEE 802.11g 54Mbps ≤ -70dBm
IEEE 802.11n HT20 MCS 7 ≤ -65dBm
HT40 MCS 7 ≤ -62dBm
Antenna Frequency 2300~2800MHz
Polarization Horizontal/ vertical
Gain 14DBi
Management WEP Management Support
SNMP MIB Support
Telnet Support
Serial Support
Security MAC Address Control Support
Encryption WEP Encryption 64/128bits, WPA, WPA2, 802.1x
Environment Working Temperature -30~65℃
Storage Temperature -50~80℃
Humidity(Non Condensing) ≤95%(Non Condensing)
