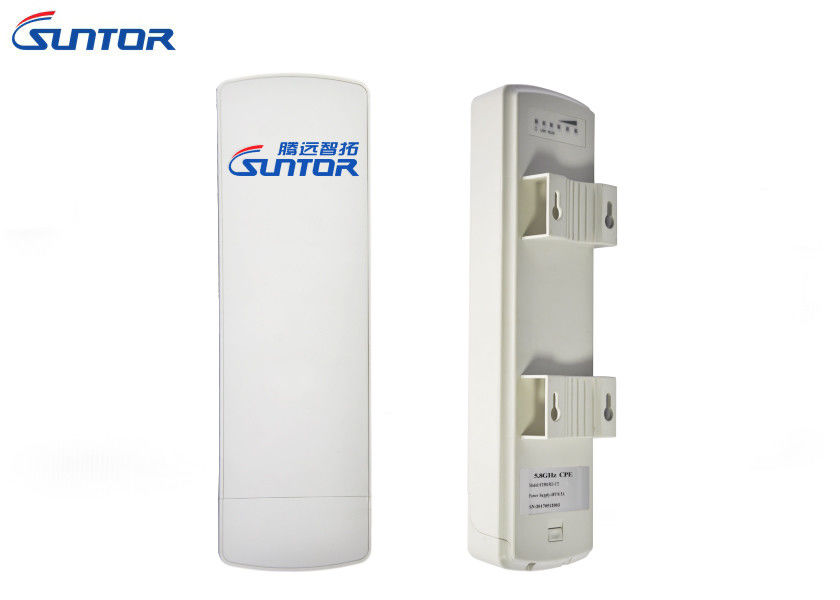

3KM PTP PTMP 5.8G 300Mbps Hi - power Wireless Radios Outdoor CPE 27dBm

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST5815E-BPS
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS Modulation TDMA
Standard Built-in 15db Antenna(H: 40° V: 15°) Frequency 5745-5825MH(4920-6100MHz Option)
RF Power 27dBm Voltage 24V POE
Indicator Power/LAN/WIFI/Signal Strength Dimension 270*82*30(mm)
Highlight

wireless lan bridge

,

point to point wireless bridge

Leave a Message
Product Description

3KM PTP PTMP 5.8G 300Mbps Hi-power Wireless Radios outdoor CPE



Data Sheet



User Manual





Main Features:



1. Using high-performance 802.11n 2X2 MIMO chip, the
maximum rate of up to 300Mbps
2. Support five kinds of work modes: access point, client,
WDS access point, WDS client, WDS repeater
3. Using TDMA, intelligent rate control, automatic ACK
timeout adjustment and other technologies
4. TDMA protocol to overcome the inherent hidden
node problems in 802.11, making the product has a
better long-distance, point to multipoint performance
5. Support PTP and PTMP
6. Unique antenna, radio frequency amplifier, low noise
receiver design, to ensure long-distance video, voice and
data transmission
7. Customize frequently used scenes and modes for users to facilitate the use and assembly of
non-wireless professionals
8. Unique TDMA technology to maximize the use of bandwidth resources to better support
point-to-multipoint data transmission
9. POE power supply, support the international common 802.3af standard
10. Support remote control and management through the web to facilitate the configuration
11. Waterproof anti-UV shell to ensure the stability of the equipment in the outdoor work





Technicals





  Item Specs
RF Standard IEEE802.11 a/n(2T2R 300Mbps)
Frequency 5745-5825MH(Supports frequency expansion, extended range: 4920-6100MHz)
Modulation 802.11 a/n: OFDM
Antenna Built-in 15db Antenna(H: 40° V: 15°)
RF Power 27dBm
Receiving Sensitivity

11n: -72dBm@65Mbps

11a: -94dBm@6Mbps

Transmit Rate

11n:13.5/15/27/30/40.5/45/54/60/81/90/108/120/121.5/135/

150/162/180/216/240/270/300Mbps(40M Bandwidth)

130/117/104/78/65/58.5/52/39/26/19.5/13/6.5Mbps(20M Bandwidth)

Hardware Voltage 24V POE
Interface POE
Indicator Power/LAN/WIFI/Signal Strength
Operating Temperature -30℃~+70℃
Storage Temperature -40℃~+85℃
Operating Humidity 5%~95%RH non-condensing
Dimension 270*82*30(mm)
Software Encryption 802.1x/WPA-PSK/WPA2-PSK
Network Routing/Bridging
Working Mode Access Point / Client / WDS Access Point / WDS Client / WDS Repeater
Security IP / MAC address filtering, hide the network name
Networking Protocol TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP
TDMA Enhanced Support (TDMA eliminates the impact of hidden nodes, greatly enhance the one-to-many performance)
Automatic ACK timing adjustment Support (automatic optimization of parameters in long-distance communication, the best performance)
Management and log NTP, SNMP, Syslog, Telnet, AC
Web page configuration management Support web configuration, support AC remote configuration, support SNMP management
Firmware Update Support web update, support AC remote upgrade
Bandwidth flexible configuration 5M/10M/20M/40MHz





Application
