​5.8G Short Range Wireless Ethernet Bridge Weatherproof For PTP PTMP IP Transmitting

  • ​5.8G Short Range Wireless Ethernet Bridge Weatherproof For PTP PTMP IP Transmitting
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST5817H
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation OFDM Range 2-3km
Signal Video, Audio, Internet Data Weight 500g
High Light

Short Range Wireless Ethernet Bridge

,

Weatherproof Wireless Ethernet Bridge

,

​5.8G Short Range Wireless Ethernet Bridge
Leave a Message
Product Description

5.8G Short Range Wireless Ethernet Bridge for PTP / PTMP IP Camera Transmitting



Specifications

SYSTEM INFORMATION
Processor Atheros AR9342 (560MHz)
Memory Size 64MB DDR2
NOR Flash 8MB (max 16MB optional)
LAN Interface 2 FE ports with Auto-MDI/X
Antenna Integrated 5GHz 17dBi directional dual-polarization antenna
Power Consumption 5.5 Watts
Power method Passive PoE
RoHS Compliant Yes
Humidity

Operating: 5% to 95% (non-condensing)

Storage: Max.90% (non-condensing)
Temperature Range

Operating:-20ºC to 70ºC

Storage: -40ºC to 90ºC

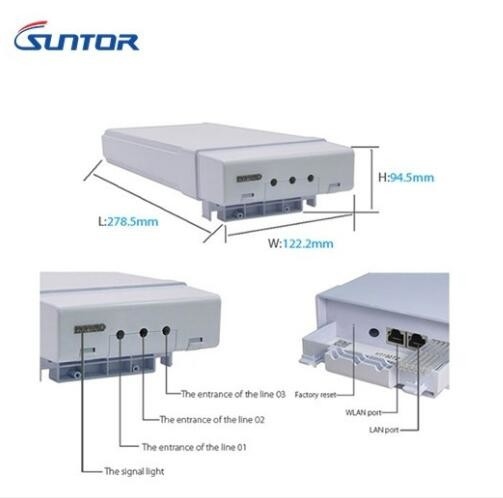

Dimensions (H x W x D) 278.5 x 122.2 x 94.5 (mm)



Connections data
Max of clients encryption 100
Max of concurrent associations TCP, each station upload and download randomly from 384Kbps to 768Kbps UDP, each station upload and download 2Mbps
WPA2-PSK 40 20
Transmit Power & Receiver Sensitivity

Transmit

Powe

 Data Rate 5GHz (aggregate)
HT20 MCS0 25dBm
HT20 MCS7 19dBm
HT40 MCS0 24dBm
HT40 MCS7 19dBm

Receiver

Sensitivity

 Data Rate 5GHz
HT20 MCS0 -94dBm
HT20 MCS7 -77dBm
HT40 MCS0 -93dBm
HT40 MCS7 -75dBm

17dBi@5GHz dual-polarization antenna

Gain 17dBi
Radiation Directional
Frequency Range 5.1-5.9 GHz
Polarization Dual – Polarization
Azimuth -3dB Beamwidth

Horizontal(Port 1): 30 degrees

Vertical(Port 2): 33degrees
Elevation -3dB Beamwidth

Horizontal(Port 1): 17 degrees

Vertical(Port 2): 17degrees
Isolation -40dB (Max)
Front-to-Back Ratio -30dB (Max)
VSWR Horizontal (Port 1) : < 1: 1.87; Vertical (Port 2): < 1: 1.55
Cross Polarisation Isolation -28dB (Max)
SideLobe <-12dB


Features

  • IEEE 802.11b/g/n compliant
  • Atheros 560MHz Networking Processor
  • Up to 26dBm output power
  • Up to 300Mbps physical data rates
  • Enhanced sensitivity performance
  • Built-in 17dBi
  • 5GHz dual-polarization antenna
  • Antenna Alignment Signal Survey
  • Distance Adjustment for long range transmission
  • Passive PoE
  • Weatherproof casing



​5.8G Short Range Wireless Ethernet Bridge Weatherproof For PTP PTMP IP Transmitting 0
Application



1. Point to Point, Point to Multipoint wireless Communication
2. Wireless CCTV Video Surveillance
3. Enterprise Wireless LAN interconnection
