Outdoor Digital Wireless Ethernet Bridge OFDM Modulation 5.8GHz 8km

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Modulation | OFDM | Frequency | 5150-5825MHz |
---|---|---|---|
Transmit Power | 29±2dBm | Wireless Mode | PTP And PTMP |
Support Range | 5-8km(LOS) | Operation Temperature | -30°C~ +70°C |
Function | Audio Video And Network Signal | ||
High Light | Digital 5.8GHz Wireless Ethernet Bridge,OFDM Modulation Wireless Ethernet Bridge,8km Wireless Network Bridge |
Product Description

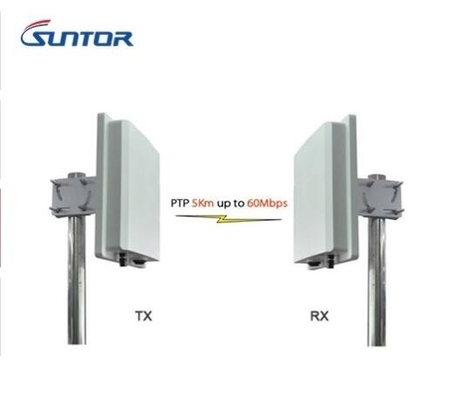

5.8GHz 5-8km outdoor digital wireless ethernet bridge
Model | ST58T8G |
Standards Compliance | IEEE 802.11a/n; IEEE802.3; IEEE802.3u |
CPE Processor | Atheros AR7240+AR9280 |
SDRAM | 32 M Byte |
Flash | 8 M Byte |
Radio Frequency Type | OFDM |
Modulation | IEEE 802.11a: OFDM with BPSK, QPSK, 16QAM, 64QAM |
Frequency Band | 5.15 ~ 5.25 GHz (lower band) 5.25 ~ 5.35 GHz (middle band) 5.725 ~ 5.825 GHz (hi-band) |
Transmission Power | 29±2dBm |
Transmission Rate | IEEE 802.11a: 6/9/12/18/24/36/48/54/108 Mbps |
Access Point Interfaces | Auto sensing MDI/MDI-X Ethernet 10/100Base-T x 2: RJ-45 |
Sensitivity | IEEE 802.11a:-94dBm @ 6Mbps; -74dBm @ 54Mbps, PER<10% |
Antenna Type | Integrated 18dBi dual-polarized directional antenna |
Security Systems | 64-bit/128-bit/152-bit WEP encryption; WPA/ WPA2 (-PSK or -EAP with TKIP/AES encryption); 802.1x Authenticator, EAP-PEAP/EAP-TTLS support for client mode; Hide SSID in beacons |
Wireless Setting | Operation Mode – AP/ Client Bridge/ WDS Bridge PtP and PtMP (up to 16 links)/ Client Router Auto/Fixed Channel Selection (Setting varies by Country) Adjustable transmit power by 1dBm step |
Operating Temperature | -30 ~ +70°C |
Power | Passive PoE DC18 Volt + 5%; 20Watt (Max.); AC adapter AC 100V ~ 240V |
Network Management System OS Support |
Windows 2000/XP/Vista Home Basic/Windows 7 |
Warranty | One year limited |
- Built-in 18dBi panel antenna, more convenient in installing.
- High Transmission Power up to 29dBm and Extended excellent Range and Coverage(fewer APs)
- High Speed Data Rate Up to 300Mbps 2T2R, the transmission signal is strong and stable.
- Built-in Software Detects Surrounding Frequency Interference, use the best channel to transmit stable
- Simultaneously as a wireless repeater up to 8 links
- Multifunction application Access Point/WDS Bridge/Client Bridge + Repeater mode
