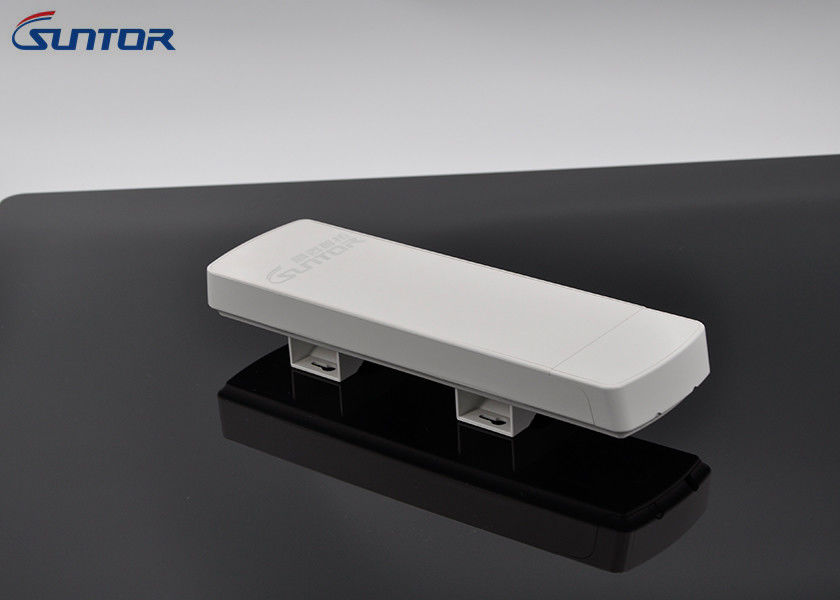

3KM Point to Point Wireless Ethernet Bridge / Router / Repater / Access Point POE

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST5815E-BPS
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Frequency: 5.8Ghz Standard: IEEE802.11 A/n(2T2R 300Mbps)
Modulation: 802.11 A/n: OFDM Voltage: 24V POE
Operating Temperature: -30℃~+70℃ Distance: 2-3km
Camera Support: IP Camera Working Mode: PTP And PTMP

Product Description

3KM Point to Point Outdoor Wireless CPE/Bridge/Router/Repater/Access Point POE



Data Sheet



User Manual



Features:



Features:



1. Using high-performance 802.11n 2X2 MIMO chip, the maximum rate of up to 300Mbps

2. Support five kinds of work modes: access point, client, WDS access point, WDS client, WDS repeater

3. Using TDMA, intelligent rate control, automatic ACK timeout adjustment and other technologies

4. TDMA protocol to overcome the inherent hidden node problems in 802.11, making the product has a better long-distance, point to multipoint performance

5. Support PTP and PTMP

6. Unique antenna, radio frequency amplifier, low noise receiver design, to ensure long-distance video, voice and data transmission



Parameters:



System information
Processor Spec Atheros AR9344 300Mbps
Memory information DDR2 64MB, 8MB Flash
Wireless 802.11b/g/n 2x2 MiMO
Networking interface 2x10/100/1000Mbps Base-Tx (Cat.5, RJ-45) Ethernet
Operating Frequency 5.8Ghz
Antenna Gain 15dBi
Power Supply 24V,0.5A PoE Adapter
Working mode Station/AP/WSD/WISP

Physical / Electrical
Enclosure Outdoor UV Stabilized Plastic
Operating Temperature -30~75C
Operating Humidity 5~95% condensing
Antenna Gain Outdoor UV Stabilized Plastic
Dimension 168*45*15mm

Output Power: 23dBm, 200mW
TX Power Spec 802.11n 802.11g 802.11b
  25dBm@MCS0~2/MCS8~10

25dBm@6~24/Mbps





25dBm@1~11/Mbps
  24dBm@MCS3/MCS11 25dBm@36Mbps
  23dBm@MCS4/MCS12 22dBm@48Mbps
  23dBm@MCS5/MCS13 22dBm@54Mbps
  22dBm@MCS6/MCS14
  22dBm@MCS7/MCS15
RX Power Spec 802.11n 802.11g 802.11b
  -90dBm@MCSO

-90dBm@6Mbps



-95dBm@1Mbps
  -70dBm@MCS7 -72dBm@54Mbps -90dBm@11Mbps
  -90dBm@MCS8
  -68dBm@MCS15
  22dBm@MCS6/MCS14
  22dBm@MCS7/MCS15
