Button SD Wireless Video Camera Transmitter Receiver High Power 1.5W For Drone UAV

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6215SH
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency Range 300MHz~2.4GHz
RF Power 1.5W NLOS(Earth To Earth With Barriers) 200-500m
Compression Format H.264 SD Format PAL / NTSC
Weight 285g Size 115*564*26mm (L×W×H)
High Light

drone transmitter and receiver

,

uav video transmitter

,

1.5W Drone Video Camera Transmitter

Leave a Message
Product Description

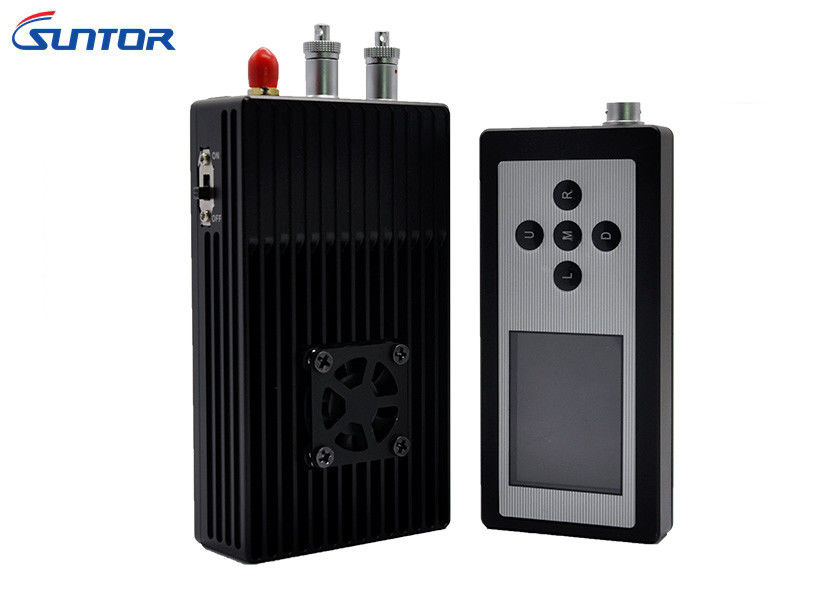

High Power 1.5W Button SD Wireless Video Camera Transmitter receiver​ for Drone UAV





Data Sheet



User Manual





ST6215SH has strong light, low power consumption of OLED display control panel, integrated digital modulation, audio and video compression in combo.  Button SD wireless video camera COFDM transmitter is suitable for mobile image, SD video, and it perform well in NLOS digital video transmission.



ST6215SH is not only small& light, but also has a good performance. For example, it can transmit high quality stable video and audio even though there are some building blocks or high-speed mobile shooting.



Features:

  • COFDM modulation, stable transmission

  • MPEG-2 video compression, DVD video quality

  • Shortly time delay

  • Supports high-speed mobile NLOS (non-light of sight) transmission up to 500 meters

  • Lithium battery for power supply (continuous working time is 40 minutes max)

  • Adjustable working frequency, bandwidth, RF power and more.

  • Transmission security by encryption of AES 128 bit

  • Stable quality image without any mosaic

Applications:
It’s widely used in UAV aviation filming, covert investigation, NLOS video surveillance, wireless image real-time transmission and etc.



Transmitter Parameters

RF Modulation

Working frequency

300MHz~2.4GHz

Transmitting Power

ST6210SH: 1Watts

ST6215SH: 1.5Watts

Modulation

COFDM(64QAM, 16QAM, QPSK)

Channel Bandwidth

2//4/6/8MHz adjustable manually

Error correcting mode

FEC@Viterbi (1/2, 2/3, 3/4)

Guard Interval

1/32, 1/16, 1/8, 1/4

Encryption mode

AES 128Bit/SUNTOR Basic Scrambling

Code Stream

1.5Mbps~12Mbps

BER

≤10-6

Transmission Distance

Air to Ground on UAV

ST6210SH: 5-15km

ST6215SH: 5-20km

Higher vertical flight height, longer transmission distance

NLOS(Earth to Earth with Barriers): 200-500meters

Audio and Video

Compression format

H.264(Embedded Audio)

SD Format

PAL 720 x 576

NTSC 720 x 480

Audio Video Input Connectors

CVBS

Image Frame Rate

25 f/s

Antenna

Frequency

300MHz-2.4GHz

Length

39cm

Gain

2.5dBi

Impedance

50Ω

SWR

<1.5

Connector

SMA

Weight

45g

Wind Loading Rating

284m/s

Others

Battery Powered

External Power In: DC 7.2~12V

Frequency Modulator

Display and Manually Adjust Parameters( Frequency, bandwidth, Video Format, AES)

Power switch

ON/OFF

Size

115*564*26mm (L×W×H)

Weight

285g
