40W Powerful Vehicle 1080P HD Wireless Transmitter in City NLOS Transmission

  • 40W Powerful Vehicle 1080P HD Wireless Transmitter in City NLOS Transmission
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6240CZ-HD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Working Frequency 300MHz～4.4GHz
Output Power 40W Standard H.264/MPEG-2
Code Stream 2Mbps～12Mbps System Latency ≤300ms
LOS Range LOS Horizontal Distance: 30-50km Air To Ground: 50-100km NLOS Range 15-40km
High Light

hd wireless video sender

,

video wifi transmitter

,

40W HD Wireless Transmitter
Leave a Message
Product Description

40W Powerful Vehicle 1080P HD Wireless Transmitter in City NLOS Transmission



Introduction:
ST6240CZ-HD is a Big RF power device special design for vehicle NLOS mobile digital image transmission. Using standard 19 inch 2U dimension appearance that very conveniently for car, boat fixed installation. Support one channel image and two audio channels. Its large rf power that depends on its long range distance transmission.

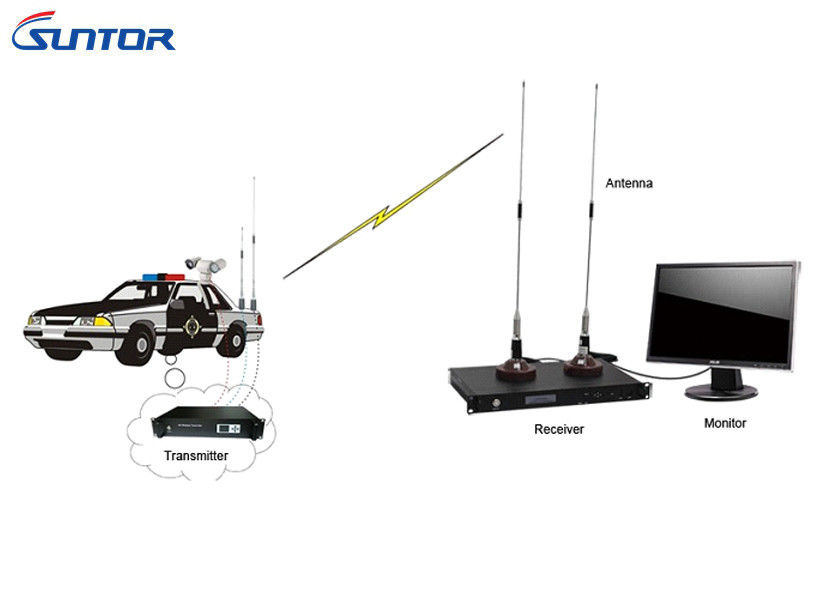

Suitable for Car to car, boat to boat, vehicle to fixed station, boat to fixed station, helicopter to fixed station Which can be also as a repeater, can up to 100km LOS/NLOS distance if work with omni-directional antennas.



Features:

  • Inset high-powered amplifier and cooling fans
  • Stable transmission with omni-directional antenna
  • COFDM modulation and MPEG-2 video compression
  • Adjustable working frequency, LCD board displays the working frequency
  • Great security by encryption of AES 128 bit
  • Rack mountable design, can be installed in a car or helicopter
  • Good transmission with high definition image and stereo audio
  • Stable transmission in NLOS(non line-of-sight)and high speed mobile condition.
  • The transmission range is 15-40km in NLOS(non line-of-sight)condition and 30-50km in LOS(line-of-sight)condition



ST6240CZ-HD is Big RF power device special design for vehicle NLOS mobile digital image transmission. Using standard 19-inch 2U dimension appearance that very conveniently for car, boat fixed installation
Support one channel image and two audio channels



Its large RF power that depends on its long range distance transmission. Suitable for car to car, boat to boat, vehicle to fixed station, boat to fixed station, helicopter to fixed station which can be also as a repeater, can up to 100km LOS and 40km NLOS distance if work with Omni-directional antennax


Transmitter parameter

RF Working frequency 300MHz～4.4GHz
Output power 40W
Modulation COFDM
Channel bandwidth 2/2.5/4/8MHz
Encryption AES
Guard Interval 1/32, 1/16, 1/8, 1/4
System Standard H.264/MPEG-2
Code stream 2Mbps～12Mbps
System latency ≤300ms
Error rate ≤10-6
Transmission Range

NLOS Distance: 15-40km

LOS Horizontal Distance: 30-50km

Air to Ground: 50-100km
Usage mode Vehicle-mounted
Audio and Video Compression format H.264/MPEG-2
Video input HD-SDI, High Definition Multimedia Interface and Analog CVBS
Audio input Left and Right Channel
Image resolution 1080P(1920*1080)compatible 720P,480P and SD @ Frame rate is 25 fps
Video input physical interface BNC female port, HD-SDI, High Definition Multimedia Interface standard interface
Aviation Interface

Hand Microphone(on front panel)

RS485(on back panel)
Audio input physical interface BNC female port
Others Power supply AC110-230V
Size 19" 2U standard crate,485mm×340 mm×90 mm (L×W×H)
Weight 5kg
