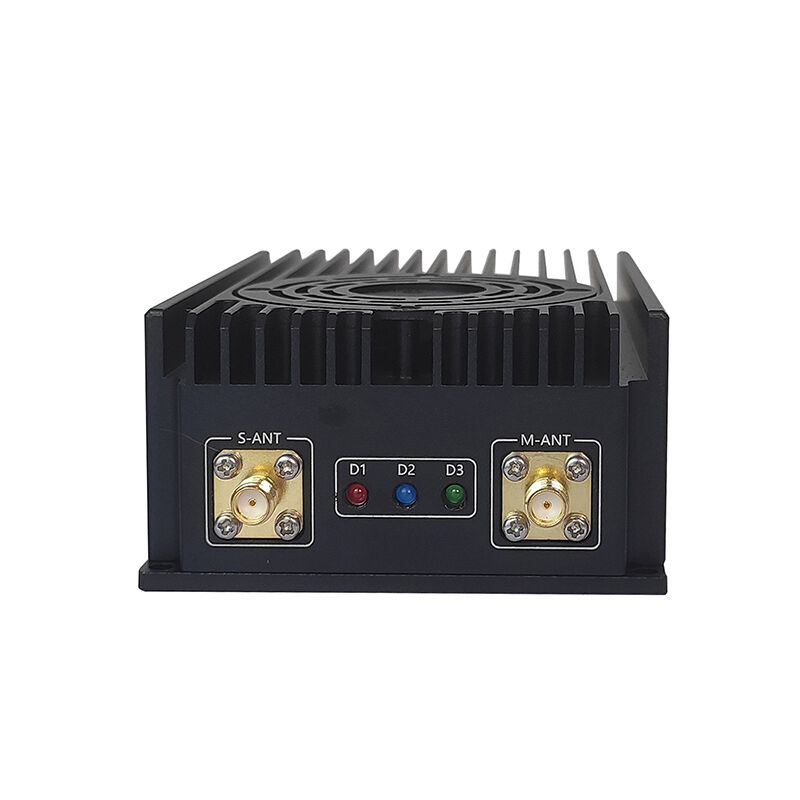

CD50Pro Long Range Drone Video Data Radio 24Mbps TDD-OFDM MIMO Wireless Transmitter

Name: CD50Pro Long Range Drone Video Data Radio 24Mbps TDD-OFDM MIMO Wireless Transmitter
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: CD50Pro
Price: 5,500.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Suntor

Certification: CE

Model Number: CD50Pro

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Packaging Details: Plastic Box

Delivery Time: 7-15DAYS

Payment Terms: T/T,Western Union

Supply Ability: 5000/months

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  COFDM wireless transmitter 24Mbps, long range drone video transmitter, MIMO data radio with TDD-OFDM


Frequency Range:	1420～1530MHz (Standard)	Modulation:	QPSK / 16QAM / 64QAM
Technology:	TDD-OFDM / MIMO / 1T2R	Data Rate:	24Mbps @ 10MHz (Peak)
Bandwidth:	5MHz / 10MHz / 20MHz	Rx Sensitivity:	-99dBm @ 5MHz
Security:	AES128 Encryption	Power:	DC12V～27V Power Supply ≤ 12W @ DC12V Power Consumption (Air)
Weight:	≤ 360g (Air)

Frequency Range:	1420～1530MHz (Standard)
Modulation:	QPSK / 16QAM / 64QAM
Technology:	TDD-OFDM / MIMO / 1T2R
Data Rate:	24Mbps @ 10MHz (Peak)
Bandwidth:	5MHz / 10MHz / 20MHz
Rx Sensitivity:	-99dBm @ 5MHz
Security:	AES128 Encryption
Power:	DC12V～27V Power Supply ≤ 12W @ DC12V Power Consumption (Air)
Weight:	≤ 360g (Air)

Description

CD50Pro Long Range Drone Video Data Radio 24Mbps TDD-OFDM MIMO Wireless Transmitter

CD50Pro Long Range Drone Video Data Radio

24Mbps TDD-OFDM MIMO Wireless Transmitter for professional unmanned systems

Product Overview

The CD50ProNMT drone video transmission radio is engineered for unmanned intelligent platforms including UAVs, USVs, UGVs, and robot swarm communication networking. This system integrates ultra-long-range wireless communication with multi-protocol interface adaptation, overcoming traditional transmission limitations.

Enables 20km+ air-to-ground full-duplex real-time video, audio, telemetry, and remote control data interaction. Supporting precise point-to-point control and distributed star-network communication in complex environments, it serves as a secure, globally controllable neural center for unmanned communication systems.

Technical Specifications

Frequency Range	1420～1530MHz (Standard)
Bandwidth	5MHz / 10MHz / 20MHz
Modulation	QPSK / 16QAM / 64QAM
Transmission Distance	Up to 50km Air-to-Ground
Technology	TDD-OFDM, MIMO, 1T2R
Data Rate	24Mbps @ 10MHz (Peak)
Rx Sensitivity	-99dBm @ 5MHz
Security	AES128 Encryption
Antenna	Dual SMA Antennas
Weight	360g (Air Unit)
Power Supply	DC12V～27V Power Supply ≤ 12W @ DC12V Power Consumption (Air)

Professional Applications

Aerial Filming & Photography - Smooth HD video feed for professional cinematography and live streaming
Public Safety & Search-and-Rescue - Reliable long-range communication in critical missions
Industrial Inspection - Real-time HD video for infrastructure, utility, and pipeline monitoring
Military & Tactical Operations - Encrypted, interference-resistant transmission for secure environments

Package Contents

OMNI Antenna for Air Unit × 2
OMNI Antenna for Ground Unit × 1
Directional Antenna for Ground Unit × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
Serial Cable × 2
S.BUS Cable × 1
XT30 Power Cable × 1
VTA-Manual (Manual Tracking Antenna System) × 1
