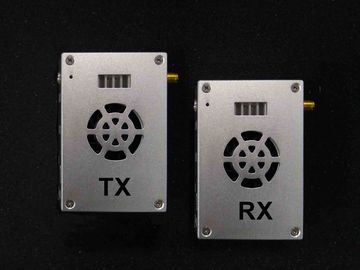

Light Weight IP Interface Drone Video Transmitter Link 0.3W RF Power 15KM Distance

Basic Information
Place of Origin: Shenzhen
Brand Name: Suntor
Certification: CE, RoHS
Model Number: ST15NPT link
Minimum Order Quantity: 1 Set
Packaging Details: Box Package
Delivery Time: 8-11 days
Payment Terms: Western Union, T/T
Supply Ability: 10000 pcs per month
Contact Now
Detail Information
Distance: 15KM RF Power: 0.3W
Weight: 68g Modulation: TDD
Interfaces: 4 Frequency: 2401.5-2481.5 MHz/ 1427.9-1447.9MHz/ 806-826 MHz

Product Description

Suntor have been working at wireless transmission 13 years, we seek to become the one-stop-shop for all your innovative and comprehensive wireless and data link products, systems and applications. To achieve this goal, we employ a broad range of flexible design, development and manufacturing practices and processes with respect to all our communication solutions and applications, adapting products to suit your needs and achieve maximum compatibility, interoperability and satisfaction. Our proprietary technologies and mature line of products include RF modules, transmitters, receivers, digital modems, antennas, software and firmware packages, integrated digital data link systems and special tailored wireless communication solutions for aerial, naval and ground applications.







Feature:

  • TDD wireless transmission technology
  • Optional frequency 800MHz/ 1.4GHz/ 2.4GHz
  • dual antenna diversity design to make the signal transmission quality more stable, and high receiving sensitivity
  • Long range more than 15km
  • Lower RF power and power consumption
  • Support IP video output and bidirectional TTL serial data
  • the uplink and downlink data link transmission rates can be adjusted proportionally(2D3U,3D2U,4D1U)
  • Optional Bandwidth(3MHz/5MHz/10MHz/20MHz)



Parameter:

Module
Hardware RF Frequency 2401.5-2481.5 MHz
1427.9-1447.9MHz
806-826 MHz
RF Power 25dBm±2
  Receiving sensitivity 2.4G(1Mbps):
20MHz -99dBm 10MHz -102dBm
5MHz -104dBm 3MHz -106dBm
1.4G(1Mbps):
10MHz -103dBm 5MHz -106dBm 3MHz -108dBm
800M(1Mbps):
10MHz -103dBm 5MHz -106dBm 3MHz -108dBm
Antenna Double Antenna SMA Type
Serial Port TTL *1 Baud rate 115200
Power consumption 5V power supply the consumption maximum in 850mA±15%.
9~13V optional
Working temperature -25℃~60℃
System Center point Central node selection Any node in the network can be configured as a central node
  Rate The central node simultaneously receives/sends the total rate of data sharing at the current bandwidth.
From Node Node Qty Ethernet Nodes N≥2 maximum 16 access point
Communications Any two slave nodes must be forwarded through the central node
Any node supports unicast and broadcast modes
Access PTP;PTMP
Rate All slave nodes and the central node share the working bandwidth in one direction, the maximum downlink configuration (20M bandwidth, the rate reaches 30M), and the maximum uplink configuration (20M bandwidth, the rate reaches 26M).
Automatic power adjustment Support access node adaptive adjustment of transmit power
Software upgrade OTA, Local and remote upgrade
Wireless Anti-interference Frequency hopping Support automatic frequency hopping in the range of frequency
Retransmission configuration   Select whether to retransmit according to different data carried
Transmitting mode Transmission mode

Single antenna transmission, single antenna receiving /

single antenna transmitting, dual antenna receiving

Data link Master-slave data bidirectional communication, dynamically adjusting rate based on wireless data
Bandwidth 2.4GHz 3MHz/5MHz/10MHz/20MHz
1.4GHz 3MHz/5MHz/10MHz
800MHz 3MHz/5MHz/10MHz
Rate   Single node supports up to 30Mbps, adaptive average distribution system rate
Encryption

Support user configuration layer 2 encryption to turn off

And encryption (ZUC, SNOW3G, AES three encryption options are optional)

Modulation   QPSK,16QAM,64QAM
Latency Air latency Delay from node-central node transmission <10ms
Start delay Central node/slave node boot delay <15s
Network build time <1min


Light Weight IP Interface Drone Video Transmitter Link 0.3W RF Power 15KM Distance
