Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: CD30NMT-V3
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Carton
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
BPSK/QPSK/16QAM/64QAM |
Data Rate: |
24Mbps@10MHz(Peak) |
Bandwidth: |
5MHz/10MHz/20MHz |
Tx Power: |
2W |
Rx Sensitivity: |
-99dBm@5MHz |
Security: |
AES128 Encryption |
Modulation: |
BPSK/QPSK/16QAM/64QAM |
Data Rate: |
24Mbps@10MHz(Peak) |
Bandwidth: |
5MHz/10MHz/20MHz |
Tx Power: |
2W |
Rx Sensitivity: |
-99dBm@5MHz |
Security: |
AES128 Encryption |
COFDM Transmitter The Ultimate Solution for Long-Distance Wireless Communication
1. Introduction
The CD30NMT-V3 sky-end device is matched with the ground-end device to realize long-distance two-way wireless video, audio, and data transmission. The maximum air-to-ground transmission distance can reach more than 50km. The communication method can meet point-to-point two-way communication, and can also realize point-to-multipoint star networking communication.

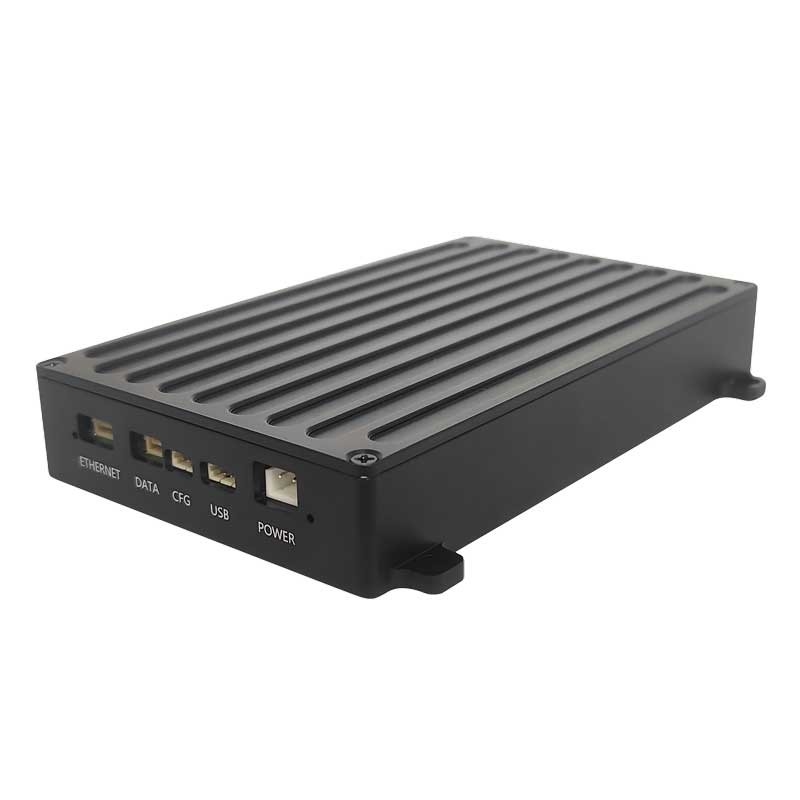

The device provides multiple service interfaces, including 1 Ethernet port, 1 transparent TTL serial port, and 1 transparent RS232 port. It has the characteristics of small size, light weight, easy installation, and easy use. The structural form can be customized according to the use scenario. It is very suitable for wireless data transmission scenarios such as unmanned aircraft, unmanned ships, unmanned vehicles, and robots.
2. Feature
3. Specification
| Wireless | |
| Technology | TDD-OFDM/MIMO/1T2R |
| Modulation | BPSK/QPSK/16QAM/64QAM |
| Data Rate | 24Mbps@10MHz(Peak) |
| Frequency Range | 1428~1448MHz(Standard) |
| 2410~2480(Optional) | |
| 810~820Mhz(Optional) | |
| Bandwidth | 5Mhz/10MHz/20MHz |
| TX Power | 2W |
| RX Sensitivity | -99dBm@5MHz |
| System | |
| Serial Port | 1 RS232 + 1 TTL |
| Ethernet Port | 1 Ethernet Port |
| Security | AES128 Encryption |
| Power | DC12V Power Supply ≤12W @ DC12V Power Consumption(Air) |
| Interface | |
| RF Antenna | SMA*2 |
| Serial Port Interface | JST*2 |
| Ethernet Interface | JST*1 |
| Config Interface | JST*1 |
| USB Interface | JST*1 |
| Power Input | JST*1 |
| Physical | |
| Dimension | 114x76x19.5mm(Air) |
| Weight | 180g(Air)+450g(Ground) |
4. Diagram
5. Accessories
