Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST10NPT
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
TDD-COFDM |
Frequency: |
2.4Ghz |
Range: |
10km |
Weight: |
68g |
Power: |
DC7-18V |
RF Power: |
1watt |
Video: |
IP Camera Video |
Data: |
SBUS/PPM/TTL |
Modulation: |
TDD-COFDM |
Frequency: |
2.4Ghz |
Range: |
10km |
Weight: |
68g |
Power: |
DC7-18V |
RF Power: |
1watt |
Video: |
IP Camera Video |
Data: |
SBUS/PPM/TTL |
Uav Ground Station Wireless Ethernet Transmitter Receiver Cofdm Rs485 Rs232 Control
Data Sheet
User Manual
Introduction
ST10NPT is TDD COFDM full duplex video transceiver is the new developing product of SUNTOR ELECTRONCS COMPANY. It is our latest miniature pure digital wireless transmission equipment. With two ethernet interfaces to input, the transmitting distance can up to be 14km.
Features
Working Temperature: -40℃~+85℃
Double Ethernet Input
Support Duplex data transmitting SBUS/PPM/TTL/232/485
Video: Video sources self-adaptive(Max 1080P/60)
Support IP Camera video Input
Compatible with different brand flight control system and RC
2* 100Mbps Ethernet interface on TX and RX for option
Parameters
| Item name | Drone transmitter COFDM 10-14km microwave video sender |
| Model number | ST10NPT |
| Modulation | CODFM |
| DC input | 7-18V DC |
| Working current | ≤1A at 12V DC |
| Constellation | QPSK,16QAM (optional) |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 (optional) |
| Carrier | 2K |
| Guard interval | 1/32, 1/16, 1/8, 1/4 (optional) |
| Frequency | 2.4Ghz |
| RF power output | 1Watt |
| Video interface | RJ45 |
| RF interface | SMA |
| Flatness | ≤2dB (within full frequency range), ≤0.5dB (within 8MHz) |
| Video harmonic | 1Vp-p at 75Ω, NTSC/PAL adaptive |
| CBER | <2.0E-4 |
| Video compression | H.264+H.265+TS |
| Resolution | 1920*1080 |
| Casing protection | IP66 (dust-proof, rain-proof) |
| Work environment | -40~ +85degree centigrade |
| Dimensions | TX: 68×48x15mm/RX: 68×48x15mm |
| Weight | TX: 68g, RX: 68g |
| Delivery | 1-3 working days delivery time |
| Free warranty | 12 months for device; 3 months for parts |

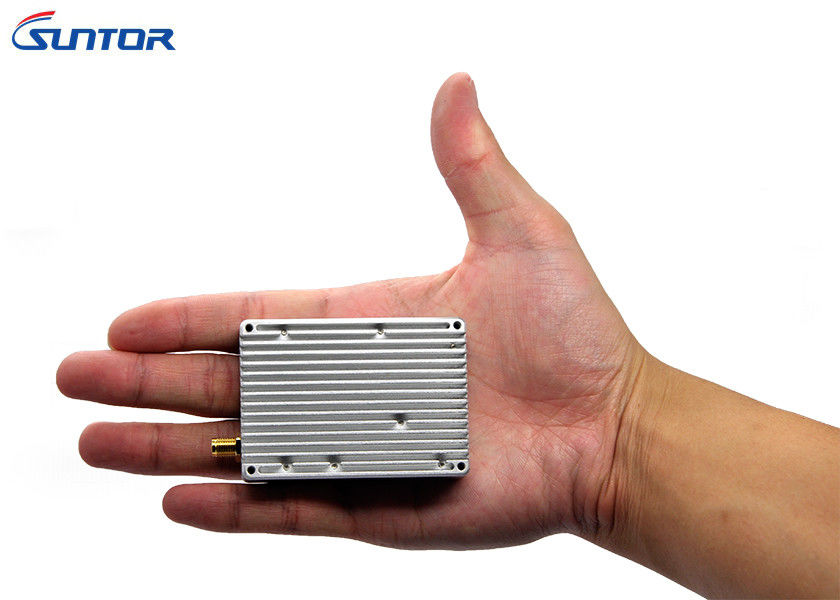

Pictures
