1.2GHz Mini 7.5W 12CH 1000m Hd Wireless Video Sender Receiver For Analog Camera

Place of Origin China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST-098
Minimum Order Quantity 1 set
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation FM Frequency 1.2GHz
Transmit Power 7.5W Number Of Channels 12CH
Power Supply DC 12V Transmit Distance 300 - 1000 Meters
Video Mode PAL / NTSC Weight Tx: 300g Rx: 138g
High Light

analog wireless transmitter

,

wireless av transceiver

Leave a Message
Product Description

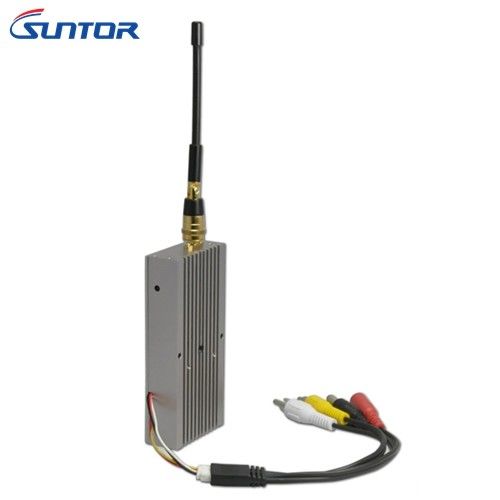

1.2GHz mini 7.5W 12CH 1000m wireless av sender receiver for analog camera



T-098 is a portable wireless video transmission device with high performance/price ratio. It features small size, low power consumption and good penetrability. The device is especially applicable to one-person operation that requires proper camouflage and small-size battery. The specially-designed A/V interfaces may be directly connected to the vide recorder and supply power for the recorder, there is no unwanted interface and some space is saved, it’s easier to carry with. The device is applicable to the work demands of criminal detection, concealed detection, fieldwork and special tasks.



The specially-designed four-core square-hole connector may be directly connected to the portable mini video recorder; the emitter and camera are electrified by same power supply to make the device better to be concealed. In case the customer wants to equip his/her own camera, a special connection wire shall be provided to connect other analog cameras. Transmission distance: more than 1,000m (open environment without obstructs), and about 300m (environment with obstructs).



Features:

  • Use 1.2GHz ISM frequency band.
  • 1000 m transmission range without any holdback.
  • 12 groups of selectable channels, it can effectively avoid the interference from router and other wireless devices.
  • Support 1 group of AV signal input/ output.
  • Supports video transmission of PAL/ NTSC system and stereo audio transmission, Pictures received are clear, flamboyant and stable.
  • Full hardware design without installing any software, plug and play, simple and convenient.
  • Fashionable design, Machine dimensions: 14 × 5.1 × 2.1 cm.



As a portable device, it also requires small-size peripheral accessories. According to the needs of distance can choose high-gain Yagi directional antenna, wireless transmission distance is much more farther.



Transmitter Parameter
Working frequency 1060 1100 1140 1180 MHz1080 1120 1160 1200 MHz1240 1280 1320 1360 MHz
Emission power 35dBm
Output impedance 50Ω
Video input AVAnalog AV video signal
Input audio 0.1~1.00.1-1.0 peak value
Working voltage 12VDC 600mA
Modulation mode FM
Modulation bandwidth 40MHz
Video mode PAL
Size: 140*51*21mm
Weight 300g
Ambient temperature -20~+55°C



Receiver Parameter
Input frequency 1060 1100 1140 1180 MHz1080 1120 1160 1200 MHz1240 1280 1320 1360 MHz
Input impedance 50Ω
Video mode PAL/NTSC
Video output AVAnalog AV video signal
Working voltage 12VDC 500mA
Size: 137*80*20mm
Weight 138g
Ambient temperature -20~+55°C



Package includes

  • 1 * transmitter
  • 1 * receiver,
  • 2 * small omni antenna
  • 1 * connect line (power input, video input, audio input and power output)
