100Km application Drone Video Transmitter support SBUS / PPM Standard and GS / RC

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST100HPT

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

drone transmitter and receiver

,

uav video transmitter

Frequency:
2.4G-2.482Ghz
Video Input:
SDI/High Definition Multimedia Interface
Data:
Duplex Data Transmitting
Seria Baut Rate:
115200bps
Serial Port:
Double
Ethernet:
100Mbps
Latency:
15-30ms
Working Temperature:
-40°C ~ 85°C
Frequency:
2.4G-2.482Ghz
Video Input:
SDI/High Definition Multimedia Interface
Data:
Duplex Data Transmitting
Seria Baut Rate:
115200bps
Serial Port:
Double
Ethernet:
100Mbps
Latency:
15-30ms
Working Temperature:
-40°C ~ 85°C
Description
100Km application Drone Video Transmitter support SBUS / PPM Standard and GS / RC



100Km application Drone Video Transmitter support SBUS / PPM Standard and GS / RC



Data Sheet





Description



ST100HPT Drone transmitter COFDM 120km microwave video sender is a new long range wireless aerial transmitter.


TDD-COFDM wireless transmitter is with latest technologies of COFDM, H.24+H.265+TS Stream image compression and full HD quality video.


Data and video wireless transmitter has good performance of wireless long range transmission, compact size, good heat resistance, and strong power amplifier for longer-range transmission
Long range wireless aerial transmitter can add High Definition Multimedia Interface or SDI interface as HD COFDM wireless video transmitter or add data port as COFDM data video transmitter to combine the RC links, Auto pilot system and video into one lin. Ethernet port on aerial transmitter and receiver support the video directly output to PC. So that the video can be stroe and retransfer online.


Drone transmitter COFDM 100-200km microwave video sender is encrypted with AES128/256bits, this machines performs well in fast-moving wireless transmission.



Features



  • Full HD 1920*1080P Video resolution
  • TDD-COFDM modulation
  • Stable signal
  • HD-SDI/High Definition Multimedia Interface input
  • Adjustable bandwidth 2/4/6/8MHz
  • Range 100 to 200km on UAV
  • Balanced stereo audio input
  • RF power 3Watts
  • Real-time broadcasting
  • Low delay 15-30ms
  • Built-in two cooling fans
  • Double Transmitting and receiving antenna to increase the sensitivity.



Paramters



Item name Drone transmitter COFDM 100-200km microwave video sender
Model number ST100HPT
Modulation CODFM
DC input 7-18V DC
Working current ≤1A at 12V DC
Constellation QPSK,16QAM (optional)
FEC 1/2, 2/3, 3/4, 5/6, 7/8 (optional)
Carrier 2K
Guard interval 1/32, 1/16, 1/8, 1/4 (optional)
Frequency 138-4400MHz (available)/td>
RF power output 3Watts
Video interface High Definition Multimedia Interface/SDI
RF interface N type
Flatness ≤2dB (within full frequency range), ≤0.5dB (within 8MHz)
Video harmonic 1Vp-p at 75Ω, NTSC/PAL adaptive
CBER <2.0E-4
Video compression H.264+H.265+TS
Resolution 1920*1080
Casing protection IP66 (dust-proof, rain-proof)
Work environment -40~ +85degree centigrade
Dimensions TX: 76x73x44mm/RX: 76x73x23mm
Weight TX: 251g, RX: 146g
Delivery 1-3 working days delivery time
Free warranty 12 months for device; 3 months for parts





Pictures

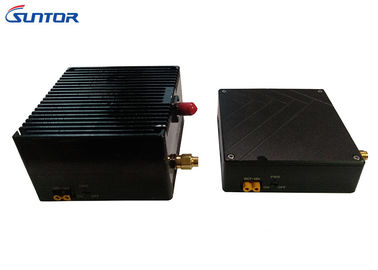

100Km  application Drone Video Transmitter support SBUS / PPM Standard and GS / RC 0
