CD05HPT Wireless HD Drone Video Transmitter And Receiver 1080P 60fps COFDM Modulation

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number CD05HPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Modulation COFDM Frequency Range 2.402-2.478GHz
Transmission Power 26dBm Transmission Distance Air To Ground 5km
Transmission Mode Point To Point / Point To Multipoint Net Weight 94g

HD Drone Video Transmitter And Receiver


Video Transmitter And Receiver For Drone


COFDM Drone Video Transmitter And Receiver

Leave a Message
Product Description

1080P/60fps H.265 High Definition Multimedia Interface RS232 COFDM Wireless Video Data Transmission System


CD05HPT Drone Video Transmitter & Receiver Specifi...



CD05HPT is FULL HD image transmission system equipment professional for UAVs, standard COFDM modulation. The product use of advanced video processing technology and efficient encoding algorithm to improve the coding efficiency and reduce coding delay and increase the error rate, and then improve image quality. It can be the lowest bit rate to achieve the best quality of image.
Supports RF power 400mW-1.5W, High Definition Multimedia Interface AV Input. 2.402-2.478GHz (optional).



  • COFDM modulation, CABAC (h.264) compression

  • Support 1080P / 720P resolution

  • Micro dimension, micro lightweight, easy to carry, heat dissipation of aluminum case

  • Only 12-25ms delay for whole system working

  • Built-in with High Definition Multimedia Interface ethernet and RS232 interface (multi selection)

  • Supports two-way(data&image&voice)communication

  • Ultra-distance ~1080P/ 300 meters altitude up to 5 km transmission distance


Suntor’s HPT Series tiny video transmitters offer many innovative features, are designed to withstand harsh environments, and are ideal for Drones, UAV, and other applications requiring high efficient, high quality video/data transmission in a compact, rugged package.


HPT transmitters may be configured with fixed RF output powers of 200 mW, 1 Watt, or 1.5 Watts. Transmitters may be optionally configured with remotely selectable power levels utilizing any of these three power levels. Suntor’s proprietary power-leveling circuit ensures level output power over the entire frequency band.

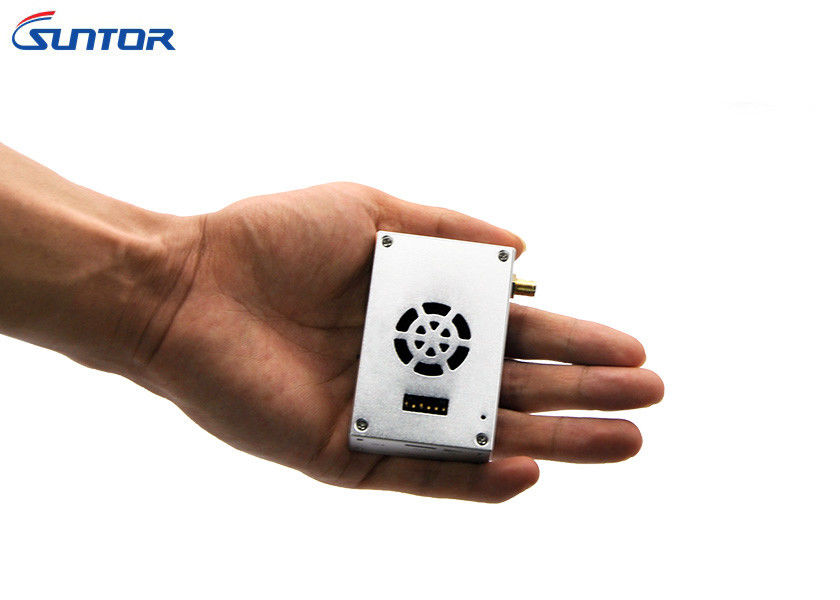

CD05HPT Wireless HD Drone Video Transmitter And Receiver 1080P 60fps COFDM Modulation 0






Wireless Fault-tolerant



RF Transmitted Power

CD05HPT: 400mW (Air to ground 5km)CD11HPT: 1Watt (Air to ground 10km)

CD30HPT: 1.5Watts (Air to ground 30km)


Frequency Bandwidth






Receive Sensitivity



Transmitter Interface

1080P60 High Definition Multimedia Interface Mini RX


100Mbps Ethernet Port


S1 S2 TTL bidirectional serial port






Receiver Interface

1080P60 High Definition Multimedia Interface Mini RX


100Mbps Ethernet Port


S1 S2 TTL bidirectional serial port






Video Color Space

Default 4:2:0 optional: 4:2:2/4:4:4





Video Input/output Interface

High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX

Support the voice function

Video Compressed Format

H.264 +H.265 TS

Support the bitrate output

Adjustment mode of bitrate

Software adjustment


Communication Channel Encryption



Transmission Mode

point to point / point to multipoint


Transmission Distance

Air to ground 5km


Start-up time

< 30s


Total delay of the system

12-25ms of 1080P60/720P60 coding and decoding


Two-way function

Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module


Power supply

DC7- 18V

DC7-18 V Optional

Total Power Dissipation

Transmitter: 7Watts

Receiver: 5Watts

Maximum value

Temperature Range

Operating temperature:-40°C ~ 85°C


Storage temperature:-55°C ~ 100°C



Power input interface × 1


Antenna interface × 1


RS232 Bidirectional Port × 1


Ethernet to USB / RJ45 on Windows × 1

Software adjustment

Indicator Light

High Definition Multimedia Interface input/output indicator light


Transmitting and receiving indicator light


Video board indicator light


Power light


High Definition Multimedia Interface

High Definition Multimedia Interface mini/Flexible Flat Cable(FFC)


Appearance Design

CNC technology/ double aluminum alloy shell with waterproof design






Tx: 94g Rx: 98g
