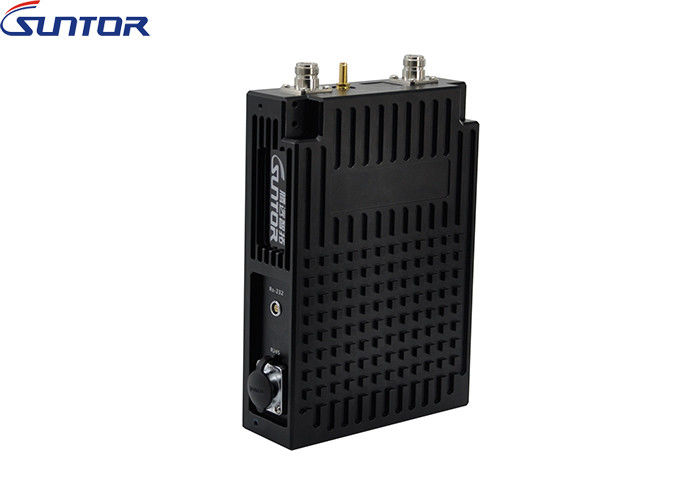

0ms Latency Digital Wireless Audio Transmitters 1080P / 1080I HD Small Size For Drone

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST5NPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency 2.402-2.478GHz
Transmitting Power 400mW Frequency Bandwidth 2MHz/20MHz
Transmission Mode Point To Point / Point To Multipoint Transmission Distance Air To Ground 5km
Transmitting Rate 70Mbps Power Supply DC7~18V
High Light

wireless video transmitter and receiver

,

cofdm video sender

Leave a Message
Product Description

0ms latency Drone Small Size 1080P / 1080I HD Wireless Digital Video Transmitter





Data Sheet



User Manual





Introduction:

ST5NPT this exclusive design mini HD wireless video transmitter ST5NPT is using the 4th generation mobile communication core COFDM multi-carrier modulation technology. It supports 2.4GHz(2. 402~2. 478 GHz) and suitable for long distance, high code stream and wireless aerial transmission application. With RS232 bidirecitonal port, can transmit video audio and control signal in a long distance up to 5km.



Its advantages small size, lightweight and high bandwidth that can transmit high quality full 1080P HD video and audio even though high-speed mobile shooting. It’s widely used in UAV aviation filming.



Product Features:

  • Transmission power: 400mW (23dBm)
  • Extreme lightweight and rugged housing
  • Vibration and shock resistant
  • Applied COFDM modulation with Lan and RS232 port
  • Ultra small dimensions and ultra light weight
  • Perfect for high altitude mobile applications
  • High quality of video transmission, no mosaic, no dragging phenomenon, stable power with adjustable dynamic power.



Application:
As its miniature volume, precision design, lightweight and easy to carry, suitable used in short distance and long range air high speed wireless video data transmission purposes. Such as UAV, rotorcraft, micro UAV, drone, UGV, unmanned powered parachute and more video data transmission.



Parameter

Model: ST5NPT
Frequency 2.4GHz (2.402-2.478GHz) Adjustable
RF Transmitting Power

ST5NPT: 23dBm(air to ground 5km)

ST10NPT: 30Bbm(air to ground 10km)

ST20NPT: 33dBm(air to ground 20km)


Frequency Bandwidth 2MHz/20MHz Adjustable
Antenna 1T1R
Adjustment mode of bit rate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Start-up time < 30s
Transmission Distance

ST5NPT: Air to ground 5km

ST10NPT: Air to ground 10km

ST20NPT: Air to ground 20km


System Latency 12-25ms
Two-way function

Integrate multiple radio links into one to transmit and receive.

Support SBUS/PPM/TTLS 1 pro communication module

Optional
Transmitting Rate 70Mbps
Power DC 12V DC7~18V Optional
Power Consumption

ST5NPT

TX: 3Watts

RX: 3Watts

ST10NPT

TX: 4Watts

RX: 4Watts

ST20NPT

TX: 6Watts

RX: 6Watts

Maximum
Temperature

Operating temperature: -40 - 85°C

Storage temperature: -55 - 100°C


Interface

Power input interface × 1

Antenna interface × 1

RS232 Bidirectional Port × 1

Ethernet to USB / RJ45 on Windows × 1

Software adjustment
Indicator Light

RJ45 input/output indicator light

Transmitting and receiving indicator light

Transmitting and receiving indicator light

Power light


Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size 68×48x14mm
Net Weight Tx:59g  Rx: 59g
