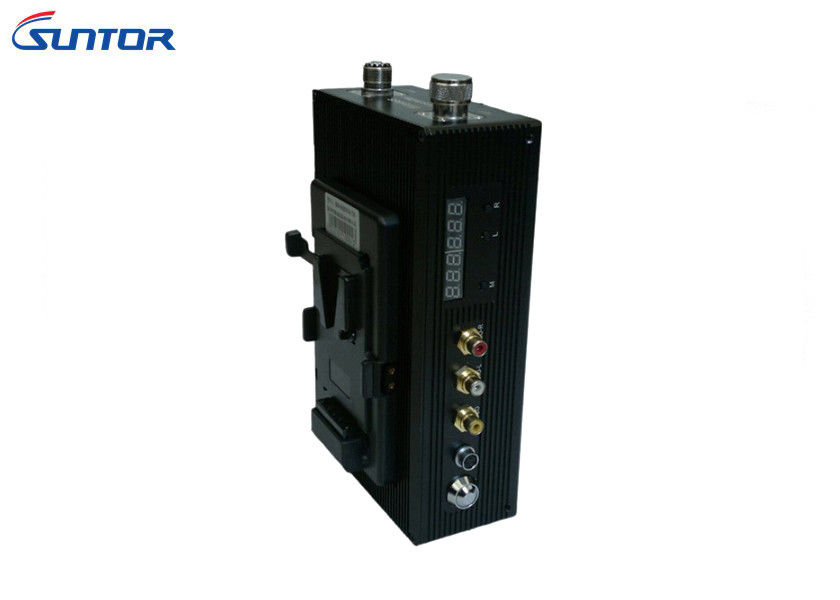

Manpack defense Wireless COFDM Video Transmitter Two Way Voice Communication

  • Manpack defense Wireless COFDM Video Transmitter Two Way Voice Communication
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6202DB-HD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFMD Frequency Range 300MHz～900MHz (customized)
Output Power 1～5W LCD Adjustable Channel Bandwidth 8MHz
Resolution HD 720P Special Function Two-way Voice
Power Supply Battery DC14.4V SONY V -type Buckle Weight 1.5kg
High Light

wireless video transmitter and receiver

,

audio video transmitter

,

Manpack cofdm transmitter
Leave a Message
Product Description

Backpack Portable wireless Two Way Voice COFDM Video Transmitter



Product Description:

Suitable for audio & video transmitting in long distance, as it has adopt COFDM 2MHz wireless spectrum bandwidth, then it has the more higher compression rate, the lower channel codingflow rate, the more stronger receiving sensitivity and the more stable signals.

Used in man to car ,man to control center. This equipment has transmit power and long transmit distance ,can do a wide range of mobile high definition image transmission, distance can up to 50km in line of sight.



Product Advantages:

  • With strong NLOS transmission capacity;
  • H.264/MPEG2 video encoding and decoding;
  • The transmitter receiver end can realize two way audio function;
  • The delay time for end-to-end is 300ms;
  • Can transmit images voice stably in the condition of high speed movement and multi-path interference;
  • Long distance transmission(individual transmitter, ground-to-ground NLOS transmission 1-2km, ground-to-ground LOS transmission 5-10km, ground-to-air transmission 10-50km);
  • With spatial diversity reception ability;
  • Double antenna, Stable signals,Smoothly images;



Transmitter parameter

Working frequency 300MHz～900MHz (customized)
Output power 1～5W LCD adjust
Modulation COFDM
Channel bandwidth 8MHz
Encryption mode manual operation AES double encryption
System part
Standard H.264 standard
Code stream 1.5Mbps～6Mbps
System latency 300ms
Usage mode Manpack
Transmission distance

Onboard application > 80 km;Marine application: > 40 km;

City application >7km ;Suburban application > 10km
Audio and video part
Compression format H.264
AV input HD-SDI, CVBS or High Definition Multimedia Interface, CVBS(optional), left and right channel
Image resolution

720P,480P and standard

resolution
Image frame rate 25fps
Video input physical interface BNC female port, High Definition Multimedia Interface standard interface
Audio input physical interface BNC female port, High Definition Multimedia Interface standard interface
Others
Power supply special battery DC14.4V
LCD display LCD display for adjust parameter
Size 200×125×60 mm (L×W×H)
Weight 1.5kg
