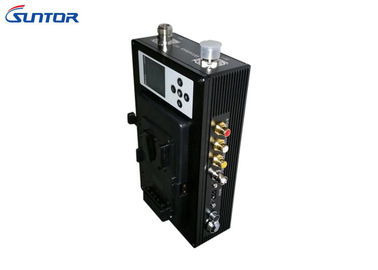

Portable Cofdm Wireless Transmitter , Wireless Video Transmission System For Soldier Carried Shooting

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6200DBPLUS
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency Range UHF 300Mhz~900Mhz
Output Power 1~5W LCD Adjustable Image Format H.264 / MPEG-2
Power Supply Special Battery DC14.4V SONY V Style Transfer Distance Air>70KM, Marine>30KM, City>6KM, Suburb>9KM
High Light

audio video transmitter

,

cofdm video sender

Leave a Message
Product Description

Equipment Soldier Carried Shooting HD Digital Video Transmission 2km NLOS



Introduction

ST-6200DBPLUS real-time individual HD Wireless image transmission system which is our next-generation broadcast high definition image real-time transmission system. Used current leading of COFDM modulation technology, relative narrow-band of air frequency occupied (2/2.5/4/8MHz) and strong of anti-more diameter interference capacity. Combined with efficient new digital video coding standard H.264 compression, clarity to achieve full HD1080P HD picture quality, resolution (1080I, 720P, 480P and 1920*1080 compatibility and SD), support for digital interfaces and analog interface; digital audio and video, HD-SDI, High Definition Multimedia Interface input, analog audio and video interface, CVBS composite input; with delicate quality, condition excellent, rich color HD picture quality features such as ability to regulate.



Strengths

  • Manual setting dual AES encryption
  • Individual lock the frequency, bandwidth, power and code function by LCD screen
  • Receiver with 12V POE power supply
  • Frequency 2/2.5/4/8Mhz adjustable
  • High quality digital video processing and H.264/MPEG-2 video CODEC
  • AV port: Digital HD-SDI, High Definition Multimedia Interface port and analog CVBS
  • Resolution: Full HD1080P (1920*1080)
  • Stable image and video transmission in high speed moving and interference area
  • Strong NLOS transmission
  • Power: 1~5W adjustable
  • With space diversity ability

Applications:
The system has been widely used in many fields such as: forces,first responders,security services,Fire services,Sports coverage,homeland security,traffice management, command and controls posts,airport,border control,magior incident support and etc.



Transmitter

Frequency modulator:

  • Frequency: 300Mhz~900Mhz, adjustable (LCD screen control)
  • Output power: 1~5W (LCD screen control)
  • Mode: COFDM
  • Channel bandwidth: 2/2.5/4/8Mhz (LCD screen control)
  • Error correcting mode: FEC@Viterbi (1/2, 2/3, 3/4, 5/6, 7/8)
  • Guard interval: 1/32, 1/16, 1/8, 1/4
  • Encryption scheme: Manual AES double encryption
  • Modulation constellation: QPSK, QAM16, QAM64

System:

  • H.264 technical standard
  • Code stream: 1~12M adjustable by LCD screen
  • Delay: 300ms
  • Error rate: ≤10-6
  • Transfer distance: Air>70KM, Marine>30KM, City>6KM, Suburb>9KM
  • Usage mode: Individual weapon, Backpack

Video and Audio

  • Compressed image format: H.264/MPEG-2
  • Video input: Digital HD-SDI, Analog CVBS audio video or Digital High Definition Multimedia Interface, Analog CVBS
  • Image resolution: HD1080P(1920*1080), compatible 1080I, 720P, 480P and SD
  • Image fps: 30fps
  • SDI audio and video: HD-SDI built-in AV
  • Audio Video input port: BNC, High Definition Multimedia Interface, HD-SDI

Others

  • Comes with LCD screen, adjust parameters
  • Power supply: Special battery DC14.4V SONY V style
  • Size: 200*125*50 mm (L*W*H)
  • Weight: 1.5KG
