Full HD COFDM Wireless Transmitter Manual AES Double Encryption , 300MHz~4400MHz Customizable

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST6200DB-HDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

wireless hd transmitter

,

wireless hdmi video transmitter

Modulation:
COFDM
Frequency Range:
300MHz~4400MHz Customizable
Output Power:
1~5W Adjustable
Encryption Scheme:
Manual AES Double Encryption
Power Supply:
Special Battery DC14.4V SONY V Style
Compressed Format:
H.264/MPEG-2
Video Input:
SDI, High Definition Multimedia Interface Port And CVBS Input
Transmit Distance:
Air>70km, Marine>30km, City>5km, Suburb>7km
Modulation:
COFDM
Frequency Range:
300MHz~4400MHz Customizable
Output Power:
1~5W Adjustable
Encryption Scheme:
Manual AES Double Encryption
Power Supply:
Special Battery DC14.4V SONY V Style
Compressed Format:
H.264/MPEG-2
Video Input:
SDI, High Definition Multimedia Interface Port And CVBS Input
Transmit Distance:
Air>70km, Marine>30km, City>5km, Suburb>7km
Description
Full HD COFDM Wireless Transmitter Manual AES Double Encryption , 300MHz~4400MHz Customizable

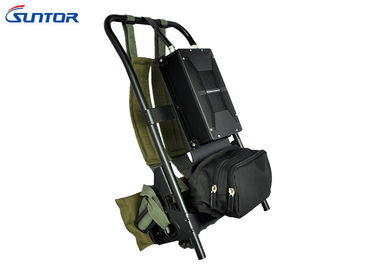

man-portable long range 30km COFDM full HD wireless system



Introduction:
This product is a new kind of broadband wireless video equipment that adopts the latest technologies of COFDM modulation and MPEG-2 video compression with IP66 waterproof that can complete video transmission in high-speed motion and NLOS (non line-of-sight) conditions. The diversity receiving technology greatly improves the receiving quality in all conditions. This transmitter is specially designed to meet all necessary transmission requirements of broadcasting standard.



ST6200DB-HDF is particularly well suited to providing robust wireless video links in mobile and non-line-of-sight urban environments, to a range of over 1 km. Built-in AES128/256-bit encryption ensures security – subject to export controls. Various frequency bands are available within 300 MHz to 4.4 GHz.



Strengths:

  • New streamlined enclosed trend design
  • IP66 tri-proof standard grade
  • Low temperature area subzero 40°C
  • Manual setting dual AES encryption
  • Devices come with LCD flat panel display parameters,adjustable parameters
  • High quality digital video processing and H.264/MPEG-2 video CODEC
  • AV port: HD-SDI, High Definition Multimedia Interface port and CVBS input
  • Resolution: Full HD 1080P (1920*1080)
  • Standard backpack, good heat dispersion
  • Stable image and video transmission in high speed moving and interference area
  • Strong NLOS transmission
  • Power: 1~5W adjustable



Application:
Mainly transfer way is individual soldier~Car~Control center~Internet to different city control center.
By front-end staff carry launches equipment will transfer the audio and video to communications command car; communications command car as repeater put wireless signal extends to local command center; local command center directly transfer video signal access monitor for real-time monitoring and debugging command, another way through city domain network or Wan transmission to national provinces command Center; command center can directly transfer video signal access monitor for real-time monitoring, while can using network monitoring, Connect PC to browse audio and video.



Transmitter System
Frequency 138Mhz~4400MHz Customizable
Output Power 1~5W adjustable
Channel Bandwidth 2/2.5/4/8 Mhz
Encryption Scheme Manual AES double encryption
Transmit Distance Air>70km, Marine>30km, City>5km, Suburb>7km, NLOS:1~3km
Power Supply Special battery DC14.4V SONY V style
Receiver System
Frequency 138Mhz~2470MHz
Receiving Sensitivity 2MHz@-103dBm/2.5MHz@-102dBm/4MHz@-100dBm/8MHz@-97dBm
Signal LCD shows the signal strong
Receiving Polarization vertical, dual antenna receiving
Received Technical Space diversity receiving technical
Filter Technical built-in high performance cavity filter technical
Power Supply AC220V or DC12V
System
Modulation COFDM
Working Temperature -40℃~60℃
Code stream 1.5Mbps~6Mbps
Delay 300ms
Error Rate ≤10-6
Usage mode Individual weapon
Video and Audio
Compressed Format H.264/MPEG-2
Video Input Digital HD-SDI, Analog CVBS audio video or Digital High Definition Multimedia Interface, Analog CVBS
Image Resolution HD1080P(1920*1080), compatible 1080I, 720P, 480P and SD
Video/Audio input port BNC, High Definition Multimedia Interface, Lotus
Image fps Standard 24,50,60 fps
Packaging Details
Transmitter Size 198*130*49 mm (L*W*H)
Receiver Size 1U, 19 inch case, 480*280*45mm
Transmitter Weight 1.5KG
Receiver Weight 4.0KG
