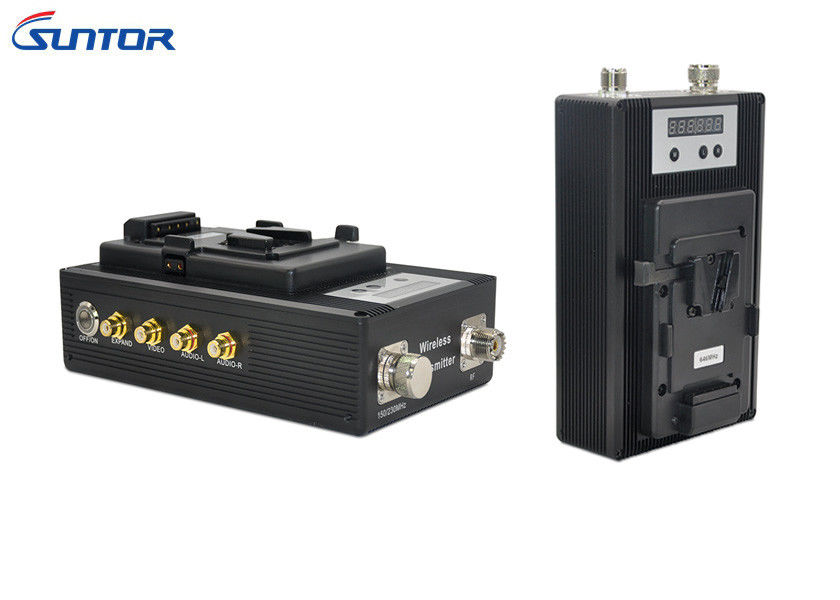

300-4400MHz Manpack Analog Video Transmitter , Analog Transmitter And Receiver

Basic Information
Place of Origin: China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST6200DB-SD
Minimum Order Quantity: 1 set
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Modulation: COFDM Working Frequency: 138MHz~4400MHz Adjustable
Output Power: 1~5W(customized) Resolution: 720*576, 25fps
Analog Interface: CVBS Video Format: PAL / NTSC
Transmission Distance: Airborne Area>80km; Marine Area>40km; Urban Area >7km; Suburb Area>10km Power Supply: DC 14.4V

Product Description

300~4400MHz manpack 5W analog SD video transmitter up to 10km



Introduction:
ST6200DB-SD narrow bandwidth series wireless video transmission system(Strict compliance with requirements of the public security departments transmission frequency bandwidth: Only use 2MHz bandwidth), using narrow bandwidth COFDM modulation techniques, and combining diversity reception of foreign advanced technology, comparing with the 8MHz equipments, this model is more sensitive, stronger anti-interference, supports longer distance. It is very suitable used in the complex environment; Audio video encoder uses the H. 264/MPEG-2 standard, definition is up to DVD(720*576), clear picture quality, bright colors, image smooth.



Functions & Features:

  1. Default power output: 1W and maximum 5W
  2. Working frequency customized within range 300MHz to 4.4GHz
  3. Video input PAL/NTSC optional (default as PAL)
  4. Audio and video signal simultaneously input, one-channel video input
  5. Left/right channel audio and unbalanced stereo input
  6. Fully-enclosed waterproof case, dustproof and good impact resistance
  7. Distance no less than 10km in LOS and 1km in NLOS



Transmitter parameter

Modulation Working frequency 300MHz~4.4GHz
Output power 1~5W adjustable on LCD
Modulation COFDM (64QAM, 16QAM, QPSK)
Channel bandwidth 2/2.5/4/8MHz
Encryption mode AES 128Bit/SUNTOR Basic Scrambling
Code stream 2Mbps~12Mbps
Audio and video Compression format H.264(Embedded Audio)
AV input BNC
Video Resolution

PAL 720 x 576

NTSC 720 x 480

Image frame rate 30fps
Video Input Interface BNC female port
Audio Input Interface BNC female port
Power supply

1. Built-in Lithium Battery: DC 14.4V

2. External Power In: DC12V~16.8V

LCD display Display and Manually Adjust Parameters
Power switch ON/OFF
Size 200×125×50 mm (L×W×H)
Weight 1.5kg



Applications:

  • Commercial
  • Industrial
  • Military
  • Police

Available for Long Range Line-of-Sight and Urban Non-Line-of-Sight applications.
