COFDM High Definition Multimedia Interface Wifi Video Transmitter , Wireless Camera Receiver And Transmitter

  • COFDM High Definition Multimedia Interface Wifi Video Transmitter , Wireless Camera Receiver And Transmitter
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6200TKMD-HD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency 300MHz～4.4GHz Adjustable
Output Power 1~5W Adjustable Range 5-10km(LOS), 50m-1km(NLOS)
Code Stream 2Mbps～12Mbps AV Input High Definition Multimedia Interface, SDI, CVBS(optional)
Weight 1.5kg
High Light

wireless hd transmitter

,

wireless hdmi video transmitter
Leave a Message
Product Description

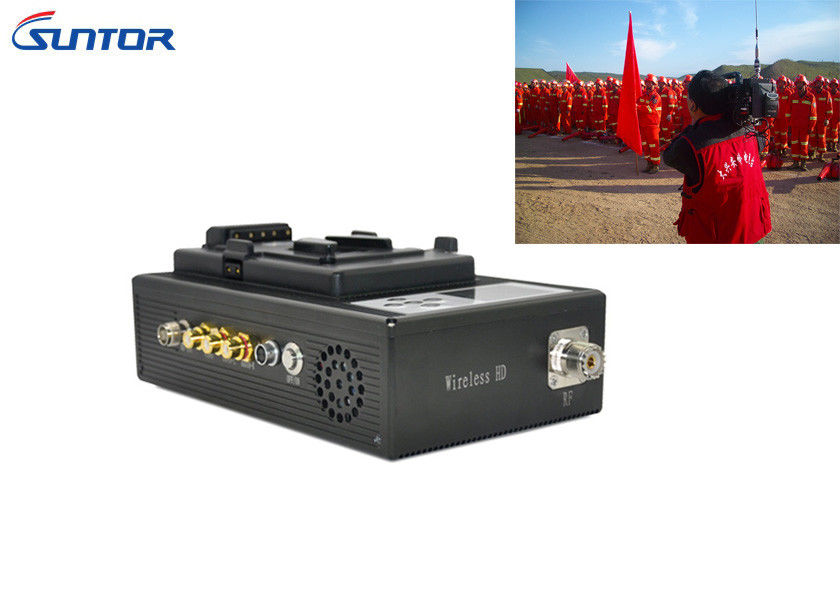

High Definition Multimedia Interface Portable video transmitter COFDM video camera wireless transmitter



Introduction:
The equipment can transmit images in a non-line of sight environment, over 0.5 mile depending on mode and frequency.



Designed to offer maximum flexibilitv in the limited or crowded spectrum in today's production environment, the Suntor COFDM transmitter has a variety of video input options including composite, SDI, HD-SDI and High Definition Multimedia Interface. which is particularly useful when accessing material in the field from pro-sumer and semiprofessional equipment.



Feature:

  • Lithium battery for power supply.
  • Convenient to be carried and installed.
  • COFDM modulation and MPEG-2 video compression.
  • Firm enclosure with built-in cooling fans, waterproof and shockproof.
  • Great security by encryption of AES 128 bit.
  • Modular design and highly integrated.
  • Good transmission with high definition image and stereo audio.
  • Adjustable working frequency, LCD board displays the working frequency.
  • Stable transmission in NLOS(non line-of-sight)and high speed mobile conditions.
  • The transmission range up to 10km in LOS (line-of-sight) environment.



Applications:
The system has been widely used in many fields such as: forces,first responders,security services,Fire services,Sports coverage,homeland security,traffice management, command and controls posts,airport,border control,magior incident support and etc.









Modulation

 Working frequency 300MHz～4.4GHz
Output power 1~5W adjustable
Range 500-1km(NLOS), 5-10km(LOS)
Modulation COFDM (64QAM, 16QAM, QPSK)
Channel bandwidth: 2/2.5/4/8MHz
Encryption mode AES 128Bit/SUNTOR Basic Scrambling
Code stream 2Mbps～12Mbps
Usage mode V-mount
Audio and video Compression format H.264(Embedded Audio)
AV input High Definition Multimedia Interface, SDI, CVBS(optional)
HD Format

1080p/23.98, 1080p/24, 1080p/25

1080p/29.97, 1080p/30, 1080P/60

1080i/50, 1080i/59.94, 1080i/60

720p/50, 720p/59.94, 720p/60

720p/25, 720p/29.97, 720p/30

720p/23.98, 720p/24

480P
SD Format

PAL 720 x 576

NTSC 720 x 480
HD Video Input SDI or High Definition Multimedia Interface
SD Video Input BNC
Audio Input Connectors SDI, High Definition Multimedia Interface or BNC
Others Antenna Connector SMA
Power supply

1. Buckle Lithium Battery DC14.4V

2. External Power In: DC 12~16.8V
Power switch ON/OFF
LCD display Display and Manually Adjust Parameters
Size 200×125×50 mm (L×W×H)
Weight 1.5kg
