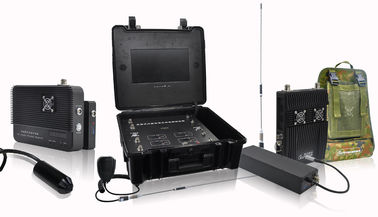

UHF Frequency Professional COFDM Video Transmitter Wireless For Defense

  • UHF Frequency Professional COFDM Video Transmitter Wireless For Defense
  • UHF Frequency Professional COFDM Video Transmitter Wireless For Defense
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6200TKMD-HD
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency 300MHz～4400MHz
Output Power 1~5W Adjustable Range 5-10km(LOS) / 50m-1km(NLOS)
Channel Bandwidth 2/2.5/4/8MHz Usage Mode V-mount
HD Video Input SDI Or High Definition Multimedia Interface Weight 1.5 Kg
High Light

audio video transmitter

,

cofdm video sender

,

Defense COFDM Video Transmitter
Leave a Message
Product Description

300-900MHz low frequency professional wireless COFDM video transmitter for broadcast



Introduction:
The equipment can transmit images in a non-line of sight environment, over 0.5 mile depending on mode and frequency.



Designed to offer maximum flexibilitv in the limited or crowded spectrum in today's production environment, the Suntor COFDM transmitter has a variety of video input options including composite, SDI, HD-SDI and High Definition Multimedia Interface. which is particularly useful when accessing material in the field from pro-sumer and semiprofessional equipment.



Features:

  • COFDM modulation technology insure the stability of signal
  • HD-SDI/High Definition Multimedia Interface and BNC input
  • Narrow and wide band: 2/2.5/4/8MHz adjustable
  • HD video,embedded audio and composite video input
  • Balanced stereo audio input
  • Matched with dual V battery mounts
  • 1-5W rf power adjustable
  • Special for cameraman live broadcasting



Applications:
At the front-end personnel, scouts, firefighters, rescue personnel or television interview personnel using small size, backpack or buckle format transmitter transmit the live signals to the rear command vehicle Then command vehicle will receive the image displayed on the monitor via the receiver which convenient for real time understanding of the site condition and timely command









Modulation

 Working frequency 300MHz～4.4GHz
Output power 1~5W adjustable
Range 500-1km(NLOS), 5-10km(LOS)
Modulation COFDM (64QAM, 16QAM, QPSK)
Channel bandwidth: 2/2.5/4/8MHz
Encryption mode AES 128Bit/SUNTOR Basic Scrambling
Code stream 2Mbps～12Mbps
Usage mode V-mount
Audio and video Compression format H.264(Embedded Audio)
AV input High Definition Multimedia Interface, SDI, CVBS(optional)
HD Format

1080p/23.98, 1080p/24, 1080p/25

1080p/29.97, 1080p/30, 1080P/60

1080i/50, 1080i/59.94, 1080i/60

720p/50, 720p/59.94, 720p/60

720p/25, 720p/29.97, 720p/30

720p/23.98, 720p/24

480P
SD Format

PAL 720 x 576

NTSC 720 x 480
HD Video Input SDI or High Definition Multimedia Interface
SD Video Input BNC
Audio Input Connectors SDI, High Definition Multimedia Interface or BNC
Others Antenna Connector SMA
Power supply

1. Buckle Lithium Battery DC14.4V

2. External Power In: DC 12~16.8V
Power switch ON/OFF
LCD display Display and Manually Adjust Parameters
Size 200×125×50 mm (L×W×H)
Weight 1.5kg
