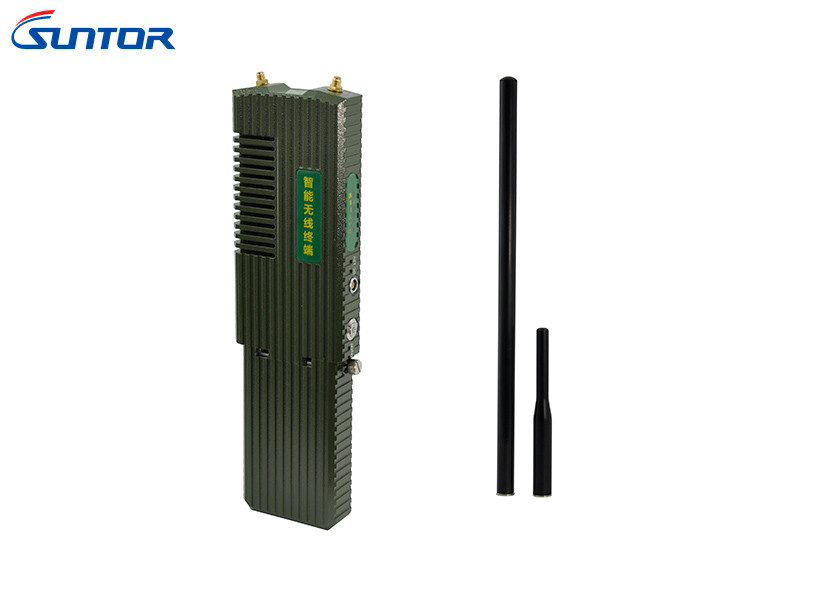

Ad Hoc Network Multicast Drone Video Transmitter Wireless IP Mesh Transmitter

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9601MS
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Modulation TDD Frequency 570~590MHz/1400~1420MHz
RF Power 30dBm Diversity Mode Transmitting And Receiving Diversity
Frequency Bandwidth 5/10/20MHz Working Temperature -20℃~+65℃
Air To Ground Range 10km+ Built-in Battery 12V 2600mAh

drone transmitter and receiver


uav video transmitter


26dBm multicast drone video transmitter

Leave a Message
Product Description

26dBm ad hoc network multicast drone video transmitter wireless IP mesh module


ST9601MS Specs.pdf

Based on the growing demand of the proprietary communications market,our 1st Mesh product model module can able to deliver video,voice,and data signals over IP networks in a complex environment with a wide coverage,strong diffraction ability,high transfer rate and self-defined security encryption.The Mesh is suitable not only for PTP communication,but also centerless multi-hop ad hoc network. According to the work environment and the number of nodes, it throughput up to 80Mbps, transmit distance can be extended through multi-hop. As Mesh self-organizing / self-healing features make it very suitable for motion surveillance with high quality image and emergency communication.

  • Centerless ad-hoc MESH networks
  • Optional frequency: 570~590MHz/1400~1420MHz
  • High transfer rate: up to 80Mbps
  • Strong receiving sensitivity: -92dBm
  • High data throughput rates
  • Robust reliable wireless IP networks
  • Operates between fast moving UAV
  • Rapidly deployable wireless surveillance system

grade machine design, lightweight, for portable. Shell-case of metal material, level designed and lightweight to take full consider of heat dissipation, security, harsh working conditions and other factors, and easy for deployment and operation. We design and manufacture the all IP mesh products and the core technology and intellectual property rights in our own hands,so that some sensitive customers and projects can be assured of purchasing from us. And we accept of flexible customization based on user needs.Product is widely used in public security, armed , fire, disaster relief and other emergency communications systems; UAV aerial, electricity, water, waterway, border and other monitoring.


Technical Parameters

Working Frequency


500~1400MHz(On request)

Bootloader U-boot
2412-2462MHz(Wifi) Linux 3.18.19
1559-1577MHz(GPS) Wired Network IP address configurable
Bandwidth 5/10/20MHz Subnet Mask Configurable
20MHz(Wifi) Wireless Network Working Frequency Adjustable
RF Power 1W Bandwidth Adjustable
0.2W(Wifi) RF Power Adjustable
Receive Sensitivity -92dBm Support Adhoc
-90dBm(Wifi) ESSID/BSSID Configurable
Duplex Mode TDD Supports adaptive rate and fixed rate modes
Modulation BPSK/QPSK/16-QAM/64-QAM
Diversity Mode Transmitting and receiving diversity Support Distance Optimization
Upstream and downstream bandwidth Two-way bandwidth up to 80Mbps Support RTS/CTS Setting
40Mbps(Wifi) Connection Status Display
Antenna 2*N type Antenna Interface Wifi Working Frequency Adjustable
1*Wifi SMA Antenna Interface RF Power Adjustable
1*GPS SMA Antenna Interface Support AP mode
Ethernet 1*100Mbps Ethernet Interface ESSID Configurable
Serial Interface

Support RS232

(Bit rate 9600-115200bps Adjustable)

Indicator 1*System States Indicator Light Supports adaptive rate mode
1*Ethernet Status Indicator Light Support WMM/802.11e QoS
1*Wifi States Indicator Light Support Distance Optimization
3*Network Signal Strength Indicator Light Support RTS/CTS Setting
Key 1*Reset Button Support MAC address filtering
Power DC9-28V Connection Status Display
Power Consumption


Standby Current 320mA

Ad Hoc Network Current 460mA

Data Transmission Current 1.2A

WPA/WPA2/WEP Encryption
Battery 12V2600mAh Hidden ESSID
Encryption AES128
Battery Endurance 2hours Support Network transparent transmission GPS original positioning data
Dimension 141.5mm*88mm*30mm Support web page management
Temperature Storage: -30℃~+90℃ Management Support SSH security management
Working: -20℃~+65℃ Import/export configuration information
Weight 820g(Including Battery) Restore factory configuration
Serial Port 1*Serial Port(On request) Update firmware online
Moving Speed >200km/h
