400Mw Cofdm Wireless Video Transmitter , Uav Drone Cofdm Video Link Light Weight

  • 400Mw Cofdm Wireless Video Transmitter , Uav Drone Cofdm Video Link Light Weight
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST5XHPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation TDD-COFDM Frequency Range 2.4GHz(2.402 - 2.478 GHz)
Distance 5km (unobstructed, Free Of Interference) Duplex Data Support TTL-RS232/485
System Latency 12-25ms Video Input/Output High Definition Multimedia Interface
High Light

cofdm hd wireless transmitter

,

long range video transmitter
Leave a Message
Product Description

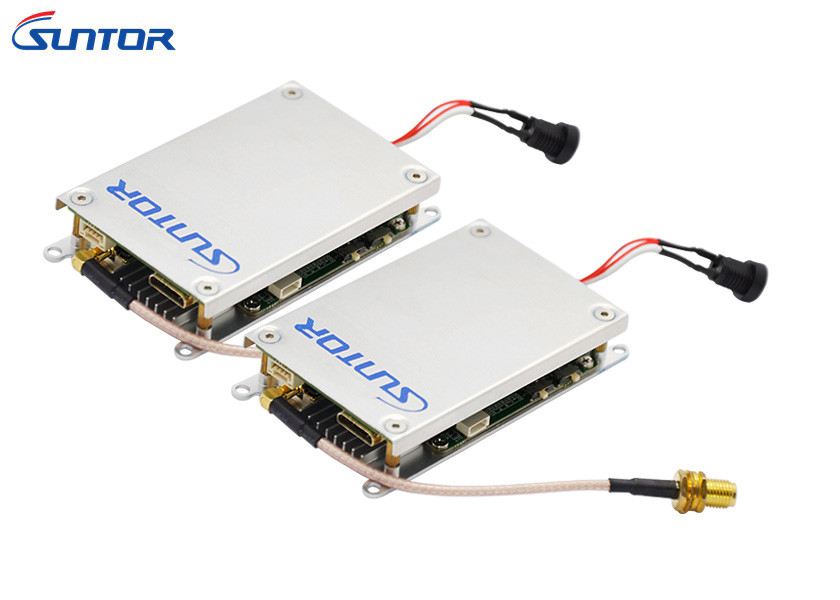

400Mw Cofdm Wireless Video Transmitter , Uav Drone Cofdm Video Link Light Weight



ST5XHPT Specs.pdf



Brief Desscription:

  • HD 720P
  • less than 25ms latency
  • 2.4GHz(2.402-2.478 GHz)
  • Air to ground 5km transmission distance
  • Video Input/Output: High Definition Multimedia Interface
  • Small size: 73*48*14mm
  • Lightweight: Tx 58g / Rx 58g



Product Features:

  • 1. Transmission power 400mW;
  • 2. Extreme lightweight and Small dimensions;
  • 3. Duplex Data Transmission: TTL-RS232/485
  • 4.Applied COFDM modulation, MPEG-2 / H.264 compression;
  • 5. Perfect for drone UAV video transmission applications;
  • 6. High quality of video transmission, no mosaic, no dragging phenomenon, stable power with adjustable dynamic power.



The small size and ultra-low power consumption make the ST5XHPT transmitter ideal for UAV installations, enabling true long range HD quality transmission from these increasingly popular devices for the first time. Optional lightweight, low power consumption amplifiers are also available for even greater range capability.



Parameters

Frequency 2.4GHz (2.402-2.478GHz)
RF Transmitting Power 26dBm (400mW)
Transmission Range Air to ground 5km
Frequency Bandwidth 2/4/6/8MHz
Adjustment Mode of Bit Rate Software adjustment
Start-up Time < 30s
Two-way Function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL
Date Rate Duplex 3-5Mbps
Power Supply DC 7-18V
Power Consumption Tx: 3Watts Rx: 3Watts
Size 68×48x15mm
Net Weight Tx: 68g Rx: 68g
