Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST-3080TDA
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
TDD-COFDM |
Frequency Range: |
UHF 300~800MHz |
Transmission Power: |
2W/5W/10W(optional) |
Transmission Rate: |
2Mbps～8Mbps |
LOS Range: |
LOS 10-15km, Horizontal On Sea 10-30km |
NLOS Range: |
2-8km |
Video Interface: |
Double Lan Port |
Power Supply: |
DC 12V/5A |
Modulation: |
TDD-COFDM |
Frequency Range: |
UHF 300~800MHz |
Transmission Power: |
2W/5W/10W(optional) |
Transmission Rate: |
2Mbps～8Mbps |
LOS Range: |
LOS 10-15km, Horizontal On Sea 10-30km |
NLOS Range: |
2-8km |
Video Interface: |
Double Lan Port |
Power Supply: |
DC 12V/5A |

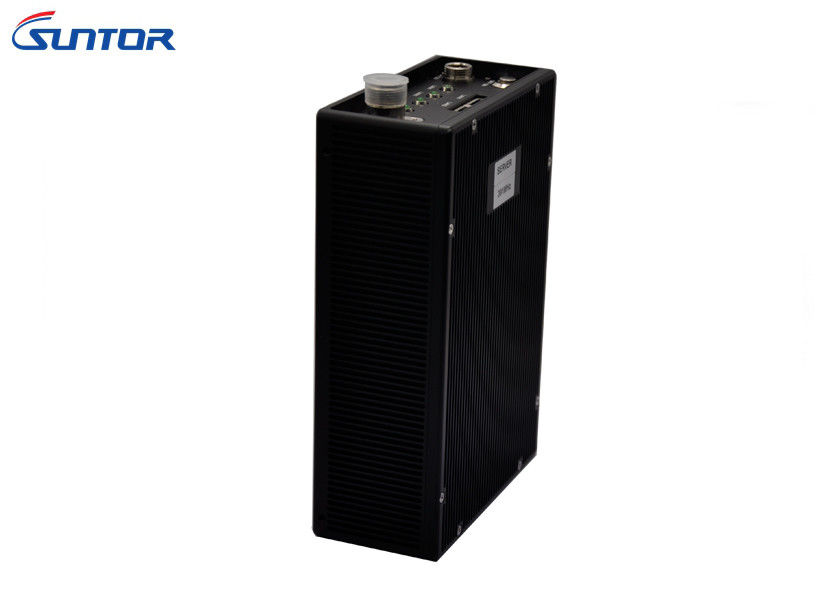

10km UHF NLOS digital data and video COFDM wireless transmitter
Introduction:
TDD-COFDM is our new NLOS(non-line of sight) two-way data transmission system and wireless mobile emergency communication private network, which is independent of telecom operators wireless network. Its confidentiality, security, mobile performance that is better than Telecom operators. Also is a fully transparent data encryption transmission emergency security network.
Advantage:
Two-way communication NLOS by signal frequency
Support PTP&PTMP network composing
Support dual-way transmission, support to package form data, audio and video data, asynchronous serial data communication
UHF 300~800MHz, Strong transmission ability in NLOS
Stable digital signal transmission in high speed movement and multi interference environment
Double standard Ethernet port, facilitate extension
Portable plug &play with omni antenna to receive
Support customized design
Application:
Suitable for vehicles cars, boat boats, cars building, ship base station, aircraft building/vehicle.
Widely used in public security, armed , fire, field armies, other departments and broadcasting, urban management, civil defense, transportation, customs, oil, mining, water, electricity, geology, finance and other relevant state departments
| Modulation | |
| Frequency | 300～800MHz customize |
| Modulation | TDD COFDM |
| Bandwidth: | 5/8MHz |
| Output power | 2W/5W/10W(optional) |
| System | |
| Transmission mold | Full Duplex |
| Transmission Protocol | Standard TCP/IP, transparent transmission |
| Transmission type | 10/100Bate-T, Ethernet self-adapting |
| Transmission rate | 2～8Mbps |
| Error rate | ≤10-6 |
| Transmission distance | NLOS: 2-8km, LOS 10-15km, Horizontal on sea 10-30km(LOS) |
| Receiving sensitivity | -92dBm |
| Receiving mode | Omni |
| Mode of application | Hang, Fixed |
| Other | |
| RF interface | N-type Female |
| Ethernet interface | Two RJ45 Ports with connection indicator light |
| Signal strength indicator light | STATE1,STATE2 |
| Power supply | DC 12V/5A |
| Power connector | Aviation plug |
| Operating humidity | No less than 95% (Non - Condensing) |
| Power switch | Press lock with light switch |
| Dimension | 186×126×58mm (L×W×H) |
| Weight: | 1.2KG |
