Full Duplex COFDM Long Range Wireless Video Transmitter , 2.4 Ghz Wireless Video Receiver

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModulation | TDD-COFDM | Frequency Range | 2405-2470MHz |
---|---|---|---|
Transmission Power | 20dBm-30dBm Adjustable | Channel Bandwidth | 4/8MHz Adjustable |
Transmission Rate | 2Mbps~12Mbps | Transmission Mold | Full-Duplex/ Half-duplex |
Transmission Range | Horizontal On Gound: 1-10km (LOS), Air To Ground: 8-20km, Horizontal On Sea 10-30km(LOS) | Video Interface | RJ45 / RS232 / RS422 / RS485 |
High Light | wireless hdmi video transmitter,long range wireless video transmitter |

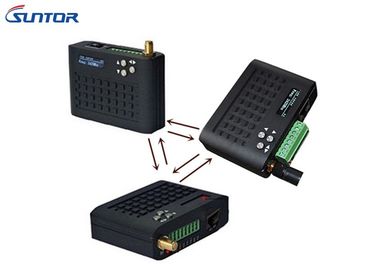

2.4GHz long range Full-Duplex Wireless COFDM Transmitter Receiver
Product description:
As its small size and lightweight, the transceiver is widely used in UAV, flight test, maglev high-speed rail and automatic robot and more complex environments.
Features:
- Provide up to 12Mbps of data flow, dynamic adaptive rate allocation technology
- Smart settings, simple operation, easy to use
- Supports transparent PTP and PTMP network technology
- Safety with AES 128 bit, can set user’s password
- Supports non line of sight (NLOS) high-speed mobile transmission
- Provide standard RS-232 and RS-485 + RJ45 Ethernet
- Transmit/receive video audio, data and other multimedia signals simultaneously Supports high standards of Industrial and level applications
- Small volume, light weight, easy to carry, the radiating aluminum casing
- High clear OLED digital display
Application:
Suitable for using in complex environment: small size, light weight, and portable, usually use for short range high speed wireless data transmission, aerial long range high speed wireless data transmission. For special transmission: UAV, light UAV, rotorcraft, MUAV, drone aircraft, UUV, unmanned ship, airship, ACTUV, high-speed rail, UGV, Unmanned machine etc...for regular transmission at land, suitable for short range NLOS or NOS data transmitting. With digital and data interface, digital Ethernet interface, standard industrial RS-232,RS-422,RS-485 interface, customized analog audio, video input intercom interface.
Modulation |
|
Frequency Range |
2405-2470MHz(Adjustable), Adjust wavelength 1Mhz on LCD |
Frequency Channel |
TDD |
Modulation |
COFDM |
Bandwidth |
4/8MHz adjustable on LCD |
Output power |
100mW-1W adjustable |
Encryption |
AES 128-bit encryption, manually enter KEY code |
System |
|
Transmission mold |
Full-Duplex/ Half-duplex |
Transmission Protocol |
standard TCP / IP , transparent transmission, serial asynchronous data |
Data Type |
10/100Bate-T Ethernet, industry RS-232, RS-422-RS485 standard |
Analog audio |
Customized analog audio input connector |
Transmission rate |
2Mbps~12Mbps |
Transmission delay |
10~30ms |
Networking mode |
Point to Point, Point to Multi Point |
Error Rate |
≤10-6 |
Transmission distance |
Horizontal on gound: 1-10km (LOS), Air to ground: 8-20km, Horizontal on sea 10-30km(LOS) |
Receiving sensitivity |
-99dBm |
Receiving mode |
Omni |
Application |
Portable , aerial photography , aerial operation , short distance data transmission |
Physical interface |
|
Ethernet interface |
RJ45 |
RS-232/422/485 |
Six pin terminal blocks |
Power Input |
Six pin terminal blocks |
Audio input interface |
Standard 3.5 audio interface |
RF interface |
SMA Female |
Other |
|
Power supply |
DC7-17V |
LCD |
LCD to display and adjust the parameters |
Equipment Color |
Black |
Dimension |
75*51*22mm (L×W×H) |
Weight |
120g |
