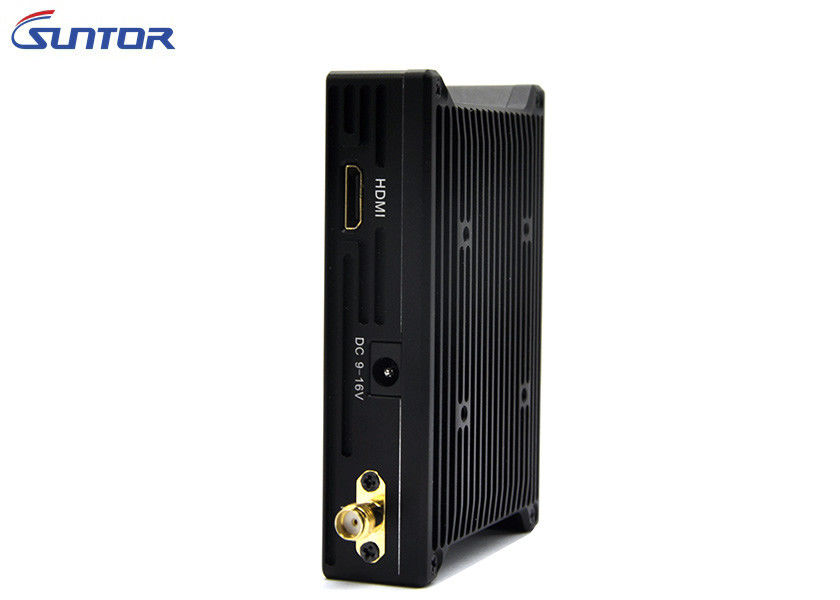

Digital Video COFDM Wireless Transmitter 400mW Output Power , Stable Signals
|Modulation||COFDM||Frequency Range||138MHz~2GHz (customizable)|
|Output Power||400mW||Transmission Distance||LOS: 1~2KM, Air To Earth: 1~5KM, NLOS>200m|
|Channel Bandwidth||6MHz||Image Resolution||HD 720P|
|Compression Format||H.264/MEG-2||Video Audio Input/output Port||High Definition Multimedia Interface|
wireless hdmi video transmitter,
long range wireless video transmitter
400mW Nlos and Moving Camera Transmission COFDM Wireless Video Transmitter
Mainly used in UAV video Aerial photography transmission scenario, the device will transmit video signal to the receiver and display video images,can do real-time monitoring.
ST6200BM-HD mini portable HD wireless video transmission equipment is new generation of real-time broadcast-quality high-resolution image transmission system. It adopts the current leading COFDM modulation technology and relative narrow-band frequency 6MHz, it has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and real-time transmit high quality image in NLOS or complicated working environment.
- High quality digital video processing
- COFDM modulation, H.264 coding and encoding
- Vibration and shock resistant
- Real-time transmission system, delay time for end-to-end is less than 300ms
- Great action ability, can transmit images voice stably in the condition of high speed movement and multi-path interference
- Support NLOS (non-line of sight) transmission, strong diffraction capability
- Long range transmission distance
- Spatial diversity reception ability, support high-speed mobile transmission
- Stable signals, image clear and stable, has no mosaic or drag phenomenon
- Extreme lightweight and rugged housing ,mini size
|Frequency Range||138MHz~2GHz (customizable)|
|Transmission Distance||LOS: 1~2KM, Air to earth: 1~5KM, NLOS>200m|
|Error Correcting Mode||FEC@Viterbi (1/2, 2/3, 3/4)|
|Guard Interval||1/32, 1/16, 1/8, 1/4|
|Usage Mode||Easy carrying, aerial photo, Hidden, NLOS transmit|
|Video Audio Part|
|Image Resolution||HD720P (1280*720)|
|Image fps||Standard 24,50,60 fps|
|Video Audio Input/output port||Digital High Definition Multimedia Interface port|
|RF Physical Interface||SMA|
|Transmitter Light||Video screen, channel shows|
|Receiver Signal||Light shows the signal strong|
|Alarm Output||Video loss, image loss|
|Other Function||Comes with restart button and channel checking button|
|Power Supply||Transmitter||DC2.75 port, DC9-16V|
With the feature of small size, light weight(only 175g) and easy for secret portable, this “Spy” type wireless video transmitter can be hung on the waist, put in brief case. It is always applied in criminal investigation,UAV etc.
