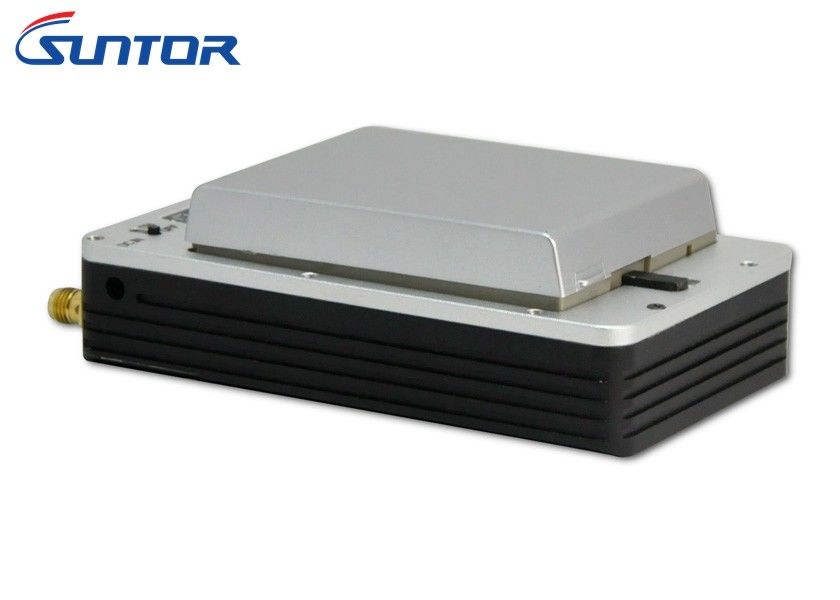

Portable 175g Hidden Camera Video Transmitter For Unviewable Mobile Transmission

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST6200TPS-SD
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 3-5 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Modulation: COFDM Working Frequency: 300MHz~2GHz Adjustable
Output Power: 100~400mW Adjustable Channel Bandwidth: 2/2.5/4/8MHz
Transmission Signal: Analog Video Signal Compression Formats: H.264/ MEG-2
Transmission Distance: Air To Ground:10-30km; LOS: 1-10km; NLOS: >500m Weight: 175g

Product Description

Portable 175g secret camera video transmitter for unviewable mobile transmission



Introduction

It has character of super lightweight and small size, use MPEG2 coding format and COFDM (coded orthogonal frequency division multiplexing) digital modulation, provide high quality image in resolution 720*576. Support NLOS transmission and reception as well high speed mobile transmission. Can be carried in your pocket/briefcase for secret evidence. It can send live video of the scene circumstances to the rear command post. Widely used in UAV, public security organs, procuratorate, court and security bureau and more.



Features

  • COFDM modulation, stable transmission
  • MPEG-2 video compression, DVD video quality
  • Modular design and highly integrated
  • NTSC/PAL automatically adapt, support user adjustable
  • Supports high-speed mobile NLOS (non-light of sight) transmission
  • Lithium battery for power supply (continuous working time is 1 hours max)
  • Adjustable working frequency, bandwidth, RF power and more.
  • Transmission security by encryption of AES 265 bit
  • Good quality image without any mosaic
  • Transmitter only has 175g net weight, very easy for portable and UAV, robot applications
  • Matched with multifunction amplifier for longer range requirement
Transmitter parameter
Working frequency 300MHz~2GHz adjustable
Output power 100~400mW adjustable
Modulation COFDM
Channel bandwidth 2/2.5/4/8MHz
Error correction mode FEC@Viterbi (1/2,2/3,3/4)
Protection interval 1/32,1/16,1/8,1/4
Encryption Dual AES encryption can be set manually
System section
Standard MPEG-2
Date rate 1.5Mbps~6Mbps
BER ≤10-6
Transmission distance Air to ground: 10-30km; LOS: 1-10km; NLOS: >500m
Use Portable , aerial , close shot secret visit , video transmission in short NLOS distance
Audio video section
Compression formats H.264/MPEG-2
Video input PAL/NTSC
Audio input Left / right
Image clarity Resolution :720*576,Frames per Second: 25 f/s
Video input port Standard able 2.5 AV connect port with 5V power output
Audio input port Standard able 3.5 AV connect port with 5V power output
Other section
Display LED display function parameters and adjust parameters , boot 3 seconds automatically turn off the display
Battery power supply DC7.2V/1400mA or 2200mA
External power supply Standard DC 2.5 connect port, Voltage:DC 7 -- 16 V
Power switch ON/OFF
Coloer Pure black , green, black, silver optional
Size 100*58*18mm (L×W×H)
Weight 175g
