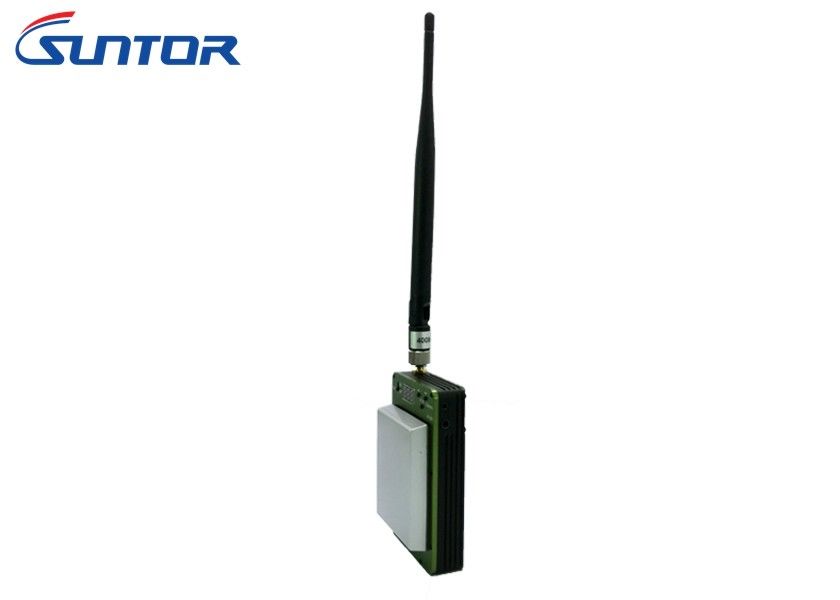

H.264 COFDM Mini Video Transmitter PAL / NTSC Standard With Av Port

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST6200TPS-SD

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

micro fpv camera and video transmitter

,

micro fpv quadcopter

,

COFDM Mini Video Transmitter

Modulation:
COFDM
Working Frequency:
300MHz~2GHz Adjustable
Transmission Power:
20~27dBm(adjustable)
Channel Bandwidth:
2/2.5/4/8MHz(adjustable)
Resolution:
720*576
Video Format:
NTSC / PAL
Compression Formats:
H.264 / MEG-2
Transmission Range:
Air To Ground:10-30km; LOS: 1-10km; NLOS: >500m
Net Weight:
175g
Modulation:
COFDM
Working Frequency:
300MHz~2GHz Adjustable
Transmission Power:
20~27dBm(adjustable)
Channel Bandwidth:
2/2.5/4/8MHz(adjustable)
Resolution:
720*576
Video Format:
NTSC / PAL
Compression Formats:
H.264 / MEG-2
Transmission Range:
Air To Ground:10-30km; LOS: 1-10km; NLOS: >500m
Net Weight:
175g
Description
H.264 COFDM Mini Video Transmitter PAL / NTSC Standard With Av Port

300-900Mhz 400mw H.264 COFDM mini video transmitter PAL / NTSC standard with av port



Product description:

ST6200TPS-SD mini H.264 COFDM wireless video transmitter. Using the core of 4th generation mobile communication COFDM multi carrier modulation technique and efficient H.264 compression encoding method, the equipment have high brightness and low power consumption OLED display control interface,this equipment adopts integrated design, it has integrated of the digital modulation and digital audio or video compression in one, the equipment can clear transmission of digital video or audio in fast-moving mobile and NLOS. Small size,light weight. It can also transmission clear video and audio in a barrier building environment.



The product is widely used in high quality and high standards of aerial photography, news, sports, hidden investigation, video surveillance, wireless video transmission areas.



Features:

  1. Using COFDM modulation technology, H.264 image coding technology
  2. Support SD 576,480
  3. High-performance, High- capacity lithium battery (replaceable )
  4. Small size, Lightweight,Easy to carry, using air-cooling fin aluminum shell
  5. Support NLOS, High-speed movement transmission
  6. Highly integrated modular design
  7. Using high brightness, low power OLED display control interface



Product application:

The product is widely used in covert investigation, video surveillance, wireless video transmission.



Transmitter parameter
Working frequency 300MHz~2GHz adjustable
Output power 100~400mW adjustable
Modulation COFDM
Channel bandwidth 2/2.5/4/8MHz
Error correction mode FEC@Viterbi (1/2,2/3,3/4)
Protection interval 1/32,1/16,1/8,1/4
Encryption Dual AES encryption can be set manually
System section
Standard MPEG-2
Date rate 1.5Mbps~6Mbps
BER ≤10-6
Transmission distance Air to ground: 10-30km; LOS: 1-10km; NLOS: >500m
Use Portable , aerial , close shot secret visit , video transmission in short NLOS distance
Audio video section
Compression formats H.264/MPEG-2
Video input PAL/NTSC
Audio input Left / right
Image clarity Resolution :720*576,Frames per Second: 25 f/s
Video input port Standard able 2.5 AV connect port with 5V power output
Audio input port Standard able 3.5 AV connect port with 5V power output
Other section
Display LED display function parameters and adjust parameters , boot 3 seconds automatically turn off the display
Battery power supply DC7.2V/1400mA or 2200mA
External power supply Standard DC 2.5 connect port, Voltage:DC 7 -- 16 V
Power switch ON/OFF
Coloer Pure black , green, black, silver optional
Size 100*58*18mm (L×W×H)
Weight 175g



Receiver



Product description:

Vehicle-mounted HD H.264 / MPEG2 COFDM wireless video Receiver,Using standard 1U frame type design,simple and efficient control interface,Output SD and HD multiple video at the same time,The product is widely use in security,fire,emergency communication and other fields.To receive the wireless signal in the NLOS(non line of sight) and fast-moving mobile environment,the equipment can realize remote video transmission and monitoring.



Features:

  1. Support H.264 SD resolution
  2. Support NLOS , It can transmit in high-speed movement
  3. Digital operation panel and display, easy to use
  4. Standard 1U case, Small size, Extended performance
  5. Aluminum alloy design, dustproof,moistureproof, anti vibration, anti impactH.264 COFDM Mini Video Transmitter PAL / NTSC Standard With Av Port 0
