Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: EF5103
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Working Frequency: |
5.125-5.850GHz |
RF Power: |
Max 27dbm (500mw) |
Input Voltage: |
Wide Voltage Input DC 12V-24V |
Power: |
≤8W |
Waterproof Grade: |
IP65 |
Size: |
246*106*60mm |
Working Frequency: |
5.125-5.850GHz |
RF Power: |
Max 27dbm (500mw) |
Input Voltage: |
Wide Voltage Input DC 12V-24V |
Power: |
≤8W |
Waterproof Grade: |
IP65 |
Size: |
246*106*60mm |
IP65 Wireless Ethernet Bridge with Frequency Scanning Tool for Optimal Performance
Introduction
EF5103 is an outdoor IP65 wireless transmission bridge with integrated antenna and RF module design for 3km. It is easy to install, maintain and debug. With built-in 12dbi dual-polarized directional antenna, it supports point-to-point and point-to-multipoint transmission. The actual tested throughput is 60-80Mbps. Working with 5G frequency band, the device own frequency scanning tool can scan the channel conditions of all surrounding 5G frequency bands, which is convenient for engineers to select the best channel and effectively avoid the same frequency interference. It is suitable for various complex environments and is widely used in residential renovation, construction sites, oil fields, road monitoring, trans-river crossings, mining areas, tunnels, and other places where the environment is complicated and inconvenient to cable.
Features
Specification
| Item | Description |
| Hardware Parameter | |
|
Interface |
2*10/100M Ethernet port 1*Main Ethernet port 1*Sub Ethernet port |
| POE power supply | |
| Indicator light | Power state light |
| 4 grade signal strength light | |
| LAN light | |
| MODE light | |
| Working frequency | 5.125-5.850GHz |
| Standard | IEEE 802.a/n |
| RF power | Max 27dbm (500mw), Adjustable by software |
| Rate | Max 300Mbps |
| Modulation | 802.11n: 2x2MIMO |
| 802.11a: OFDM, 6Mbps/-95dBm | |
|
801.n MCS0: -88dBm MCS7: -73dBm |
|
| Antenna |
Dual polarization 12dbi Horizontal: 30 degree Vertical: 30 degree |
| Reset | Support hardware/software reset |
| RAM | 64MB |
| FLASH | 8MB |
| Size | 246*106*60mm |
| Weight | 370g |
| Packing size | 36*14*7.5cm |
| Packing weight | 0.72kg |
| Input voltage | Wide voltage input DC 12V-24V |
| Power | ≤8W |
| Waterproof grade | IP65 |
| Working temperature | -30℃～+70℃ |
| Saving temperature | -20℃～+80℃ |
| Working humidity | 0～100% |
| Software | |
| Working mode | Route mode: Client replaces all terminal authentication |
| Bridge mode: All terminals need to be separately certified | |
| WDS | Support |
| Network protocol |
PPTP, L2TP, IPsec
|
| PPPoE | |
| DHCP Client/Server | |
| NAPT, NTP | |
| VLAN setting | |
| Wireless function | Peripheral site detection/ Channel scan |
| Priority AP Connection Setting Binding (BSSID) | |
| Channel Auto selection | |
| Security policy |
Encryption: WEP, TKIP, AES
|
| Wireless safety: Open system, shared key WPA/WPA-PSK, WPA2/WPA2-PSK, 802.1x(PEAP,TLS,TTLS), WAPI | |
| Authentication function |
WEB account/ password PPPOE access authentication Route mode Client replaces all terminal authentication Bridge mode All terminals need to be separately certified Multi-user prtal authentication separately Multi-user prtal authentication separately |
| Network protection | Support network rate-limiting |
| MAC address visiting control | |
| System service | Support virtual DMZ, port forwarding. |
| Support UPnP Automatic port mapping | |
| Support VPN unvarnished transmission(PPTP, L2TP, IPSec) | |
| Configuration Management | Based on WEB, CPE built-in WEB server |
| Remote software update(HTTP) | |
| Support Telnet connect | |
| Support syslog system record | |
| Support SSH service | |
| Troubleshooting | Automatically detect network status and automatically reconnect after disconnection |

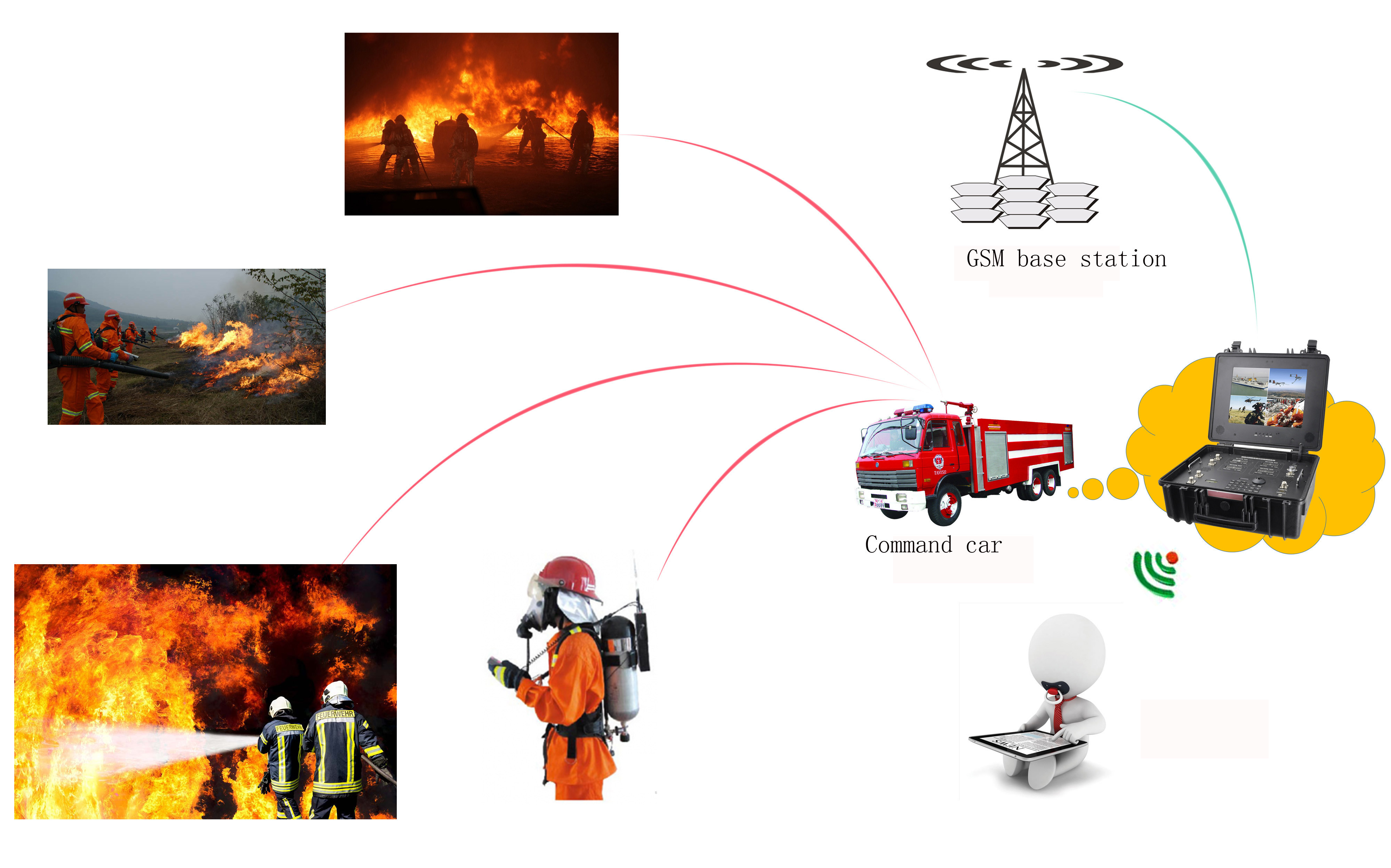

Application
