136g EOD UGVS Mini Video Transmitter NLOS RS232 Control Data

Name: 136g EOD UGVS Mini Video Transmitter NLOS RS232 Control Data
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: ST5200W1
Price: 5,500.00 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST5200W1

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          UGVS Mini Video Transmitter, 136 g EOD Video Transmitter, RS232 EOD Video Transmitter


Frequency Range:	300-900Mhz(UHF)	Transmission Range:	300-500meters
Technology:	COFDM	Power Supply:	DC12V
Bandwidth:	2/4/6/8Mhz	Resolution:	HD 1080P
Data:	RS232

Frequency Range:	300-900Mhz(UHF)
Transmission Range:	300-500meters
Technology:	COFDM
Power Supply:	DC12V
Bandwidth:	2/4/6/8Mhz
Resolution:	HD 1080P
Data:	RS232

Description

136g EOD UGVS Mini Video Transmitter NLOS RS232 Control Data

136g EOD UGVS/USV HD NLOS Video and RS232 control data COFDM transmitting links

Features

SD &HD compatible
Less than 40ms latency
Designed for UAV & EOD UGV
Long range distance air to ground up to 15km
Great action ability, can transmit video and audio stably in the condition of high speed movement and multi-path interference.
Strong NLOS (non-line of sight) transmission capacity;
COFDM digital modulation types;
Real-time transmission system, delay time for end-to-end is less than 40ms;
Long distance transmission;
Stable signals, image clear and stable, has no mosaic or drag phenomenon.
Suitable for the complex environment;
Working frequency can be adjustable between 300MHz and 2.7GHz;
High quality digital video processing and H.264/MPEG-2 coding and encoding

136g EOD UGVS Mini Video Transmitter NLOS RS232 Control Data 0

TX Parameters

Power
Working Voltage	DC12V
Working Current	2A
RF
Working Frequency	160MHz~860MHz
Output Power	30dBm
RF Bandwidth	2/4/6/8 MHz
Modulation	COFDM
Serial Port
Data		Half-duplex transparent data transmission(OSD UART)
Serial Port		Config UART
System
Convolutional Encode ratio		1/2, 2/3, 3/4, 5/6, 7/8
Modulation		QPSK/QAM16/QAM64
IFFT		2K/8K
Guard Interval		1/4, 1/8, 1/16, 1/32
High Definition Multimedia Interface
Version		High Definition Multimedia Interface mini
Resolution Ratio		Max 1080*1920/60P
Video Encoding		H.264
CVBS
Video Encoding		H.264
Video Input Format		PAL/NTSC
Encryption
Encryption		AES 256
Antenna
Omni Antenna		SMA
Weight & Dimension
Weight		136g
Dimension		756528mm

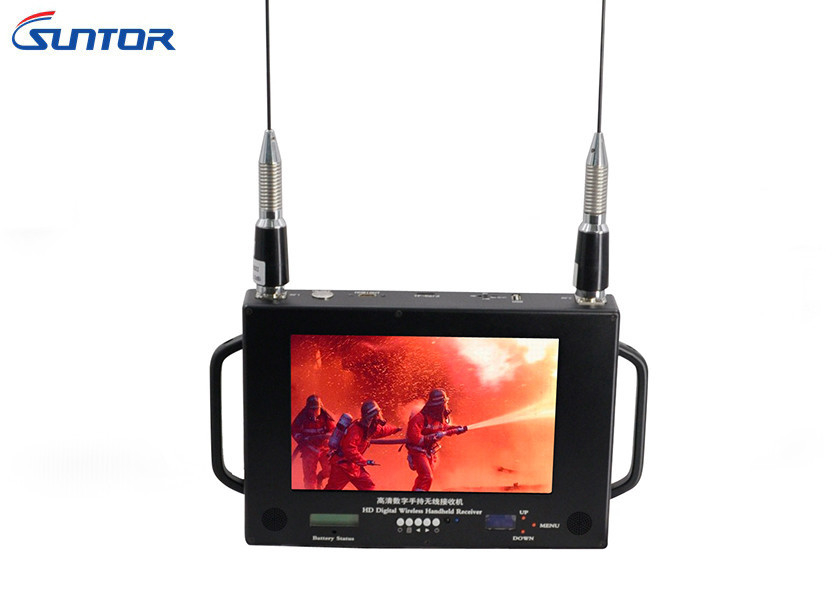

RX Parameters

Power
Working Voltage	DC12V
Working Current	2A
RF
Working Frequency	160MHz~860MHz
Output Power	30dBm
Modulation	COFDM
High Definition Multimedia Interface
Version	High Definition Multimedia Interface mini
Resolution Ratio	Max 1080*1920/60P
Video Encoding	H.264
CVBS
Video Encoding	H.264
Video Input Format	PAL/NTSC
Encryption
Encryption	AES 256
Receive Sensitivity
QPSK/8MHz	-97±1dbm
QPSK 6MHz	-98±1dbm
Antenna
SMA	Double Antenna
Video Record
Video Record	USB
Indicator & Keys
Led Lights	Power/RF/Video Recording
Key 1	Parameters Setting Switch
Key 2	Video Recording Switch
Weight & Dimension
Weight	248g
Dimension	1098640mm
