Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: CD05HPT
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Transmission System: |
COFDM |
Data Rate: |
3 ~ 5 Mbps |
Data Protocol: |
SBUS/TTL/MAVLINK Telemetry |
Power Supply: |
DC7 ~ 18V Power Supply |
Dimension: |
74*47*19mm |
Transmission System: |
COFDM |
Data Rate: |
3 ~ 5 Mbps |
Data Protocol: |
SBUS/TTL/MAVLINK Telemetry |
Power Supply: |
DC7 ~ 18V Power Supply |
Dimension: |
74*47*19mm |
COFDM Transmitter for Drones amp UAVs 2.4GHz Frequency Range amp 4MHz Bandwidth
CD05HPT Drone Video Transmitter & Receiver Specifi...
1. Introduction

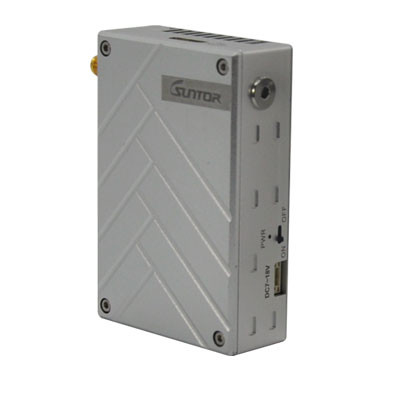

CD05HPT is Full HD image transmission system equipment professional for UAVs, standard COFDM modulation. The product use of advanced video processing technology and efficient encoding algorithm to improve the coding efficiency and reduce coding delay and increase the error rate, and then improve image quality. It can be the lowest bit rate to achieve the best quality of image.
Supports RF power 400mW-1.5W, High Definition Multimedia Interface AV Input. 2.402-2.478GHz (optional).
2. Features
3. Parameters
| Wireless | |
| Frequency Range | 2.4GHZ (2402-2482GHZ) |
| Bandwidth | 4Mhz |
| Data Rate | 3 ~ 5Mbps |
| RF Power | 500mW (Air to Ground 5km) |
| Error Detection | LDPC FEC,Video H.264/265 Super Error Correction |
| Latency | ≤15-30ms |
| Receive Sensitivity | -100dBm@4Mhz |
| Video | |
| Video Input | Mini HDMI |
| Ressolution | Ultra HD 1080p/60fps |
| Compressed Format | H.264/H.265 |
| Color Space | 4:2:0(Default),4:2:2/4:4:4(Op.) |
| System | |
| Start-up Time | ≤30s |
| Transmission | Video＋Duplex Control Data |
| Data Protocol | SBUS/TTL/MAVLINK Telemetry |
| Power Supply | DC7 ~ 18V Power Supply |
| Security | AES128 Encryption |
| Interface | |
| RF Antenna | SMA×1 |
| HDMI Interface | Mini HDMI(HDMI Type C)×1 |
| Serial Port Interface | TTL Serial to USB Connector×1 |
| Ethernet Interface | Ethernet to RJ45 Connector×1 |
| Power Input | 2Pin to DC Jack Connector×1 |
| Physical | |
| Dimension | 72x47x19mm |
| Weight | 94g(Transmitter),94g(Receiver) |
| Operating temperature | -40°C ~ ＋85°C |
4. Application
CD05HPT wireless video transmitters are designed to withstand harsh environments and are ideal for Drones, UAS, UAV, UGV, , and other applications requiring efficient, high quality video/audio/data transmission in a compact, rugged package.
5. FQA
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models with charges.
Q2. Do you accept OEM / ODM order?
Yes, we can customize the brand logo, colors, frequencies and etc....
Q3. Delivery & Shipment Date:
It is expected 25-30 working days after the fund/deposit received.
Q4. How can i get the price?
We usually response within 24 hours after we get your inquiry(Except weekend and holidays). If any urgent situation, please contact us by WhatsApp or E-mail.
Q5. What shipping methods do you offer?
We offer various shipping methods, including express delivery, air freight, and sea freight.
depending on your location and requirements.
