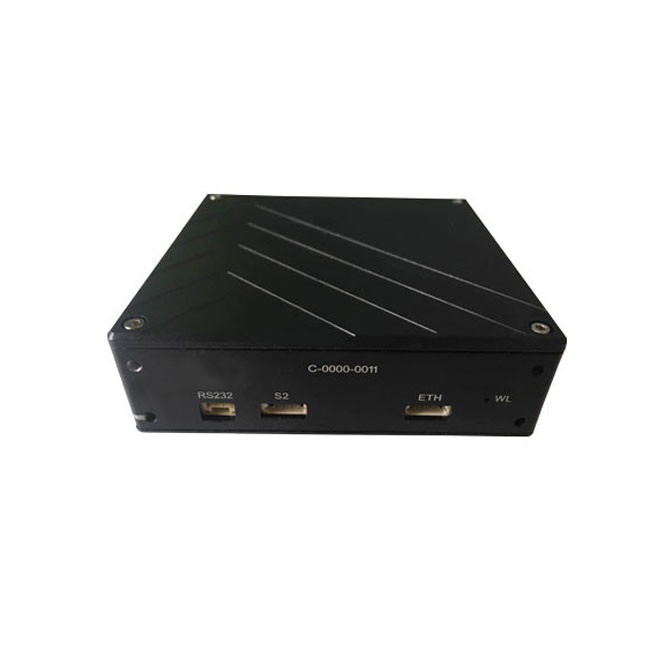

C50HPT Mini HD COFDM Video Transmitter - 2.4GHz Frequency, 2-8MHz Bandwidth

Product Details

Place of Origin: CHINA

Brand Name: SUNTOR

Certification: CE

Model Number: C50HPT

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Price: Negotiation

Packaging Details: Aircasing

Delivery Time: 1-2 Weeks

Payment Terms: T/T, Western Union

Supply Ability: 5000 Sets/month

Get Best Price
Contact Now
Specifications
Highlight:

HD COFDM Video Transmitter

,

8MHz COFDM Video Transmitter

,

Mini HD COFDM Transmitter

Power Supply:
DC 7- 18V (DC16.8V Advised)
Bandwidth:
1-8Mhz
RF Transmitted Power:
33dbm(Air To Ground 40-70km)
Frequency:
2.4GHZ(2.400-2.482GHZ)
Latency:
≤15-30ms
Size:
24mm×73mmx76mm
Power Supply:
DC 7- 18V (DC16.8V Advised)
Bandwidth:
1-8Mhz
RF Transmitted Power:
33dbm(Air To Ground 40-70km)
Frequency:
2.4GHZ(2.400-2.482GHZ)
Latency:
≤15-30ms
Size:
24mm×73mmx76mm
Description
C50HPT Mini HD COFDM Video Transmitter - 2.4GHz Frequency, 2-8MHz Bandwidth

Product Introduction



C50HPT is a mini HD Video and Duplex data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground (40-70km) and low delay(12-25ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.





Product Features



  • Working Temperature: -40℃—+85℃;

  • Support SBUS/PPM/TTL/232/485;

  • Video:Video sources self-adaptive(Max 1080P).Support High Definition Multimedia Interface Input/output;

  • Support Video and Duplex Data;

  • Compatible with different brand flight controller and remote controller.

  • 100Mbps Ethemet for option;

  • Matching with our TPlayer software (low latency software decoder) to display video on PC.





Application



As its miniature volume, precision design, lightweight and easy to carry, suitable used in long range air high speed wireless video data transmission purposes. Such as UAV, rotorcraft, micro UAV, drone, UGV, unmanned powered parachute and more video data transmission.





System parameter
Frequency 2.4GHZ(2.400-2.482GHZ)
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power 33dbm(Air to ground 40-70km)
Power Consumption TX:10Watts/Rx:7Watts
Bandwidth 1-8Mhz
Video Input/output Interface Onboard High Definition Multimedia Interface mini TX/RX or FFC convert to High Definition Multimedia Interface-A TX/RX
Latency ≤15-30ms
Bit rate and channel adjustment mode DIP or SPI2MCU
Receive Sensitivity -100dbm ~ -90dbm
Transmitter Interface 1080P 60 High Definition Multimedia Interface Mini RX
100Mbps Ethernet Port
S1 TTL bidirectional serial port
S2 TTL bidirectional serial port
SMA RF
Receiver Interface 1080P 60 High Definition Multimedia Interface Mini RX
100Mbps Ethernet Port
S1 TTL bidirectional serial port
S2 TTL bidirectional serial port
SMA RF
Antenna

1T1R

TX: 7db(25cm Omni Antenna)

RX: 10db(Omni Antenna)

Video Input/output Interface

High Definition Multimedia Interface mini TX/RX, or transform FFC to

High Definition Multimedia Interface-A RX/TX

Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Video Compressed Format AVC, H.265, TS
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Transmission Distance Air to ground 40-70km
Start-up time 25s
Total delay of the system 15-30ms of 1080P60/720P60 coding and decoding.
Two-way function Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module.
Power supply DC 7- 18V (DC16.8V advised)
Temperature Range Operating temperature: -40°C ~ 85°C
Storage temperature: -55°C ~ 100°C
Interface Power input interface × 1
Antenna interface × 1
RS232 Bidirectional Port × 1(With isolation protection, resistance to 3000V pulse voltage)
Ethernet to USB / RJ45 on Windows × 1
Indicator Light High Definition Multimedia Interface input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
High Definition Multimedia Interface High Definition Multimedia Interface mini/Flexible Flat Cable (FFC)
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size 24mm×73mmx76mm
Weight Tx: 208g, Rx: 100g
