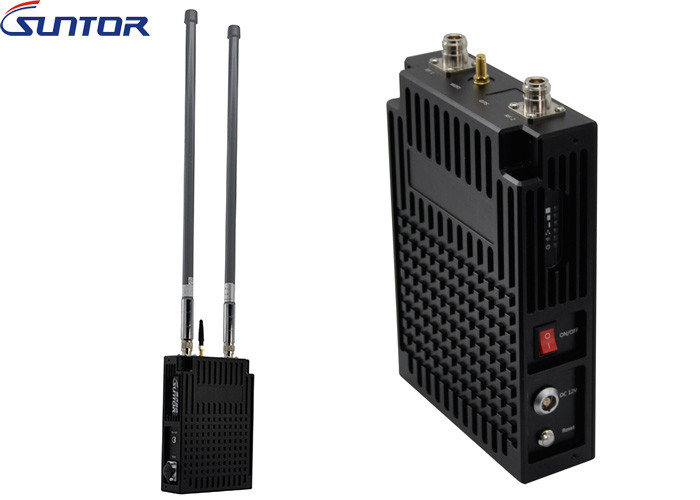

IP Camera Video COFDM Transmitter Mobile Deployable IP Networking Solutions

Place of Origin CHINA
Brand Name SUNTOR
Certification CE, FCC
Model Number ST9602MD
Minimum Order Quantity 1Set
Packaging Details Aaircasing
Delivery Time 1-2weeks
Payment Terms T/T, Western Union
Supply Ability 500sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Encryption AES256
Weight 1.2kg Data UDP/TCP Ethernet Signal
Video IP Camera MESH Self-healing
Nodes 42 Range NLOS
High Light

cofdm hd wireless transmitter

,

wireless hd video transmitter

Leave a Message
Product Description

Mobile Ad-hoc networking radios deliver a range of mobile deployable IP networking solutions



Data Sheet



User Manual



ST9602MD is an independent R&D wireless Ad Hoc network communication equipment, real-time transmission of audio video, IP data information, the multi-jump relay can increase wireless transmission distance. Ad Hoc network automatic selection patch, network mode is flexible, can be used for multisectoral transmission, strong anti-shielding and anti-inferference suitable for mobile communication on complex environment. Can be used in the public security, armed , fire fighting, human defense, and other government departments that have emergency operation and rescue missions, and build up communication in real time to unify and coordinate the command. The network of wireless ad-hoc networks can be connected to a command center via a gateway, access to a dedicated network or a public infrastructure network.



Key Features



  • Tri Band capability offered in L-band (1.559-1.577GHz), S-band (2.412-2.462GHz) and UHF-band (300-900MHz)
  • Self-forming, self-healing Mesh architecture
  • Ideal for use for wide area coverage & multi-hop, mobile applications such as robotics and city NLOS wireless video transmission
  • IP connectivity for additional backhaul offering beyond mesh
  • Low latency IP communication
  • GPS receiver
  • Built in encryption AES256 available subject to export control



Technical Specification
Interface
COFDM RF Interface N Female x 2
IP Interface 1 x 10/100Mbps Ethernet
Power DC9-28V
Serial inteface RS232(115200bps adjustable)
LED Bi-colour
Power on/off Pressing - Type
Streaming
Format TCP/HTTP
Typical Range
NLOS Light Urban 1800m +
LOS(Air to ground) 20km +
RF and Modulation
Output power +33dBm
Bandwidth 5/10/20MHz
Mesh capacity Up to 87Mbps MIMO, 17Mbps standard Mesh
Modulation COFDM 360 carrier modulation
Carrier modulation BPSK/QPSK/16QAM/64QAM (adaptive)
FEC rate FEC 1/2, FEC 2/3 (adaptive)
Receive diversity Maximum ratio combining
Receive sensitivity -98dBm (BW 2.5MHz / BPSK 1/2)
Encryption
Encryption AES256
GPS
Built in GPS receiver Garmin GPS-15xH-W
Data Interface
RS232/RS485 bi-directional data
(shared with user camera control)
1k2 to 115k2 baud switchable with UDP and
TCP routing protocol
Control
Local control LEDs power and Mesh status
Remote control Web browser GUI
Mission Commander - control of all
parameters in a map based application
Physical
Dimension 220mm*155mm*52mm
Waterproof IP66
Weight 1.2kg
Mounting Option Manpack
