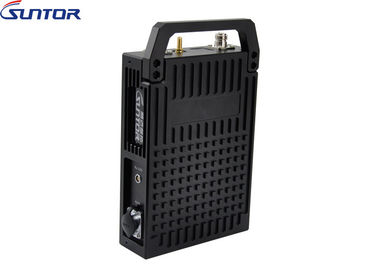

Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W

China Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W supplier
Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W supplier Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W supplier

Large Image :  Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W

Product Details:

Place of Origin: CHINA
Brand Name: SUNTOR
Model Number: ST9602MD

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Packaging Details: Aircase packing
Delivery Time: 1-2weeks
Payment Terms: T/T, Western Union
Supply Ability: 5000set/month
Contact Now
Detailed Product Description
Frequency: UHF, C Band, L Band Modulation: COFDM
RF: MIMO WIFI: Yes
GPS: YES Bandwidth: 5/10/20Mhz
Video Input: RJ45 Data: Full Duplex RS232

Mobile-Networked MIMO Wireless Communication Systems



Data Sheet

User Manual

Introduction

ST9602MD is a broadband mesh radio which adopts self-developed COFDM modulation scheme, high efficiency channel codec and MESH networking protocol, offers strong NLOS performance with high throughput. It is an ideal solution to establish a self-forming, self-healing network between different points such as soldiers, vehicles and drones, this centerless network is capable of transporting heavy data in harsh environment.

Features
● Non-line-of- sight communication
● Self-organizing network
● Self-encrypting security algorithm
● Frequency at range of 300~1400MHz
● High transmission rate: peak 11Mbps @ 10MHz
● Ultra-strong receiving sensitivity: -92dbm @ 10MHz

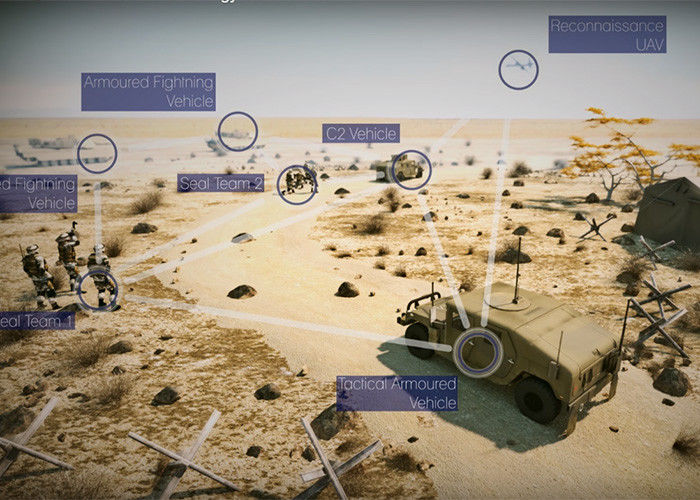

Application

Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W

Specification

Transmission characteristics   GPS Optional External GPS module
Frequency 300MHz-1400MHz 3G/4G module support
RF bandwidth 5/10/20MHz WIFI module support
RF output power 1~2Watt (optional) Encryption 256 AES user-defined password
Shoulder ratio 30dBm>-45dbc Electrical characteristics
Modulation TDD Working voltage DC9-28V
Modulation constellation BPSK/QPSK/16QAM/64QAM Working current ≤2A
FEC 1/2,2/3,3/4,5/6 Power consumption ≤20W
sensitivity -92dbm@20MHz The built-in filter characteristics
Transfer rate Peak 11Mbps@10MHz Center frequency 340MHz/580MHz
Cover distance customized bandwidth 20MHz
Networking capability up to 42 nodes Out-of-band rejection F0±10%≥44db
Data characteristics   F0±20%≥75db
Video input format IP video input:1080P IP Camera Far-end≥80db
Physical characteristics
Protection grade IP66
Working temperature -20℃~+70℃
Storage temperature -30℃~+90℃
Dimension 220mm*155mm*52mm
Weight 1.4Kg



Dimension

 Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W

Package List

Accessories & Compatible Products
Additional Battery
Ethernet Interface Cable
Battery Charger
Antenna*2
ST9602MD
Package Box
Data Cable
Manpack Harness
Power Cable
wifi antenna

Mobile Networked Long Range Video Transmitter MIMO Wireless Communication Systems 20W
