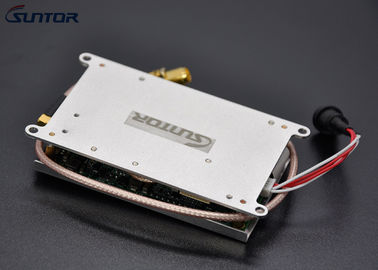

500mW Drone Video Transmitter , Data Transmitter Receiver With High Definition Multimedia Interface TTL Port

  • 500mW Drone Video Transmitter , Data Transmitter Receiver With High Definition Multimedia Interface TTL Port
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST5XHPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation TDD-COFDM Frequency Range 2304-2570MHz
RF Power 500mW Transmission Range Air To Ground 5km
System Latency 12-25ms Net Weight Tx: 58g/Rx: 58g
High Light

uav video transmitter

,

drone wireless video transmitter
Leave a Message
Product Description

Lightweight ISM 2.4GHz 500mW drone video data module with High Definition Multimedia Interface TTL port



ST5XHPT Specs.pdf

ST5XHPT User Manual.pdf



Introduction:
Suntor ST5XHPT is a mini-controller device, specifically designed for commercial & industrial drones.
It enables controlling a drone as well as transmitting or viewing of video and data while operating on air & ground missions.



Features

  • Video Input: High Definition Multimedia Interface
  • Resolution: HD 720P
  • Distance: Air to ground 5km
  • Latency: ≤15-30ms
  • Duplex Data Transmission: TTL-RS232/485
  • Dimension: 73*48*14mm
  • Weight: TX 58g/RX 58g



Application:
Suntor Bi-Directional Data Links are wireless uav communications units specifically designed to increase wireless broadcasting for various types of unmanned aerial vehicles.



Parameters

Frequency

3 frequency for your option 2.3GHz/2.4GHz/2.5GHz

2.3GHz(2304MHz-2390MHz)

2.4GHz(2402MHz-2482MHz)

2.5GHz(2500MHz-2570MHz)
Error Detection LDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power 27dbm (Air to ground 5km)
Power Consumption TX: 7Watts
RX: 5Watts
Frequency Bandwidth 4MHz
Latency ≤12-30ms
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Antenna 1T1R
Video Input/output Interface High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX
Video Compressed Format H.265 +TS
Bit rate Adjustment DIP or SPI2MCU
Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK)
Transmission Distance Air to ground 5km
Start-up time < 25s
Two-way function Support video and duplex data simultaneously
Data Support Duplex TTL RS232/485 Data Transmitting
Power supply DC 7- 18V
Transmission Rate 3-5Mbps
Receiving Sensitivity -100dbm@4Mhz
Interface 720P High Definition Multimedia Interface Mini RX x1
S1 TTL bidirectional serial port x1
RF SMA
Power Input x1
Indicator Light High Definition Multimedia Interface input/output Status
Transmitting and receiving
Video board working Status
Power
Temperature Range Operating temperature:0°C ~+ 85°C
Storage temperature:-10°C ~+ 90°C
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Dimension 73×48×14mm
Weight Tx: 58g/Rx: 58g
