TDD H.264 Full Duplex UAV Data Link

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: STC140HPT

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

uav video link

,

wireless video transmitter hdmi

,

tdd cofdm uav downlink systems

Modulation:
DVB-T/DVB-T2/DVB-T2
Frequency:
1.4-1.499GHz
RF Power:
2.5W
Latency:
Less Than 50ms
Operating Temperature:
-40—85℃
Distance Range:
35-60km
RX Sensitivity:
-103dbm
Net Weight:
200g
Modulation:
DVB-T/DVB-T2/DVB-T2
Frequency:
1.4-1.499GHz
RF Power:
2.5W
Latency:
Less Than 50ms
Operating Temperature:
-40—85℃
Distance Range:
35-60km
RX Sensitivity:
-103dbm
Net Weight:
200g
Description

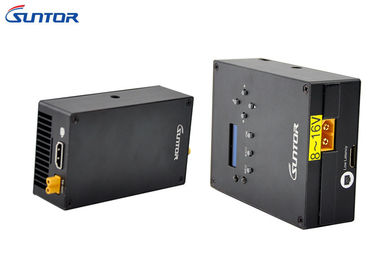

TDD H.264 Full Duplex UAV Data Link

TDD H.264 full duplex digital wireless transceiver for UAV drones



UAV Downlink Systems
UAV Downlink Systems are also used in a growing number of civil applications, such as firefighting or non- security work including surveillance and are often preferred for missions that are too "dull, dirty, or dangerous" for manned aircraft. Our portfolio of UAV datalinks are ideal for this type of application, being small but robust and ideal for providing high quality link continuity as well as superior range. All of our links are available in high definition (HD) formats giving peace of mind when being used for evidence gathering or providing situational awareness for high risk operations.



System Features:

  • TDD COFDM technology
  • Long range video transmission
  • High resilience to interference, echo and Doppler Effect (high mobility)
  • Ease of installation
  • Plug-and-play installation
  • Local LED management display
  • Multiple frequency channels selection
  • Easy configuration via software.



Applications:

  • VTOL uav
  • Heavy lift octocopter
  • Heavy fixed wing uav
  • Heavy lift VTOL uav with long endurance




Parameters
Wireless Channel 1.400-1.499Ghz(Adjustable by software)
Communication Bandwidth 2/4/8MHZ
RF Transmission Power 2.5W
Data Rates 1.5/3/6Mbps
RX Sensitivity -103dbm
Interfaces on Transmitter 1080P60 High Definition Multimedia Interface RX×1
Power Input Interface--XT30 Industrial Grade ×1 DC 16-48V
USB 2.0--For linking configure software only.
SMA RF ×1
Interfaces on Receiver 1080P60 High Definition Multimedia Interface Mini TX×1
LCD--Displaying RSSI and link state.
Buttons×5--For configuring receiver model.
Power Input Interface--XT30 Industrial Grade ×1 DC 9-24V
SMA RF ×2
Wireless Fault Tolerance FEC/MPEG
Modulation DVB-T/DVB-T2/DVB-T2
Distance Range

35-60km

Notes: True distance is related to the environment.

Total Latency 50ms
Reconnection time Less than 1s after signal has been recovered
Adjustment of COFDM QPSK one-way
Overall Consumption Power(Maximum)

Transmitter terminal: 25W

Receiver terminal: 12W

Temperature Range

Operating temperature: -40—85℃

Storage temperature: -55 - 125℃

Dimensions

TX: 97mm×57mmx30mm

RX: 91mm×72mmx30mm

Radiator Fancooler or aluminum heat sink
Gram

TX: 200g

RX: 202g
