300-860MHz Professional Wireless Video Transmitter And Receiver For / Industrial

  • 300-860MHz Professional Wireless Video Transmitter And Receiver For / Industrial
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9502T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency Range 300-860MHz
Video Port SDI/ High Definition Multimedia Interface/ AV Data Port RS485/ RS232/ TTL
Video Storage HDD/TF Card Environment NLOS/LOS
High Light

wireless hd transmitter

,

long range wireless video transmitter
Leave a Message
Product Description

UHF BVLOS EOD robot NLOS 500m+ HD video dual way data transmitter receiver



Specification Sheet



Describe:

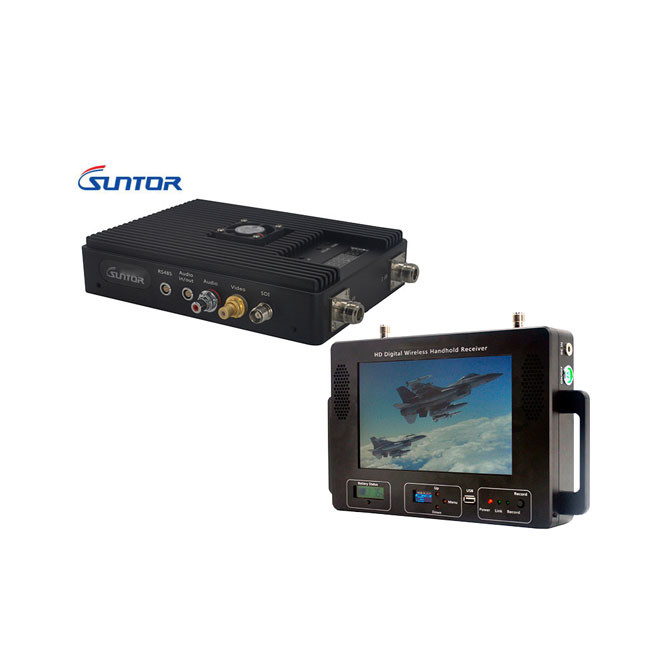

ST9502T is Suntor new design manpack COFDM wireless video data device, it have parameter adjusted LCD, with cooling fan to make it long time working without any safe problem. In order to make sure you can real time to see the video, Suntor design a new LCD receiver internal battery, it also can store HD video by USB flash drive or 32G TF card. This no need monitor, DVR and battery. Provide great convenience for operation.



Features:

  • Duplex-audio communication and data transmission
  • H.264 video decoding, support HD 1080i/P
  • Transmission encryption for higher security
  • 2/3/4/5/6/7/8MHz multiple bandwidth adjustable
  • SDI video, embedded audio and composite video input, High Definition Multimedia Interface interface
  • Support unbalanced and balanced stereo input
  • Transmitting power output adjustable



Applications:

  • Commercial
  • Industrial
  • Available for Long Range Line-of-Sight and Urban Non-Line-of-Sight applications.



TX Parameters

Frequnecy Video: 300MHz~860MHz
Data: 223~235MHz
Power 37dBm (5Watts)
Video Coding H.264
Video Mini High Definition Multimedia Interface: 1080 60P/1080 50P/1080 30P/1080 25P/1080 24P/1080 60I/1080 50I/1080 30I/720 60P/720 50P/720 30P(self-adaption)
AV in: 720x480 60I(NTSC)/720x576 50I(PAL)(self-adaption)
Audio Mini HDM
AV in & Audio in
Antenna UHF
Data One-way transparent data transmission (OSD UART)
Serial port (Config UART) RS485
Modulation Convolution coding ratio: 1/2, 2/3, 3/4, 5/6, 7/8
Support QPSK/QAM16/QAM64
Support IFFT: 2K/8K
Guard Interval: 1/4, 1/8, 1/16, 1/32
Bandwidth: 2/3/4/5/6/7/8 MHz
Encryption: AES256
Power Input DC12V/3.5A
Weight 1.6kg
