Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST9502T
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
COFDM |
Frequency Range: |
300-900MHz |
Resolution: |
FHD 1080P |
Video Storage: |
HDD/TF Card |
Two Way Data Port: |
RS485 |
Weight: |
1.6kg |
Modulation: |
COFDM |
Frequency Range: |
300-900MHz |
Resolution: |
FHD 1080P |
Video Storage: |
HDD/TF Card |
Two Way Data Port: |
RS485 |
Weight: |
1.6kg |

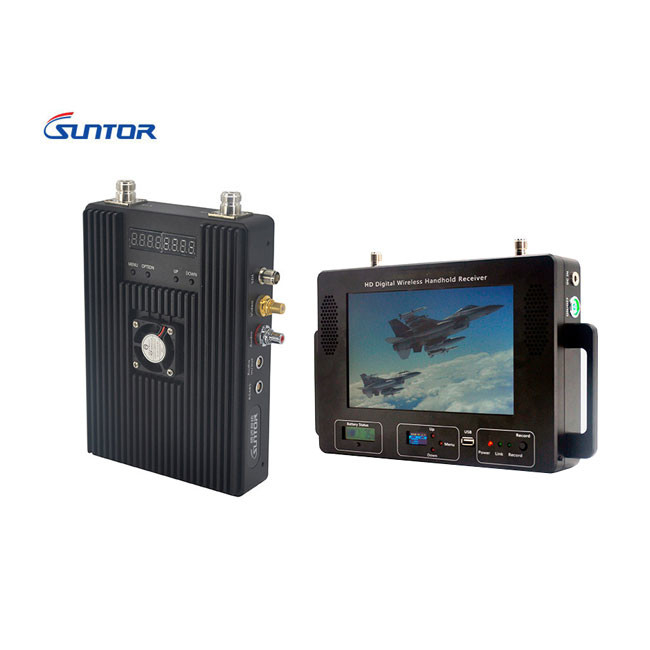

-grade ruggedized soldier manpack video audio transmitter
Introduction:
Features:
This is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural. Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation mini receiver, provide high quality of picture in revolution HD1080P, short latency. This special designed system is for long range distance for robot/UGV, it is also popular to use in other fields for live broadcast video audio transmission.
Application:
Beyond Visual Line of Sight (BVLOS) UAV IndustriesBeyond Visual Line of Sight (BVLOS) UAV Industries, patrol mission,long range wireless video broadcast.
| Model | ST9502T | ||
| Radio Frequency Index | Work Frequency | 300-900MHz(Customizable) | |
| Power of Radio Frequency | 5W(Customizable) | ||
| ACPR | ≥45dBc | ||
| Modulation Index | Modulation |
COFDM 2K(1705) QPSK/16QAM/64QAM; Adjustable bandwidth of 2/3/4/5/6/7/8M. |
|
| Guard Interval | 1/32 1/16 1/8 1/4 | ||
| ECC | 1/2 2/3 3/4 5/6 7/8 | ||
| Channel Encoding |
Outer code/outer interleaving code:RS (204,188,t=8),8 Byte burst error can be corrected； Convolution interleaving,Interleaving Depth l=12； Encryption:ABS or AES |
||
| Inner code/inner interleaving code:Convolution encoding,constraint Length K=7,Code Rate :R=1/2；Bit Interleaving ； Frequency domain random interleaving；Encryption:ABS or AES | |||
| Video/Audio Index | Video Compression | H.264 | |
| Latency | About 120ms | About 40ms | |
| Video Input | HD/S0 SDI/CVBS self-adaptive | ||
| Bit Rate | 3~30M | ||
| Video Format | 1080i:1920*1080@59.94i/50i/60i; 720p:1280*720@59.94p/50p/60p; 576i:720*576@50i; 480i:720*480@59.94i | ||
| Audio Format | MPEG-1 Layer2 48KHz | ||
| Receiver Index | Sensitivity | -89~-92dBm | |
| Modulation | COFDM,ETS 300744 Standard; Adjustable bandwidth of 2/3/4/5/6/7/8M. | ||
| Decoding | H.264 | ||
| Interface | Video Interface | BNC 75Ω SD/HD SDI/High Definition Multimedia Interface/CVBS Output | |
| Audio Interface | XLR*2 Stereo audio output | ||
| Accessories | Feeder | Aandro Feeder; Decline of 12.20dB/100m | |
| Antenna | High gain 3~8dBi,standing-wave ratio (SWR)≤1. 5,Whip | ||
| Physical Parameters | Power | Portable Transmission: 12-16VDC Demodulation&decoding Receiver:220VAC | |
| Working Condition | Temperature:0-45℃ Humidity:<85 | ||
