Long Distance COFDM HD Transmitter / Video Wifi Transmitter DC12V 3.5A

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST9500T
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Modulation: COFDM Frequency Range: UHF 300MHz~860MHz
RF Power: 37dBm (5Watts) Resolution: HD 1080P
Power Input: DC12V 3.5A Net Weight: 1.2kg

Product Description

5W Long distance Manpack NLOS wireless HDMI/SDI video transmitter



ST9500T Specs Sheet.pdf



Using effect: https://youtu.be/bYKR3BQdw9s



Introduction:

  • This military backpack system is special for man-portable transmitter enter into the area of the incident to gather information and signal transmission when in the condition of heavy obstacles,such as many building barriers,severe electromagnetic interference, remote mountain town or other harsh environments, which cause command vehicle can’t directly reach the site and forced to parked in vicinity.

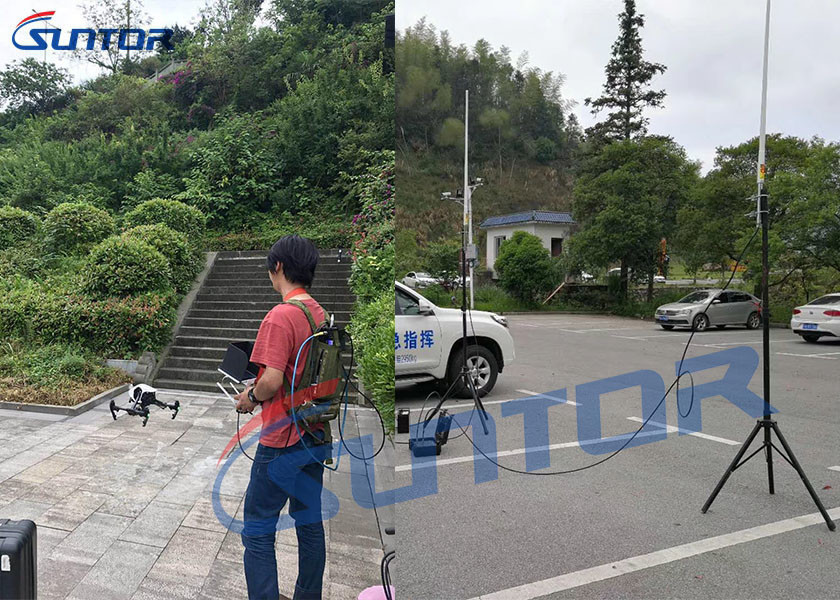

  • At the front-end personnel, scouts, firefighters,rescue personnel or television interview personnel using small size,backpack or Buckle format transmitter transmit the live signals to the rear command vehicle.Then the command vehicle will receive the image displayed on the monitor via the receiver which convenient for real time understanding of the site condition and timely command.



Features:

This is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural. Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation mini receiver, provide high quality of picture in revolution HD1080P, short latency. This special designed system is for long range distance for robot/UGV, it is also popular to use in other fields for live broadcast video audio transmission.



Application:

  • Are you planning a wireless network where obstructions such as trees or buildings are in your line of sight? NLOS or Non-Line of Sight applications require lower frequency radio waves to penetrate obstructions found along the way.
  • Of the unlicensed ISM frequencies used in the world, UHF 300-900MHz is the perfect choice for NLOS wireless networks. UHF allows wireless transmissions to travel distances of up to 20km with obstructions such as tree and buildings in the way using a directional antenna with around 15dBi of gain. For indoor wireless NLOS applications, some higher powered UHF radios can penetrate up to 10 walls!



TX Parameters

Frequnecy Video: 300MHz~860MHz
Power 37dBm (5Watts)
Video Coding H.264
Video Mini HDMI: 1080 60P/1080 50P/1080 30P/1080 25P/1080 24P/1080 60I/1080 50I/1080 30I/720 60P/720 50P/720 30P(self-adaption)
AV in: 720x480 60I(NTSC)/720x576 50I(PAL)(self-adaption)
Audio Mini HDM
AV in & Audio in
Antenna UHF
Modulation Convolution coding ratio: 1/2, 2/3, 3/4, 5/6, 7/8
Support QPSK/QAM16/QAM64
Support IFFT: 2K/8K
Guard Interval: 1/4, 1/8, 1/16, 1/32
Bandwidth: 2/3/4/5/6/7/8 MHz
Encryption: AES256
Latency 40-80ms
Power Input DC12V 3.5A
Size 140*45*215mm
Net Weight 1.2kg
