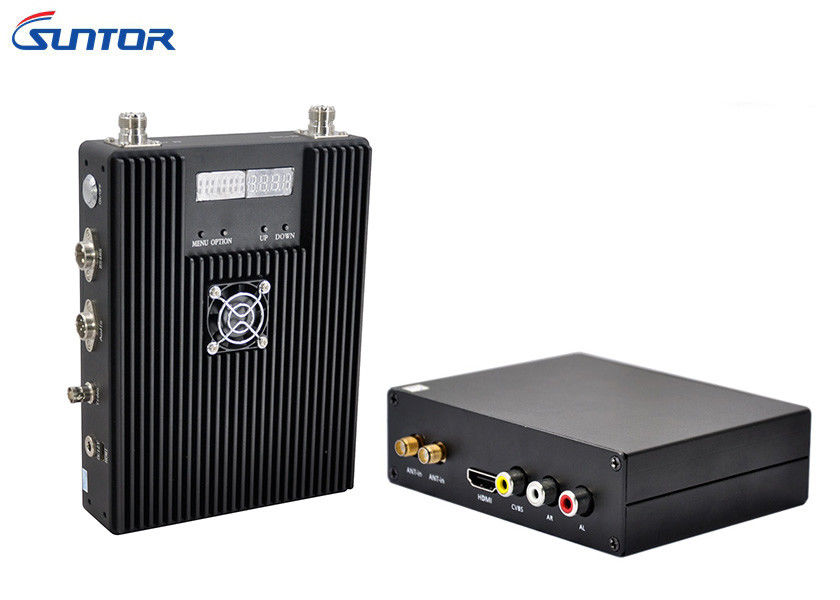

37dBm manpack COFDM Wireless Transmitter for EOD UGV application

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST9502T
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 3-5 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Modulation: COFDM Frequency: 300-860Mhz
Video Output: HDMI/ SDI/ CVBS Video Storage: HDD/TF Card
Data Port: RS232/ RS485 Weight: 1.6kg

Product Description

37dBm manpack COFDM wireless video data transmitter for EOD UGV application



Specification Sheet



Suntor ST9502T wireless COFDM radio encrypted data video link is our latest designed manpack digital wireless transmission equipment, which uses the advanced processing technology and leading division COFDM modulation combine to provide a perfect two-way encryption (encryption support AES 128/256) data transfer channel and two-way signal transmission. Effectively achieve real-time, anti-multipath, high-speed mobile data, voice, image duplex transmission and network building function.



Features:

  • 1) Compact designed, lightweight 1.6kg;
  • 2) Full hd resolution, low delay 40-80ms;
  • 3) High performance, LCD to adjust parameter
  • 4) Special for obstructed, interfered wireless video transmission environment, make the video to penetrate obstacles
  • 5) Maximum rf output 5Watt,can support 1km+ NLOS range, air to ground range up to 30km.



Tx Parameters

Frequnecy

Video: 300MHz~860MHz

Data: 223~235MHz

Power 37dBm (5Watts)
Video Coding H.264
Video Mini HDMI: 1080 60P/1080 50P/1080 30P/1080 25P/1080 24P/1080 60I/1080 50I/1080 30I/720 60P/720 50P/720 30P(self-adaption)
AV in: 720x480 60I(NTSC)/720x576 50I(PAL)(self-adaption)
Audio Mini HDM
AV in & Audio in
Antenna UHF
Data One-way transparent data transmission (OSD UART)
Serial port (Config UART) RS485
Modulation Convolution coding ratio: 1/2, 2/3, 3/4, 5/6, 7/8
Support QPSK/QAM16/QAM64
Support IFFT: 2K/8K
Guard Interval: 1/4, 1/8, 1/16, 1/32
Bandwidth: 2/3/4/5/6/7/8 MHz
Encryption: AES256
Latency 40-80ms
Power Input DC12V3.5A
Weight 1.6kg
Size 165*50*220mm



Typical application:

  • Event coverage
  • News gathering
  • Sports coverage
  • Music concert
