long range camcorder wireless video transmitter 2W 300-860MHz unmanned airship

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9500MDH
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 3-5 Days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency 300-860MHz
RF Power 33dBm (2W) NLOS Range 200-500 Meters
LOS Range 10-20km Weight 130g
High Light

wireless hd transmitter

,

wireless hdmi video transmitter

Leave a Message
Product Description

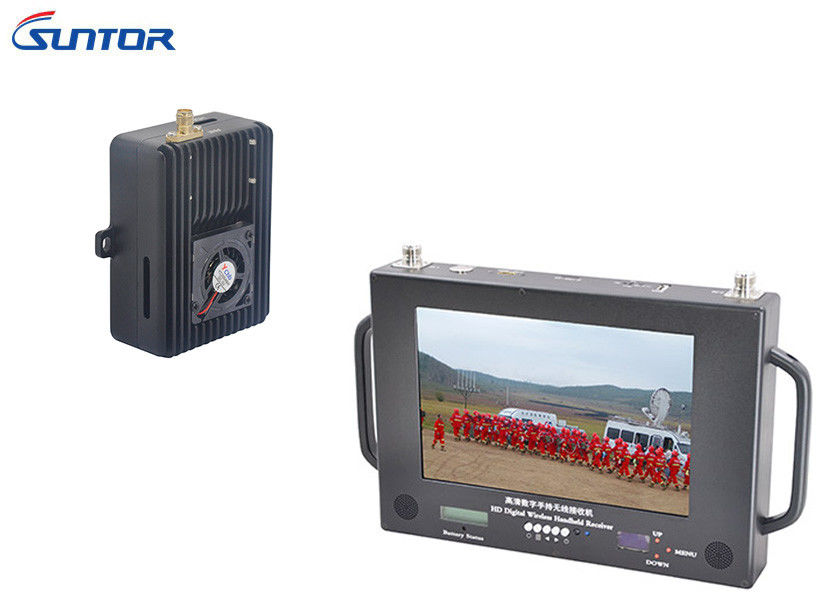

2W 300-860MHz unmanned airship long range camcorder wireless video transmitter



ST9500MDH Specs Sheet.pdf



Introduction:
Mini COFDM wireless radio transmitter is with the core of mobile communication technology COFDM (multi-carrier modulation technique). COFDM wireless transmitter can transmit high quality and stable full HD digital video signal under the condition of high speed mobile and heavy building non-visual transmission in city environment.

COFDM wireless transmitter supports full HD 1080P H.264 encoding format and High Definition Multimedia Interface/SDI, stereo balance audio input and narrowband transmission system.



Features:

  • Low delay, light weight, live broadcast
  • Support 1080i/1080P HD transmission
  • Built-in with HDM or HD-SDI interface(single selection)
  • Support composite standard video and balanced audio input
  • Adjustable parameters

Tx Parameters

Power
Working Voltage DC12V
Working Current 2A
RF
Working Frequency 160MHz~860MHz
Output Power 33dBm
RF Bandwidth 2/4/6/8 MHz
Modulation COFDM
System
Convolutional Encode ratio 1/2, 2/3, 3/4, 5/6, 7/8
Modulation QPSK/QAM16/QAM64
IFFT 2K/8K
Guard Interval 1/4, 1/8, 1/16, 1/32
High Definition Multimedia Interface/SDI
Version High Definition Multimedia Interface mini/ SDI Optional
Resolution Ratio Max 1080*1920/60P
Video Encoding H.264
CVBS
Video Encoding H.264
Video Input Format PAL/NTSC
Encryption
Encryption AES 256
Antenna
Omni Antenna SMA
Weight & Dimension
Weight 130g
Dimension 75*55*35mm



Application Mode:
With the feature of small size, light weight(only 130g) and easy for secret portable, this “Spy” type wireless video transmitter can be hung on the waist, put in brief case. It is always applied in criminal investigation,UAV etc.
