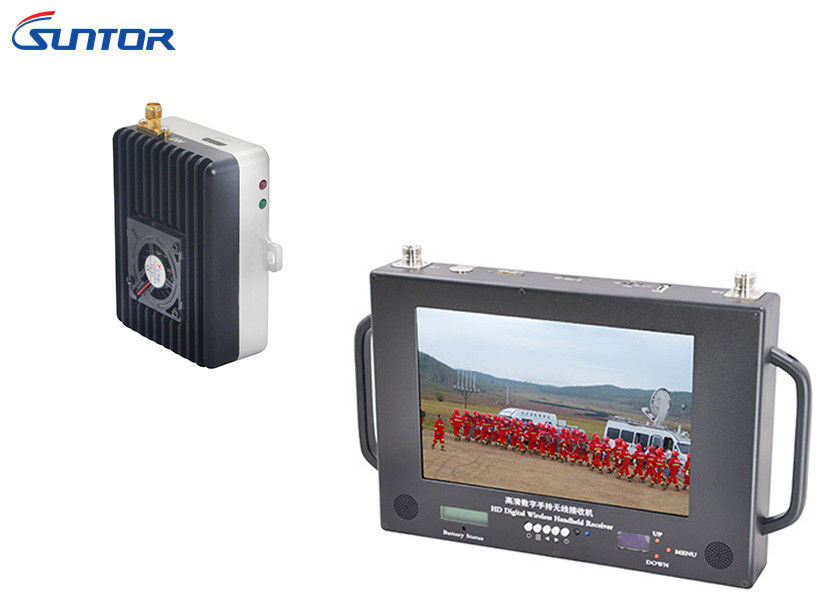

33dBm COFDM HD Transmitter for long range los / nlos video broadcast application

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST9500MDH
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 3-5 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Modulation: COFDM Frequency: 300-860MHz
RF Power: 33dBm (2W) NLOS Range: 200-500 Meters
LOS Range: 10-20km Resolution: 1080P
Weight: 130g

Product Description

33dBm COFDM HD transmitter for long range los/nlos video broadcast application



ST9500MDH Specs Sheet.pdf



This mobile video transmitter supports HDMI/ SDI/ CVBS input. The processor collects video signal, using efficient H.264 compression and COFDM technology. It has advantages of small size, light weight, low power consumption, long distance, strong anti-interference and good security. It is a high integrated mobile ZLOS digital video transmission system, independently developed by Suntor.



Features:

  • High quality of video transmission, no mosaic, no dragging phenomenon, stable power with adjustable dynamic power;
  • Support NLOS transmission, strong diffraction capability.
  • Actual nlos range: 200-500 meters (obstructed, with interference)
  • LOS range: 5-10km (unobstructed, free of interference)
  • Composite video, supports NTSC and PAL standards.



Tx Parameters

Power
Working Voltage DC12V
Working Current 2A
RF
Working Frequency 160MHz~860MHz
Output Power 33dBm
RF Bandwidth 2/4/6/8 MHz
Modulation COFDM
System
Convolutional Encode ratio 1/2, 2/3, 3/4, 5/6, 7/8
Modulation QPSK/QAM16/QAM64
IFFT 2K/8K
Guard Interval 1/4, 1/8, 1/16, 1/32
HDMI/SDI
Version HDMI mini/ SDI Optional
Resolution Ratio Max 1080*1920/60P
Video Encoding H.264
CVBS
Video Encoding H.264
Video Input Format PAL/NTSC
Encryption
Encryption AES 256
Antenna
Omni Antenna SMA
Weight & Dimension
Weight 130g
Dimension 75*55*35mm



Application: Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support etc.
