AES256 long range UHF Drone Video Transmitter with high interference ability

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST9500MDH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 3-5 Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

uav video transmitter

,

drone wireless video transmitter

Modulation:
COFDM
Frequency:
300-860MHz
RF Power:
2W
Air To Ground Range:
10-20km
Resolution:
FHD 1080P
Net Weight:
130g
Modulation:
COFDM
Frequency:
300-860MHz
RF Power:
2W
Air To Ground Range:
10-20km
Resolution:
FHD 1080P
Net Weight:
130g
Description

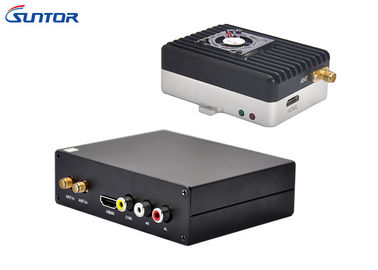

AES256 long range UHF Drone Video Transmitter with high interference ability

AES256 long range UHF drone video downlink with high interference ability



ST9500MDH Specs Sheet.pdf



Suntor ST9500MDH is a new wireless transmission system special designed for UAV, UGV and robot. Advanced modulation technique and special design make it an ideal choice for remote wireless transmission of UAV, UGV, helicopter, fixed wing aircraft, racing car and other special vehichles.



Features:
Compact size with strong power for longer-range transmission.
aluminum housing have good heat resistant with cooling fan.
Great security by encryption of AES 256 bits.
Can work well with Gopro camera in fast-moving transmission.
Low system latency less than 80ms
Mini receiver with record video function



Tx Parameters

Power
Working Voltage DC12V
Working Current 2A
RF
Working Frequency 160MHz~860MHz
Output Power 33dBm
RF Bandwidth 2/4/6/8 MHz
Modulation COFDM
Serial Port
Data Half-duplex transparent data transmission(OSD UART)
Serial Port Config UART
System
Convolutional Encode ratio 1/2, 2/3, 3/4, 5/6, 7/8
Modulation QPSK/QAM16/QAM64
IFFT 2K/8K
Guard Interval 1/4, 1/8, 1/16, 1/32
High Definition Multimedia Interface
Version High Definition Multimedia Interface mini
Resolution Ratio Max 1080*1920/60P
Video Encoding H.264
CVBS
Video Encoding H.264
Video Input Format PAL/NTSC
Encryption
Encryption AES 256
Antenna
Omni Antenna SMA
Weight & Dimension
Weight 130g
Dimension 75*55*35mm



Application:

Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security etc.
