Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST9500T
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
COFDM |
Frequency Range: |
300MHz~860MHz |
RF Power: |
37dBm |
Encryption: |
AES256 |
Net Weight: |
Tx: 1.2kg, Rx: 2.2kg |
Power Input: |
DC12V |
Modulation: |
COFDM |
Frequency Range: |
300MHz~860MHz |
RF Power: |
37dBm |
Encryption: |
AES256 |
Net Weight: |
Tx: 1.2kg, Rx: 2.2kg |
Power Input: |
DC12V |

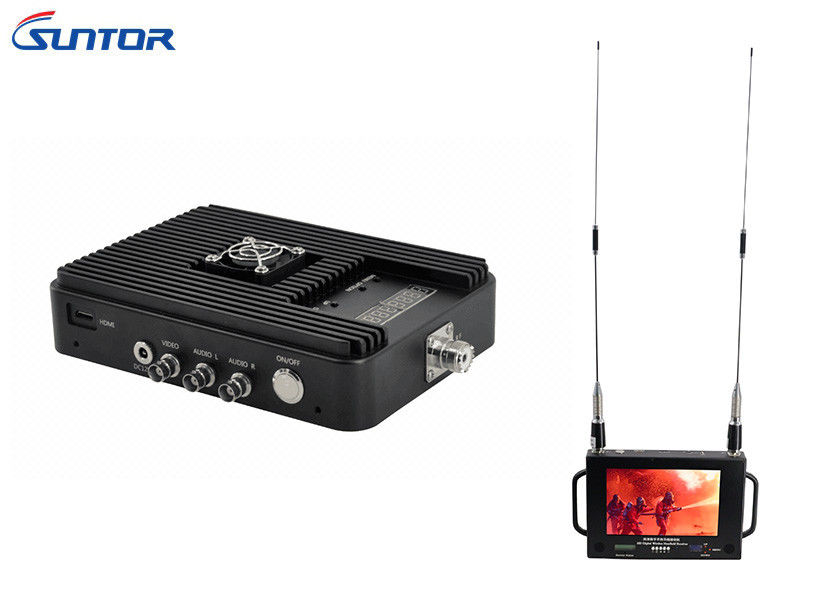

NLOS Soldier Individual HD UAV Transmitter COFDM Wireless Video Link Black
Using effect: https://youtu.be/bYKR3BQdw9s
Describe:
Suntor ST9500T backpack system is special for man-portable transmitter enter into the area of the incident to gather information and signal transmission when in the condition of heavy obstacles, such as many building barriers, severe electromagnetic interference, remote mountain town or other harsh environments, which cause command vehicle can’t directly reach the site and forced to parked in vicinity.
Features:
1) Compact designed, lightweight 1.2kg;
2) Full hd resolution, low delay40-80ms;
3) High performance, LCD to adjust parameter
4) Special for obstructed, interfered wireless video transmission environment, make the video to penetrate obstacles
5) Maximum rf output 5Watt,can support 10km LOS range, air to ground range up to 20km.
Packing:
Transmitter *1
Receiver *1
Antenna *3
Power supply
RF cable
TX Parameters
| Frequnecy | Video: 300MHz~860MHz |
| Power | 37dBm (5Watts) |
| Video Coding | H.264 |
| Video | Mini High Definition Multimedia Interface: 1080 60P/1080 50P/1080 30P/1080 25P/1080 24P/1080 60I/1080 50I/1080 30I/720 60P/720 50P/720 30P(self-adaption) |
| AV in: 720x480 60I(NTSC)/720x576 50I(PAL)(self-adaption) | |
| Audio | Mini HDM |
| AV in & Audio in | |
| Antenna | UHF |
| Modulation | Convolution coding ratio: 1/2, 2/3, 3/4, 5/6, 7/8 |
| Support QPSK/QAM16/QAM64 | |
| Support IFFT: 2K/8K | |
| Guard Interval: 1/4, 1/8, 1/16, 1/32 | |
| Bandwidth: 2/3/4/5/6/7/8 MHz | |
| Encryption: AES256 | |
| Latency | 40-80ms |
| Power Input | DC12V 3.5A |
| Size | 140*45*215mm |
| Net Weight |
1.2kg |
RX Parameters
| Power | DC Input | DC 12V/3A |
| Built-in Lithium Battery | 12V/6Ah | |
| Video | High Definition Multimedia Interface Output | High Definition Multimedia Interface-A-type port audio and video output, support H.264 video decoding, maximum support 1080P @ 60fps |
| CVBS Output | CVBS Video Output | |
| Audio | Two way voice function(Optional) | MIC/LINE-IN, LINE-OUT, connecting handle microphone |
| RF | Convolution coding ratio | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Modulation | QPSK/QAM16/QAM64 | |
| IFFT | 2K/8K | |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 | |
| Bandwidth | 2/3/4/5/6/7/8 MHz | |
| Receive Sensitivity | 4MHz | ≤-104dBm |
| 8MHz | ≤-97dBm | |
| Video Storage | USB | Support max 32GB U disk for local audio and video storage |
| TF Card | Support max 32GB TF card for local audio and video storage | |
| Serial Port | RS232 | Support 1 channel RS232 transparent serial port (optional) |
| Physical Characteristics | Operating Humidity | 10%—95% |
| Working Temperatue | -15℃—60℃ | |
| Dimension | 368*48*230mm | |
| Weight | 2.2kg |
