UAV Radio and Telemetry Systems for HD video transmission long range 10km

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST10NPT

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
High Light:

uav video transmitter

,

drone wireless video transmitter

Bandwidth:
4/8Mhz
Default Modulation:
QPSK 3/4
Weight:
98g
Modulation:
TDD-COFDM
Antenna:
Double Antenna
Video Input:
Double Video Stream
Encryption:
AES-256
Transmission Type:
MIMO
Bandwidth:
4/8Mhz
Default Modulation:
QPSK 3/4
Weight:
98g
Modulation:
TDD-COFDM
Antenna:
Double Antenna
Video Input:
Double Video Stream
Encryption:
AES-256
Transmission Type:
MIMO
Description
UAV Radio and Telemetry Systems for HD video transmission long range 10km

UAV Radio and Telemetry Systems for HD video transmission long range 10km





Specs Sheet



User Manual





Introduction





MIMO performance provides multipath immunity resulting in fast & consistent throughput at impressive distances!

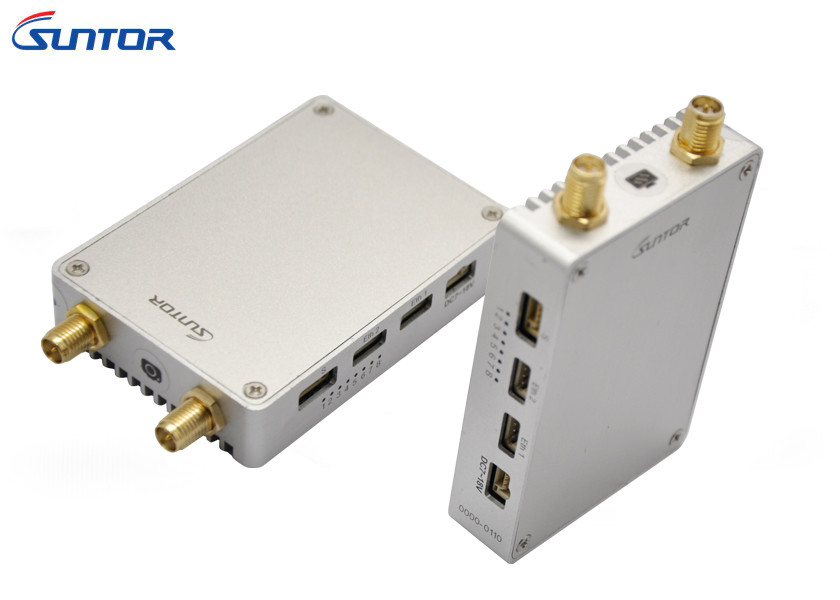

ST10NPT MIMO Digital Data Link is a miniature high power, 2X2 MIMO 2.4GHz wirless solution that provides the bandwidth and range needed for complex data intensive applications. The MIMO TDD features 2X2 MIMO, using Low-Density Parity Check (LDPC) to achieve robust RF performance.

The miniature, lightweight and robust design allows the ST10NPT to be an ideal candidate for size sensitive applications. The high speed, long range capabilities of the ST10NPT allow for high quality wireless video and telemetry communications.





System Features:

  • 4/8Mhz bandwidth
  • VHF-2.4GHz
  • 1 MHz tuning steps
  • IP Camera Input
  • Bare board weighs less than 40grams
  • Exceptionally well suited for UAV
  • 10KM range(LOS)
  • Available in 100mw-1000mW(Adjustable by sotware)
  • Support double IP video stream input
  • TDD-COFDM technology
  • Configurable transmission parameters including frequency bandwidth, code rate guard interval, constellation
  • Long range transmission
  • High resilience to interference, echo and Doppler Effect (high mobility)
  • Ease of installation
  • Transparent mode Serial mix with up 115kbps
  • Plug-and-play installation
  • Channel selection on software
  • Easy configuration via software(TDD software)





Criteria Transmitter Receiver
Video Interface RJ-45 RJ-45
Antenna Connectors SMA*2 SMA*2
Power Input 7-18V(12V/0.33A) 7-18V(12V/0.33A)
Dimensions 68×48x15mm 68×48x15mm
Weight 68g 68g



Antenna Installation



1. For Multi-rotor UAV



UAV Radio and Telemetry Systems for HD video transmission long range 10km 0UAV Radio and Telemetry Systems for HD video transmission long range 10km 1



  1. Using SMA metal shielded semi-flexible blue feeder cable provided by SUNTOR to connect the TX SMA port with antenna.
  2. The antenna needs to be mounted vertically downwards.
  3. The best installation location is UAV ground bracket. With antenna inside, the bracket can only use fiberglass material.
  4. If the ground bracket is automatically retracted, the antenna can be installed in the lower part of the aircraft.
  5. If the antenna is intercepted by the camera or pod or the loudspeaker, the video on RX will appear image stuck or mosaic.

UAV Radio and Telemetry Systems for HD video transmission long range 10km 2

2. Fixed Wing UAV

UAV Radio and Telemetry Systems for HD video transmission long range 10km 3

1) Using SMA metal shielded semi-flexible blue feeder cable provided by SUNTOR to connect the TX SMA port with antenna.



2) The antenna needs to be mounted vertically downwards.



UAV Radio and Telemetry Systems for HD video transmission long range 10km 4







3) The best installation position is center of UAV tail, prominent outside the body and vertical downward.



4) The second optional mounting position is located below the wing and body joints, vertical down, as far as possible away from the wing but near the machine abdomen, protruding below the abdomen level.
