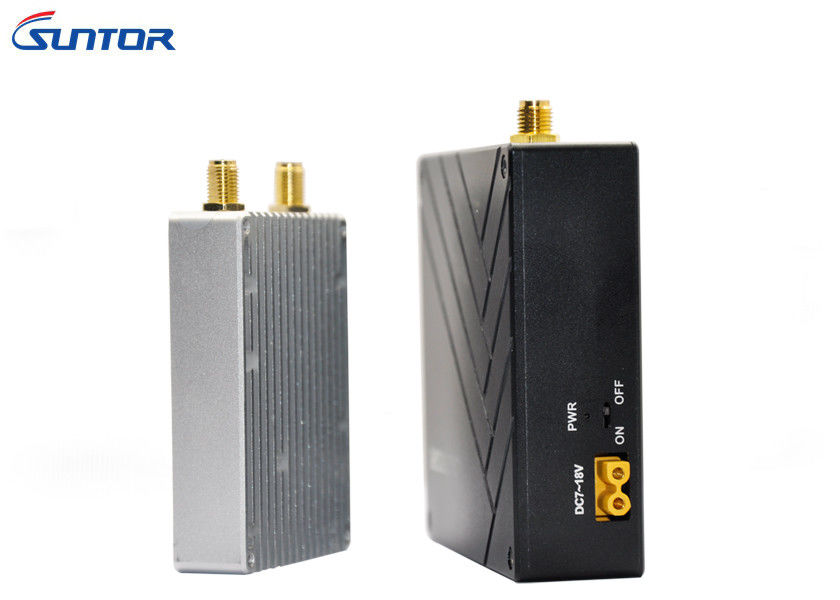

Fixed Wing UAV Data Link , TDD - COFDM 22KM Ethernet video Wireless radios links

  • Fixed Wing UAV Data Link , TDD - COFDM 22KM Ethernet video Wireless radios links
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST20NPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Delay No Delay, Living Video Transission RF Interface SMA
Operating Temperature -40°C ~+85°C Default Baud Rate 115200
Video Output Ethernet Range 18-22km
Transmission Rate 3-5Mbps Power 2000mW
Current 0.5A/DC12V
High Light

uav video link

,

uav video transmitter
Leave a Message
Product Description

Fixed Wing UAV TDD-COFDM 22KM Ethernet video Wireless radios links





Specs Sheet



User Manual





Introduction



This extremely small professional UAV COFDM transmitter fits in any UAV/Drone/UAVs/Helicpter/FPV/Multirotor aerial. It workTogether with our mini COFDM receiver to forms a very professional unit to work well with Pixhawk fly control system. The power output of 2000 mW ensures trouble-free transmission up to 18-22 km with -100bm@4Mhz receiving sensitivity. Double Antenna design to ensure the UAV no matter what direction it fly, the signal transmission is very smooth and stable.





Features:



1. Support Pixhawk Auto Polit System
2. Adopt high-speed wireless transmission technology, low latency, and long transmission range.
3. Support IP Camera video stream wireless transmission
4. Support Duplex data transmitting by TTL/SBUS/PPM/RS232/MAVLINK
5. Compatible with FUTABA and FS remote controller
6. Switching the channels by software.
7. Support software upgrade.
8. Perfect environmental adaptability, working temperature range: -40~+85°C
9. Dual antenna receiving, good resistance to multipath.
10. Support wide voltage access, Flexible wiring.
11. Metal housing with mounting holes for easy installation.



TX

Fixed Wing UAV Data Link , TDD - COFDM 22KM Ethernet video Wireless radios links 0



RX

Fixed Wing UAV Data Link , TDD - COFDM 22KM Ethernet video Wireless radios links 1

Technical Parameters
TX Parameters Description
Video 1080P(1920*1080) 60FPS;
720P(1280*720) 60FPS;
Video Input Ethernet
Transmission distance Effective distance: 20km; Smooth video transmission: 20km.
Size 73x48x20mm(±0.2)mm
Baud rate 115200bps (default) for transparent transmission, customers can modify it by software
Data Wireless parameters Support TTL/SBUS/PPM/RS232/MAVLINK
power DC7-18V power supply, the max current :TX 0.5A(Typical Power Value:12V)
RX Parameters Description
Video Output Ethernet output:
1080P(1920*1080) @60FPS/1080P(1920*1080) @30FPS/720P(1920*720) @60FPS
720P(1920*720) @30FPS
Video Delay No latency, the video not compress
Transmission distance 20km
Baud rate 115200bps (default) for transparent transmission, customers can modify it by software
Wireless parameters 2.402-2.478Ghz
Size 68×48x15mm(±0.2)mm
Power Supply DC7-18V RX 0.5A(Typical Power Value:12V)





Package List

Fixed Wing UAV Data Link , TDD - COFDM 22KM Ethernet video Wireless radios links 2
