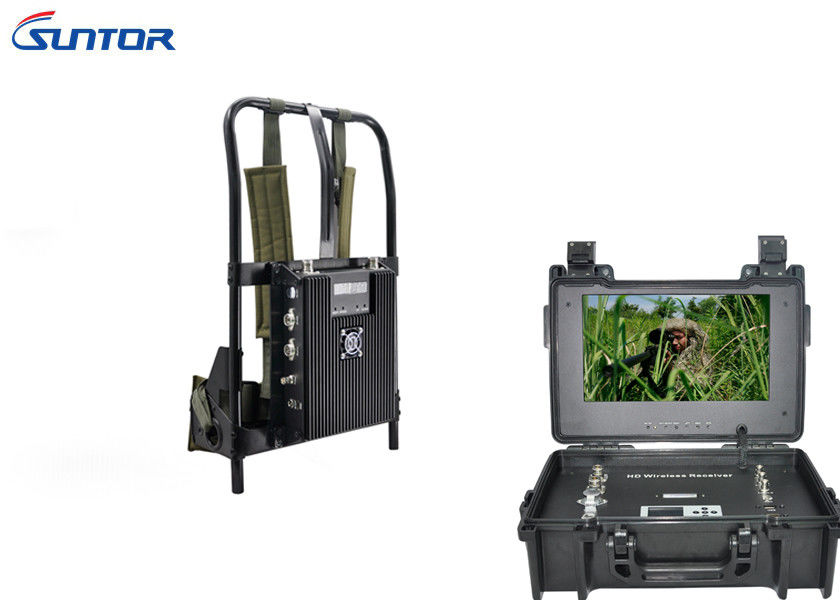

Wireless Video Sender , Digital Audio Video Transmission Channel AES256 Encrypted

  • Wireless Video Sender , Digital Audio Video Transmission Channel AES256 Encrypted
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9502T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power DC 12V/3.5A High Definition Multimedia Interface Output High Definition Multimedia Interface-A-type
CVBS Output CVBS Video Output Environment Ground To Ground NLOS/LOS
IFFT 2K/8K Guard Interval 1/4, 1/8, 1/16, 1/32
Bandwidth 2/3/4/5/6/7/8 MHz Weight 1.6KG
High Light

long range video transmitter

,

wireless hd video transmitter
Leave a Message
Product Description

Wireless Video Sender , Digital Audio Video Transmission Channel AES256 Encrypted





Specification Sheet





Introduction



ST9502T use the core of 4th generation mobile communication COFDM multi carrier modulation technology and efficient innovation MPEG2/4/H.264 compressin coding method which make it can operate in a variety of transmission bandiwidths and frequencies allowing the user to trade off image quality against range.
These products support narrow band(1.25Mhz and 2.5Mhz) and full DVB-T compliante(6,7 or 8Mhz) channels.
The line has specifically been developed for worldwide customers in the law en-forcement and markets.





Features



  • High Definition Multimedia Interface and CVBS video interface, 1920P*1080P and PAL/NTSC high quality video
  • Strong safety with AES 256 bit encryption
  • Integrative design of back-pack, 10A battery, and robust transmitter
  • Compact design, low consumption and low latency
  • Support NLOS and fast moving environments but stable signals transmission
  • Easy operation by digital panel configuration, and LCD display
  • Designed in -grade level
  • Support transmitter function customized (including video interface, RF power, frequency, Battery volume, add data & two way audio function etc.)



Wireless Video Sender , Digital Audio Video Transmission Channel AES256 Encrypted 0

Wireless Video Sender , Digital Audio Video Transmission Channel AES256 Encrypted 1

Voltage DC12V
Current 3.5A
Audio input Stereo left & right channels
Video input High Definition Multimedia Interface and CVBS
Bandwidth 2/4/6/8MHz
Frequency 300MHz-900MHz (subdivided)
Modulation COFDM 2K
Constellation QPSK, 16QAM, 64QAM
RF power 5W
Encryption AES128
FEC 1/2, 2/3, 3/4, 7/8
Guard interval 1/32, 1/16, 1/8, 1/4
Video coding H.264
Video resolution 1920*1080P
Parameter setting User manually setting through LCD display panel
Antenna port UHF
Operating Temperature -25°C ~ 55°C
Storage Temperature -40°C ~ 70°C
Dimension 270*165*65mm(transmitter only)
Weight 1.2kg(transmitter only)
