audio video UGV / robot COFDM Video Transmitter, 1w wireless video audio transmitter

  • audio video UGV / robot COFDM Video Transmitter, 1w wireless video audio transmitter
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST5200W1
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency Range 160MHz~860MHz
Output Power 1W RF Bandwidth 2/4/6/8 MHz
Working Voltage DC12V Video Input/Output High Definition Multimedia Interface/CVBS
Weight 136g NLOS Range 200-500 Meters
High Light

wireless video transmitter and receiver

,

audio video transmitter

,

1W COFDM Transmitter
Leave a Message
Product Description

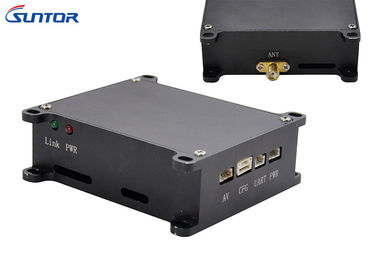

Long range UGV / robot COFDM Video Transmitter , 1w wireless video audio transmitter



ST5200W1 Specs Sheet.pdf



Introduction:
Mini COFDM wireless radio transmitter is with the core of mobile communication technology COFDM (multi-carrier modulation technique). COFDM wireless transmitter can transmit high quality and stable full HD digital video signal under the condition of high speed mobile and heavy building non-visual transmission in city environment.



COFDM wireless transmitter supports full HD 1080P H.264 encoding format and High Definition Multimedia Interface, stereo balance audio input and narrowband transmission system.



Features:

  • Hand-held design with light weight; Video transmitting while filming;
  • Small dimension and light weight (only 136g) with great convenience;
  • Full HD video transmission with video resolution up-to 1080i/P;
  • COFDM modulation and H.264 high-level video compression;
  • Frequency and bandwidth adjustable to avoid electromagnetic interference;
  • RF power adjustable to realize long range;
  • Multiple receiving systems optional for diversity applications;



COFDM transmission system advantages:

  • Long range transmission distance
  • Real-time transmission systems
  • Delay time very short less than 80ms
  • Perfect image quality, brighter colors and image smoothness. (we will support video to demonstration it if you sent inquiry)



Tx Parameters

Power
Working Voltage DC12V
Working Current 2A
RF
Working Frequency 160MHz~860MHz
Output Power 30dBm
RF Bandwidth 2/4/6/8 MHz
Modulation COFDM
Serial Port
Data Half-duplex transparent data transmission(OSD UART)
Serial Port Config UART
System
Convolutional Encode ratio 1/2, 2/3, 3/4, 5/6, 7/8
Modulation QPSK/QAM16/QAM64
IFFT 2K/8K
Guard Interval 1/4, 1/8, 1/16, 1/32
High Definition Multimedia Interface
Version High Definition Multimedia Interface mini
Resolution Ratio Max 1080*1920/60P
Video Encoding H.264
CVBS
Video Encoding H.264
Video Input Format PAL/NTSC
Encryption
Encryption AES 256
Antenna
Omni Antenna SMA
Weight & Dimension
Weight 136g
Dimension 75*65*28mm
